With "Clear all" and "Set all" you can delete or set a single bit for each AS-i slave
address.
empty field: LOS-bit deleted
X: LOS-bit set
6.3 IO + Param. Test (Testing AS
-
i In- and Outputs as well as
AS
-
i Parameters)

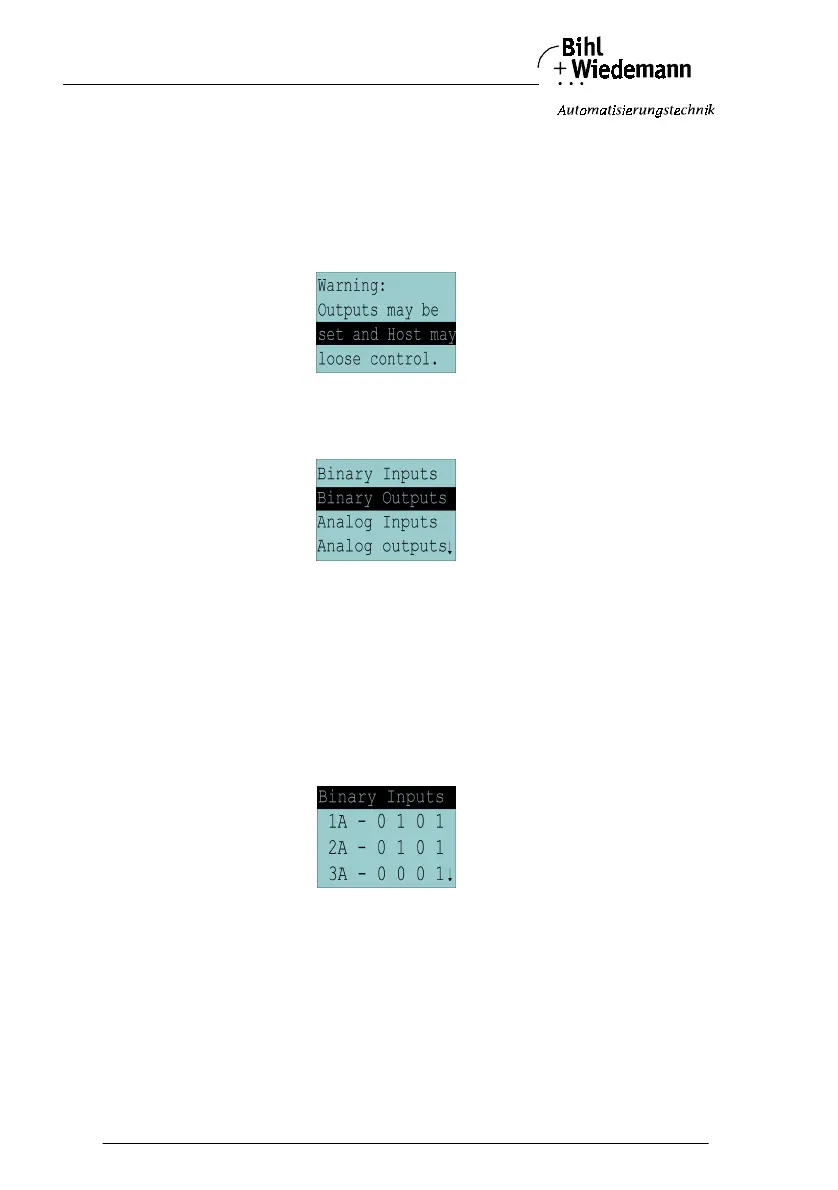

Before you switch to this menu the following warning occurs:
"Warning: Outputs may be set and Host may loose control."
The menue "IO + Param.Test" enables you to choose one of the following sub-
menues:
•Binary Inputs
• Binary Outputs
• Analog Inputs
• Analog Outputs
• Parameter
6.3.1 Binary Inputs
This list shows the state of the binary inputs for all AS
-
i slaves.
0: input deleted
1: input set
To Next Page
