AS-i/PROFIBUS Gateway Operating by Full-graphic Display
Subject to reasonable modifications due to technical advances Copyright Bihl+Wiedemann, Printed in Germany
Bihl+Wiedemann GmbH · D-68199 Mannheim · Phone +49-621-339960 · Fax +49-621-3392239 · Internet http://www.bihl-wiedemann.de
issue date 7.1.2002
47
empty field: no error
X: AS
-
i slave released a configuration error.

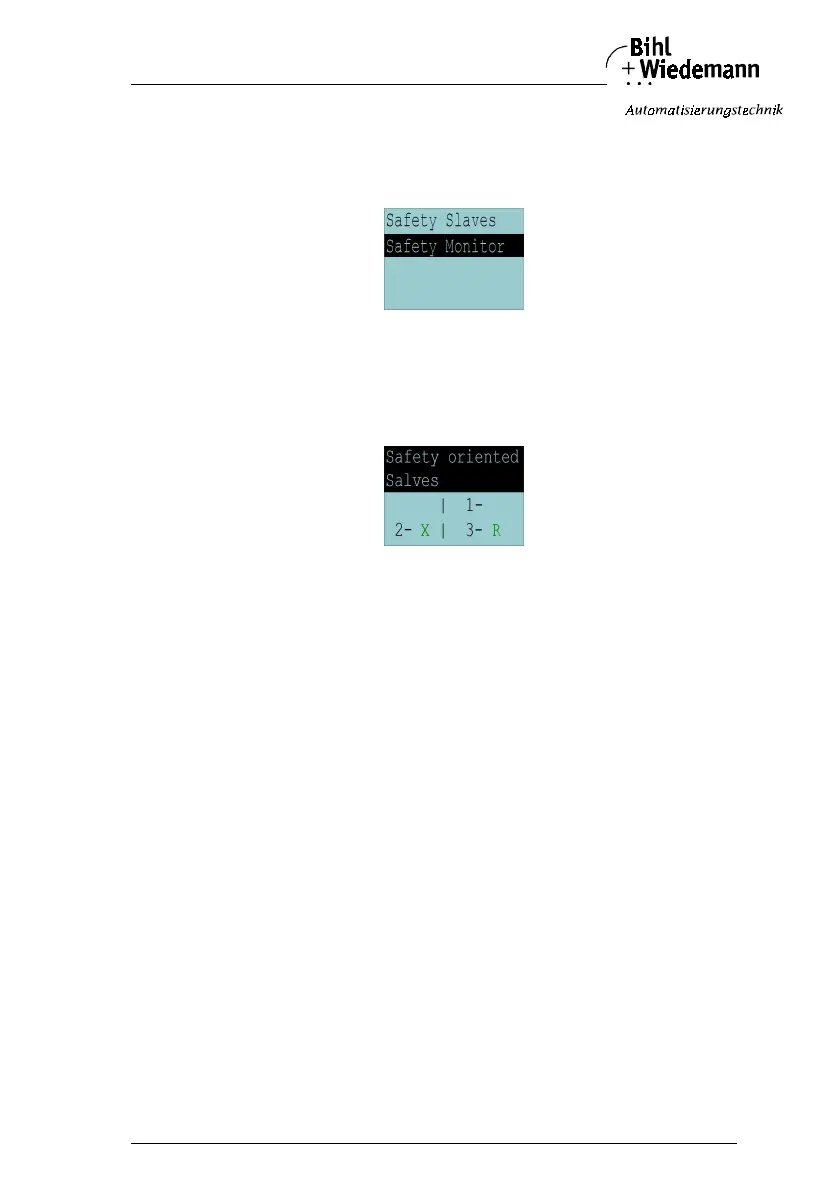

6.6 AS-i Safety
This function shows information about the safety slaves and the safety monitor:
• Safety Slaves
• Safety Monitor
6.6.1 Safety Slaves
This list shows the "safety-directed input slaves" ("AS-i Safety at Work"), by which
the safety function is released
empty field
X: o.k.
R: released
In this list are entered that slaves according to profile S-7.B or S-0.B, by which are
deleted all 4 bits in the IDI. Therefore slaves with 2 contacts are entered only then,
if both contacts are released.
Because the safety function of a safety-directed input slave can be released, if the
slave does exchange no data with the AS-i master, the list may be utilized only in
combination with the ec-flags.
For the building of the list CDI and IDI are utilized only. Safety-directed slaves,
which are projected but not existing, and slaves, which are existing but sending a
wrong code, are entered therfore not here.
This list is not acualizied into the master permanently, but only it is made out of the
image of the digital inputus IDI, if required.
