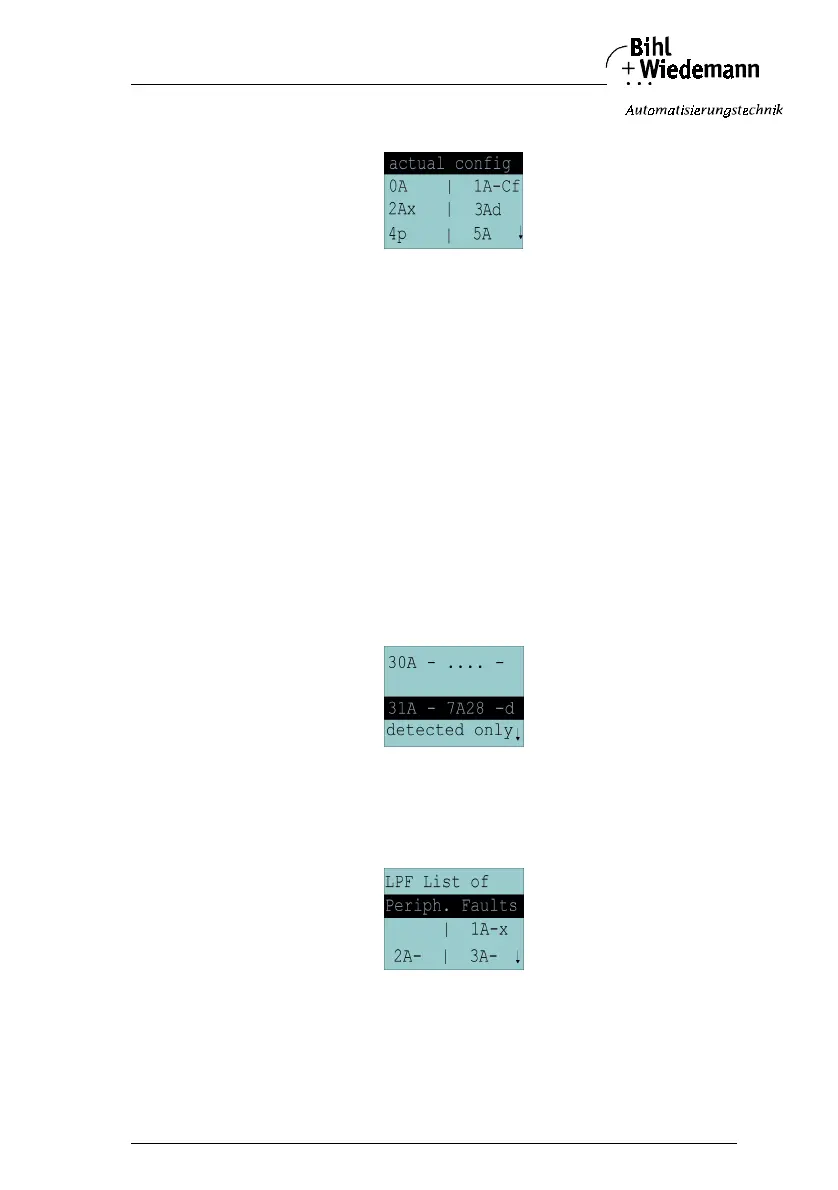

6.4.2 Actual Config (Actual Configuration)
This function shows the state of the actual configuration of the individual AS
-
i
slaves.
At the end of the list there is a help text that describes the abbreviations:
X (O.K.): The configuration data of the detected AS
-
i slave matches the
projected configuration data.
D (Detected Only): An AS
-
i slave is detected at this address, but not projected.
P (Projected Only):An AS
-
i slave is projected at this address, but not detected.
C (Type Conflict): The configuration data of the detected AS
-
i slave does not
match the projected configuration data. The actual detected
configuration of the connected AS
-
i slave is displayed.
F (Periph. Fault): The AS
-
i slave has a peripheral fault.
After selecting the desired AS
-
i slave address the values for the actual configura-
tion data are displayed behind the respective address in the following order:
IO (I/O-configuration) ID (ID-configuration) xID1 (extended ID1)
xID2 (extended ID2).
Furthermore the state of the configuration is displayed in plaintext.
If no AS
-
i slave is detected and no AS
-
i slave is projected at a certain address,
there are four dots instead of the configuration data.
6.4.3 LPF (List of Periphery Faults)
The list shows AS
-
i slaves, which have released a peripheral fault.
empty field: periphery O.K.
X: peripheral fault
