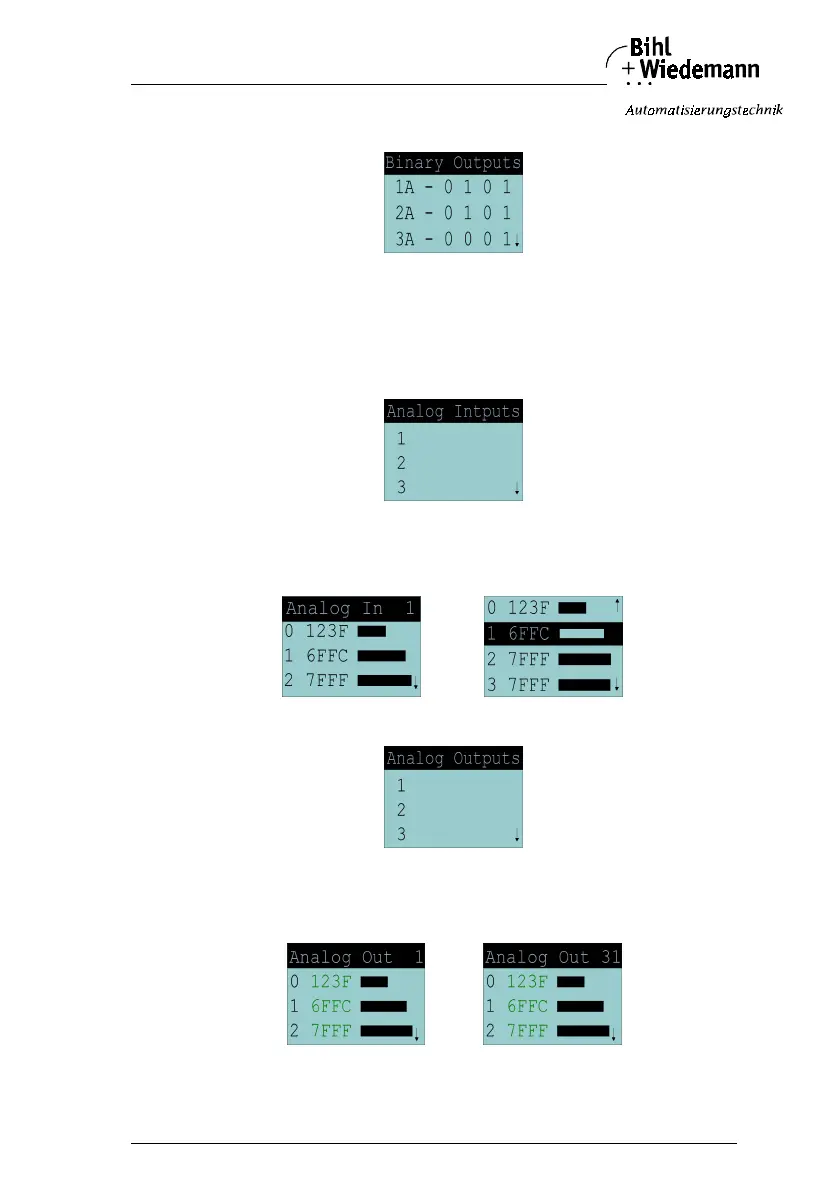

6.3.2 Binary Outputs
This function shows the state of the binary outputs for all AS
-
i slaves.
0: output deleted
1: output set
The binary outputs can be changed after selecting the desired AS
-
i slave.
6.3.3 Analog Inputs
This function shows the state of the analog inputs for all AS
-
i slaves.
The display is as follows:
AS
-
i slave address, hexadecimal 16-bit-value, bar display
6.3.4 Analog Outputs
This function shows the state of the analog outputs for all AS
-
i slaves.
The display is as follows:
AS
-
i slave address, hexadecimal 16-bit-value, bar display
The analog outputs can be changed after selecting the desired AS
-
i slave.
