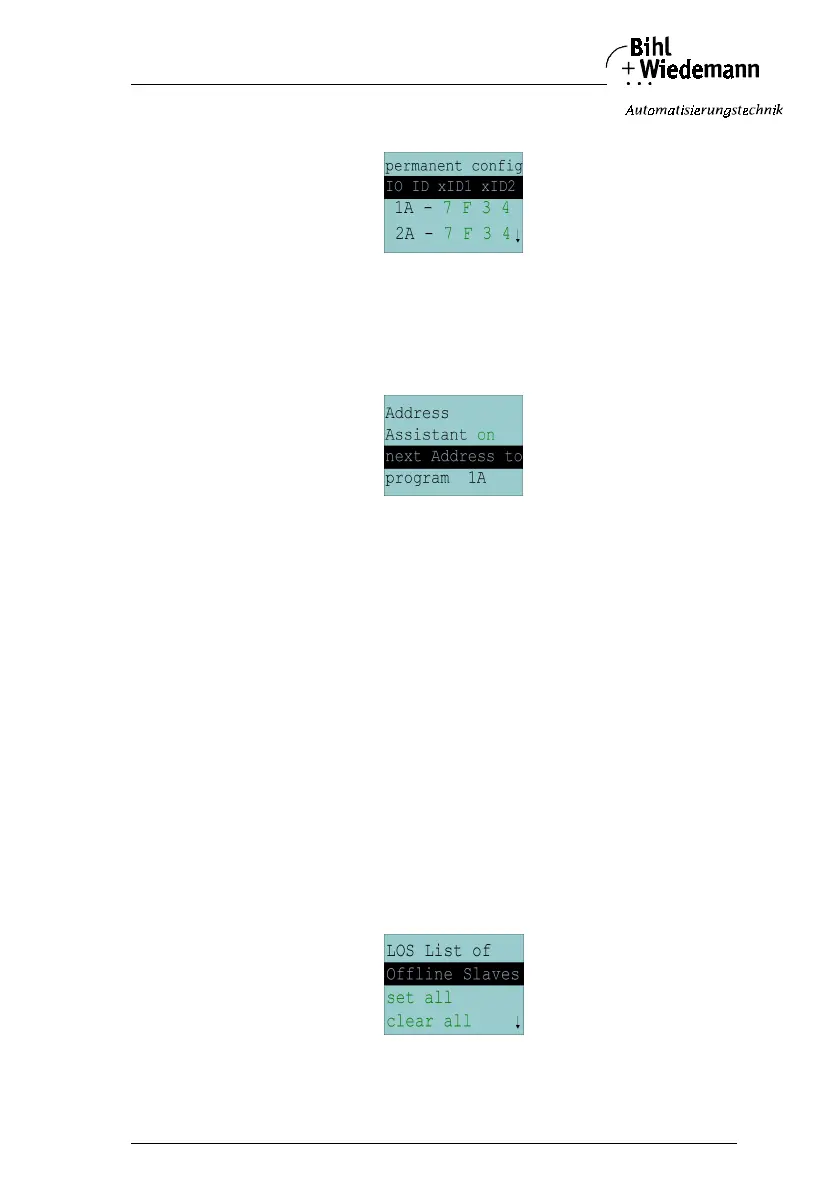

6.2.7 Permanent Cfg (Projected Configuration Data)
With this function you can set the projected configuration data. The values for the
configuration data are displayed behind the slave address in the following order:
IO (I/O-configuration) ID (ID-configuration) xID1 (extended ID1)
xID2 (extended ID2).
6.2.8 Addr. Assistant (Address Assistent)
The AS
-
i address assistant helps you with the fast setting up of the AS
-
i circuit.
Once you have stored an AS
-
i configuration to the master, the AS
-
i address assis-
tant addresses a virgin AS
-
i slaves with address zero to the desired address.
Selecting "Assistant On" or "Assistant off" switches the AS
-
i address assistant off
or on. The actual state of the AS
-
i address assistant is displayed:
Assistant on: AS
-
i address assistant is switched on.
Assistant off: AS
-
i address assistant is switched off.
Procedure:
1. Store an AS
-
i configuration to the device. You can do this very comfortably with
the Windows-software AS
-
i Control Tools (Master/Write configuration to the
AS
-
i Master ...). Or directly with the fullgraphic display (see chapter 6.2.7).
2. All AS
-
i slaves have to be addressed to 0 or to the desired address. The slaves
must be disconnected from the AS
-
i circuit.
3. Start the AS
-
i address assistant.
4. Now connect the AS
-
i slaves one after the other exactly in the order that the AS
-
i
address assistant displays (The last line on the display of the AS
-
i address as-
sistant shows which AS
-
i slave has to be connected next).
6.2.9 LOS (List of Offline-Slaves)
See also "Advanced Diagnostics for AS-i Masters", chapter 6.
