3
1.3 Product Dimensions
The PVS10005, PVS60085, and PVS60085MR power supply’s dimensions
are approximately: 420mm (16.54in) x 88mm (3.46in) x 532mm
(20.95in) (WxHxD). These 2U supplies are designed to fit in a standard
19-inch rackmount.
Note: All dimensions in the figures below are measured in millimeters (mm).

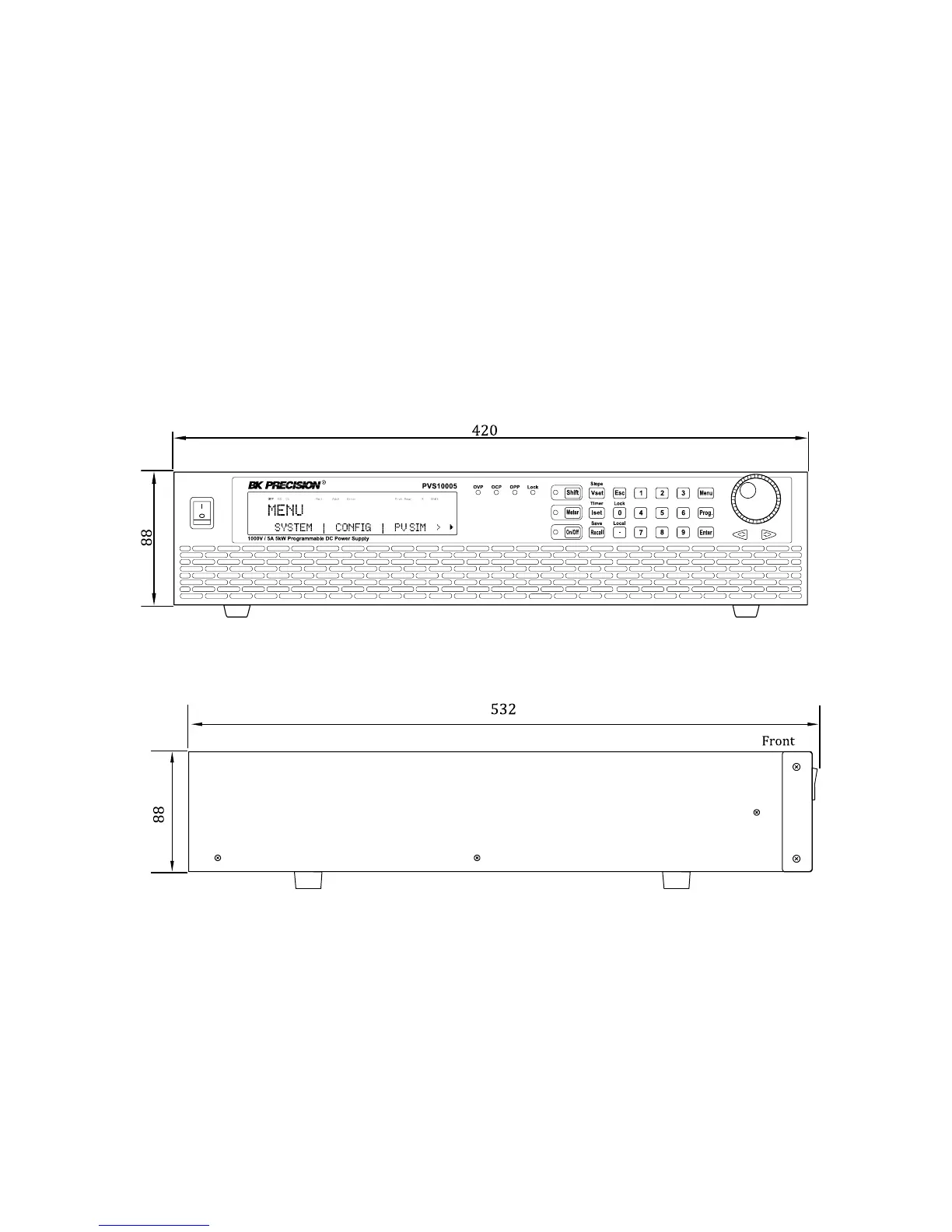

Figure 1.1 – Front Panel Dimensions
Figure 1.2 – Side Panel Dimensions
