1.5 Keypad Overview

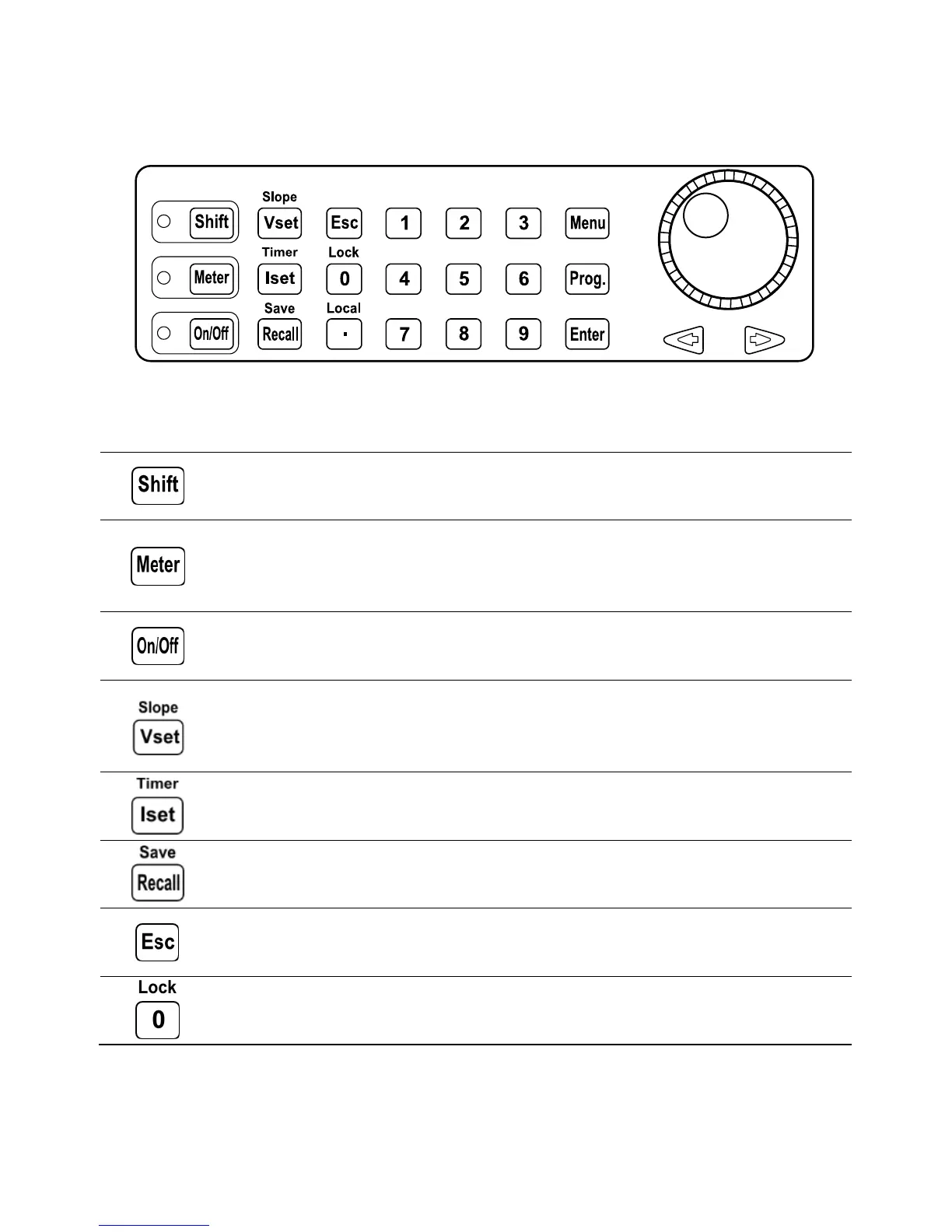

Figure 1.4 – Keypad Overview
Keypad Description
Shift key
Enables access to secondary functions (Labeled in blue)
Meter display button
Toggles display between set and measured voltage and
current.
On/Off
Controls the output state.
Vset / Slope button
Configures output voltage or sets the rise and fall times of
the output voltage.
Iset / Timer button
Configures output current or setup the timer setting.
Recall / Save button
Saves and recalls instrument settings.
Escape button
Exits menu settings.
Zero / Lock button
Inputs a value of zero or locks the front panel buttons.
