cabinet. Rack mount brackets must be assembled before mounting the
unit in a rack. Refer to the following figure to assemble the rack mount
brackets.

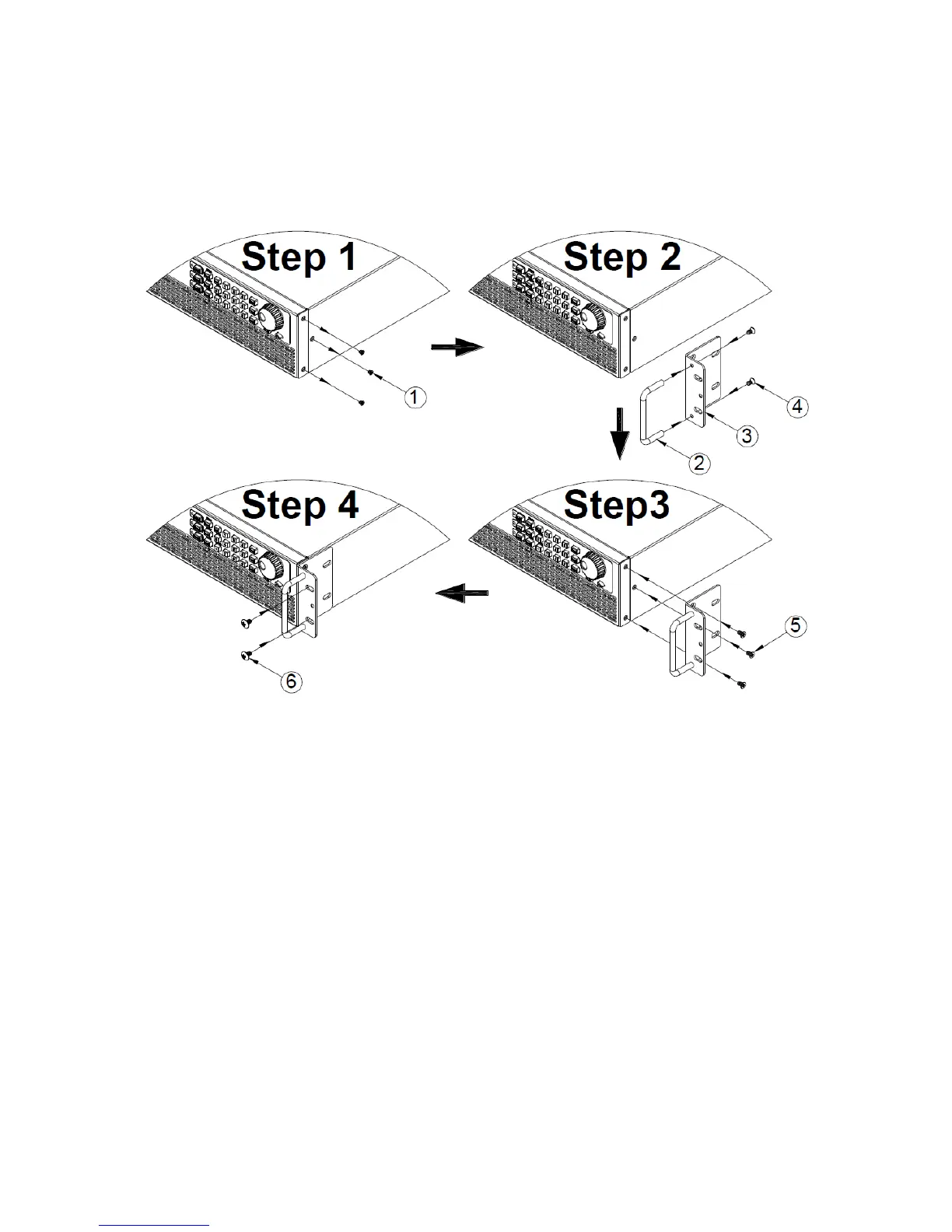

Figure 2.3 – Rack Mount Bracket Assembly
2.3 Output Connections
The main DC output terminal is a screw type terminal block located in
the rear panel.
Due to the high current rating of the power supply, proper wire sizes are
necessary for safe connectivity and to prevent wires from overheating.
Refer to the below table as a reference for proper wire sizes according
to the amount of current used for operation:
To Next Page
