BK Precision PVS10005 User Manual

53

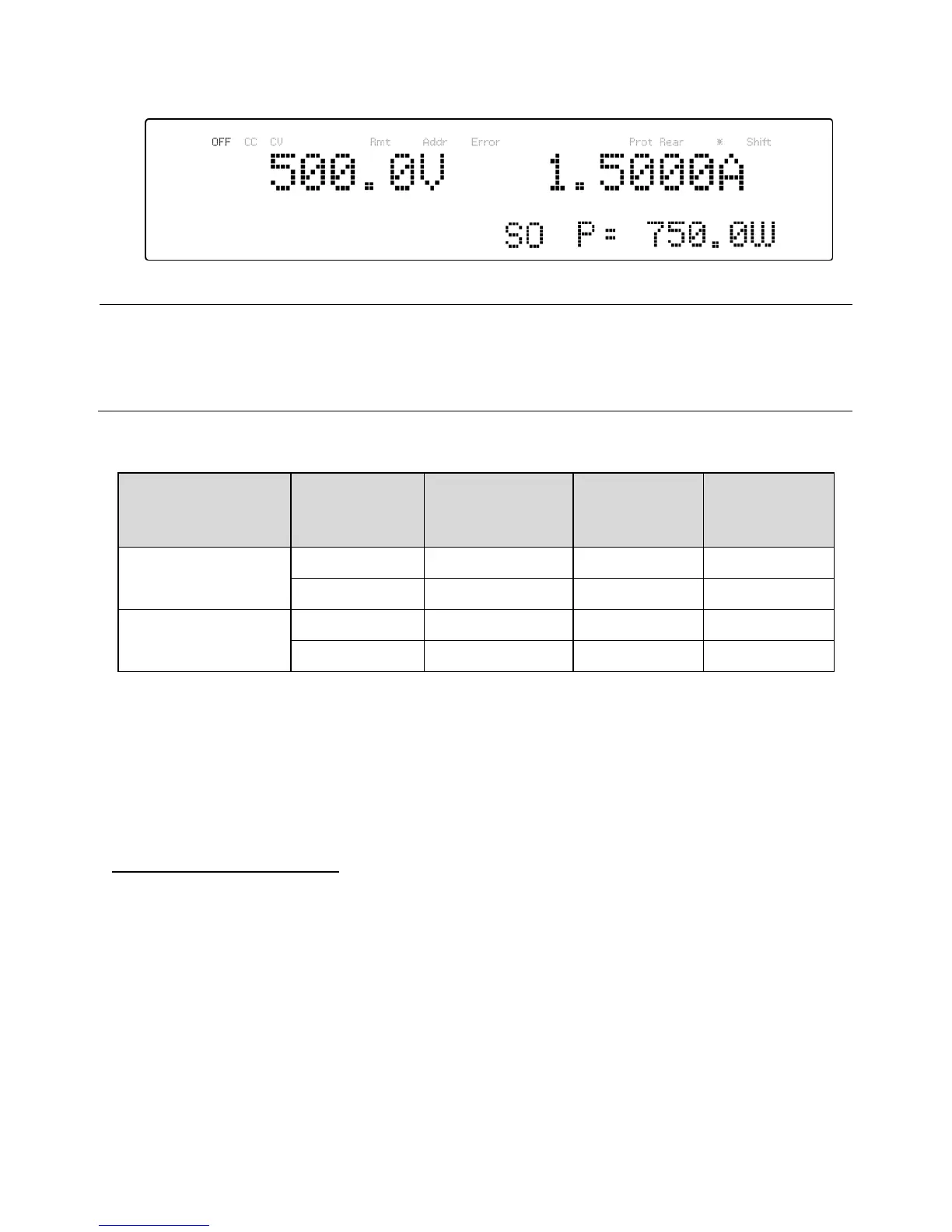

Note: Shut off can only occur when the power supply receives an
edge trigger. Maintaining that pin constantly at a high level or
low level will not trigger a shut off.
EXTCTRL
ENABLE
EXTCTRL
SHUT-OFF
Shutoff
(Pin 15)
Output
Display
NOT ACTIVE
OFF/Low
Not Active
ON/OFF
---
ON/Low
Not Active
ON/OFF
---
ACTIVE
OFF/Low
High to low
OFF
SO
ON/Low
Low to High
OFF
SO
Parallel Operation
Connection and Setup
The PVS power supplies can be connected in parallel to increase the
power output capability as well as the output current. Up to four units
of the same model can be connected for output up to 20,400 W (max).
To connect four units in parallel, follow the diagram shown below:
