54

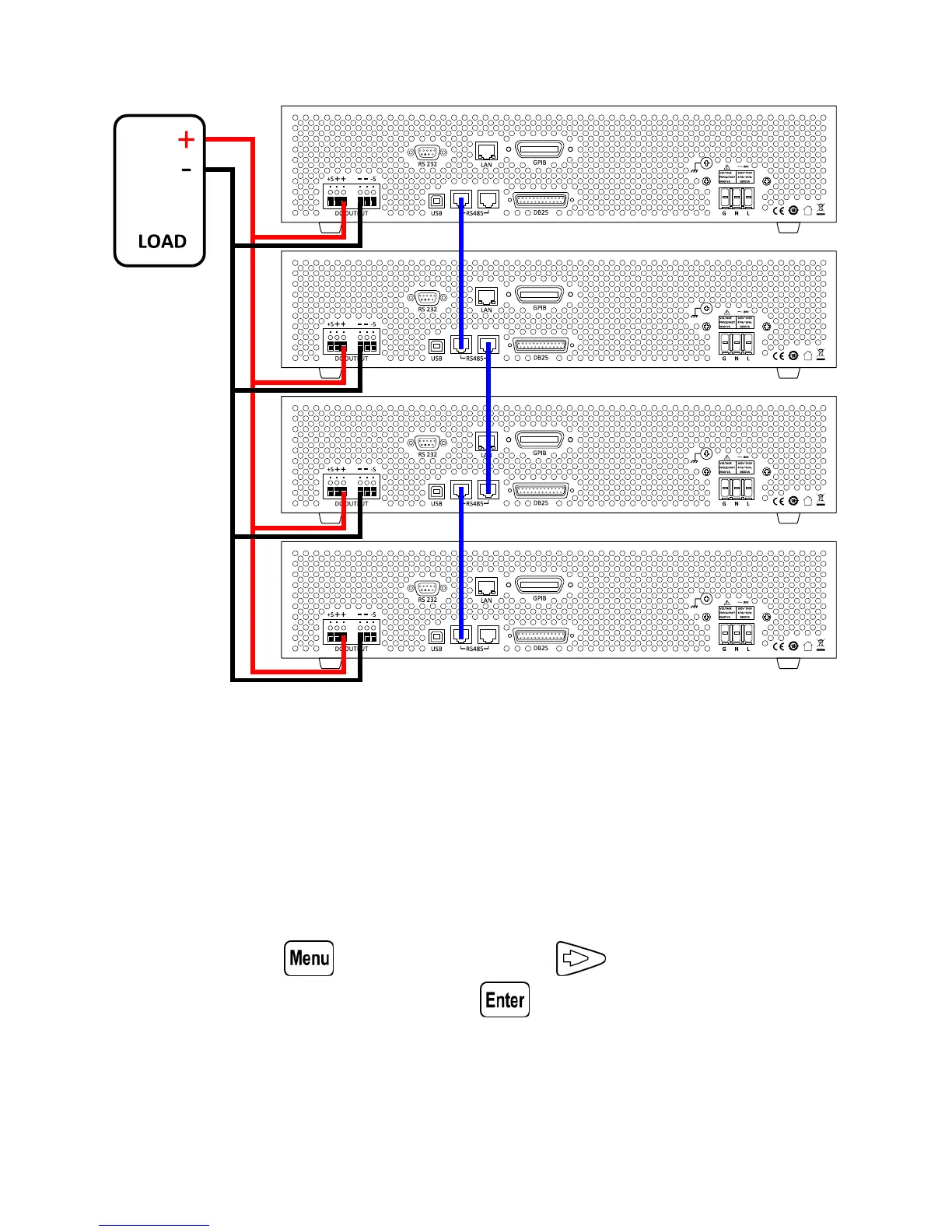

Figure 3.10 – Parallel Connection Diagram
After wiring is complete, configure one of the supplies as the Master
and the other three as Slave A, B, and C. After one of the supplies is
configured to be the Master, it will start searching for all Slaves that are
connected to the Master. To operate correctly, the user must set up the
Slaves before the Master. Follow the steps below to set a supply to
master or slave mode.
1. Press the button and press the button one time until
CONFIG is blinking and press .
