65
example, if the xx is 01 and yy is 03, this means that there are three
repeats of this program and it is now running the first repeat.

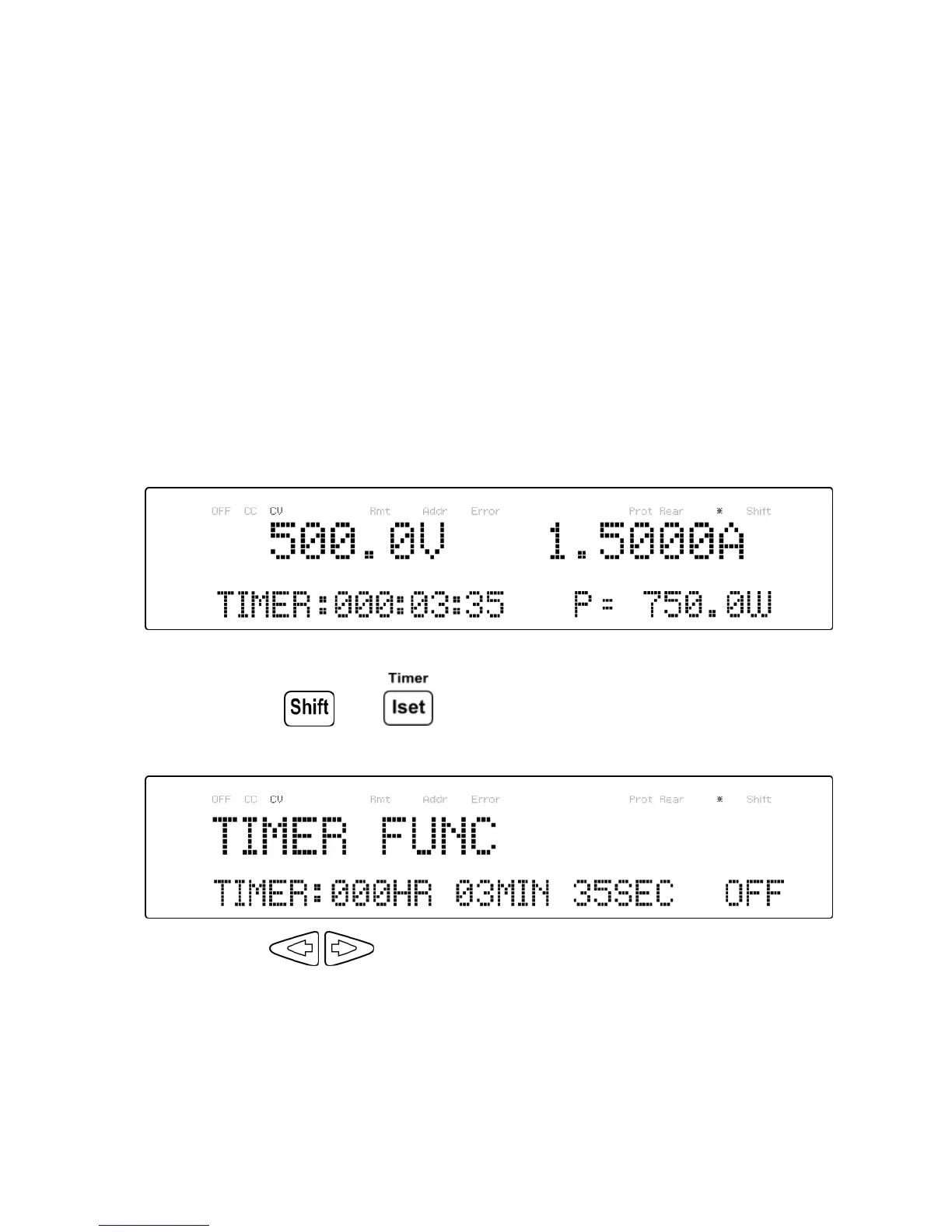

3.9 Timer Function
The timer function is a countdown clock, which allows the user to setup
how long the output will be enabled when it is initially turned ON.
When it is running, a clock on the display counts down until it reaches
zero and the output will turn OFF. An * indicator on the display will flash
to indicate the timer is running. When the timer is running, the
following screen will be displayed:
To activate the timer function, follow the steps below:
1. Press the and buttons to enter the timer setup screen.
The following will be displayed:
2. Use the buttons to move the cursor to the desired
parameter (hour, minute, and second) and use the keypad to
change the parameter values.
To Next Page
