724-746-5500 | blackbox.com Page 24
!
%
CDS% L(/3(('%'(5%FB&%%
The LES1408A, LES1416A, LES1432A and LES1448A console servers also have an internal CDMA
cellular modem requiring an external antenna connection.
The LES1308A, LES1316A, LES1332A and LES1348A console servers have an internal GSM cellular
modem that requires a SIM card and an external antenna.
Before powering on the console server:

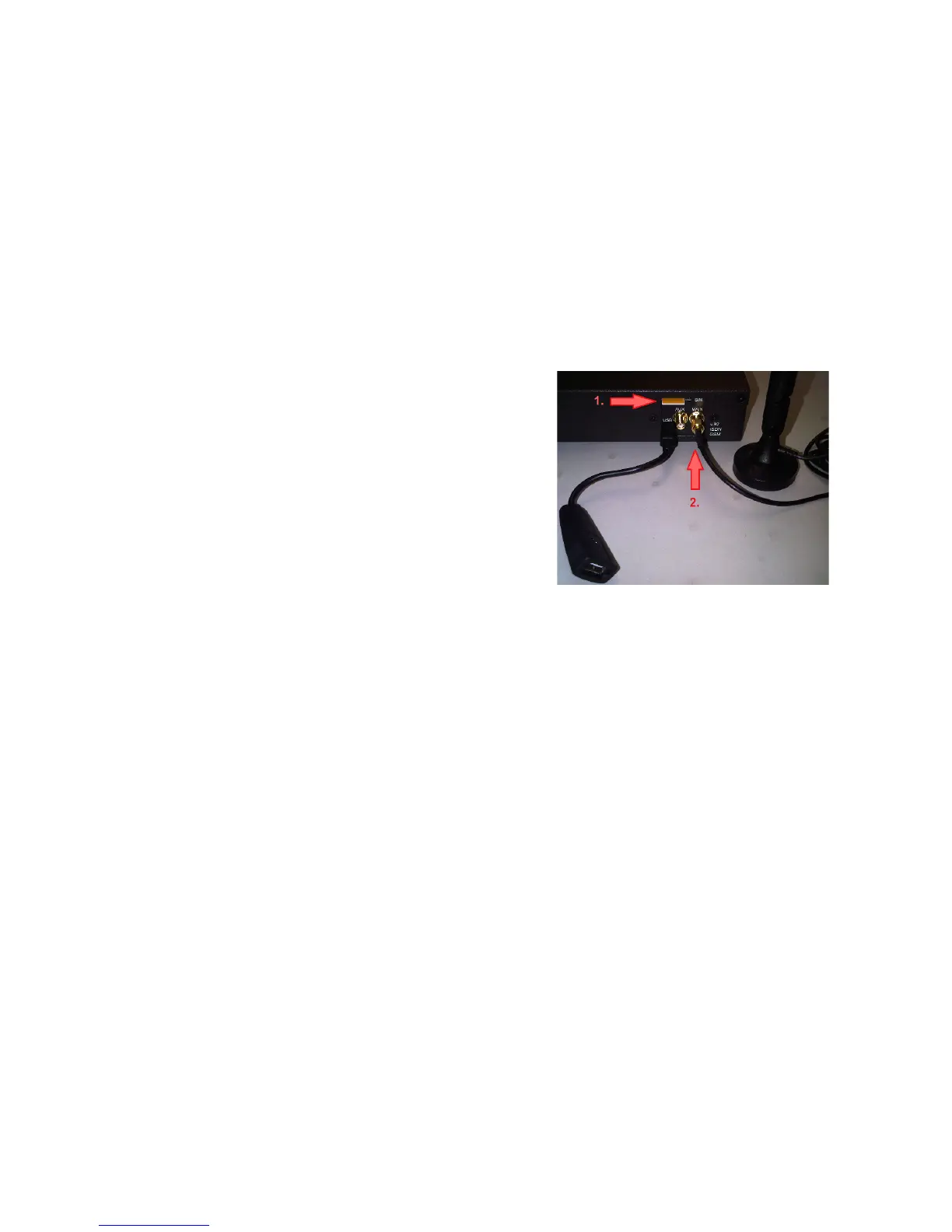

Screw the external antenna coax cable onto the MAIN
screw mount SMA connector on the rear of the
console server (2).
The AUX connector can be used either for receive
diversity or for GPS.
Your GSM cellular carrier will provide you with a SIM
card. Insert the SIM card (1.) and it will lock into place.
Take care to insert SIM card with contacts facing
downwards.
