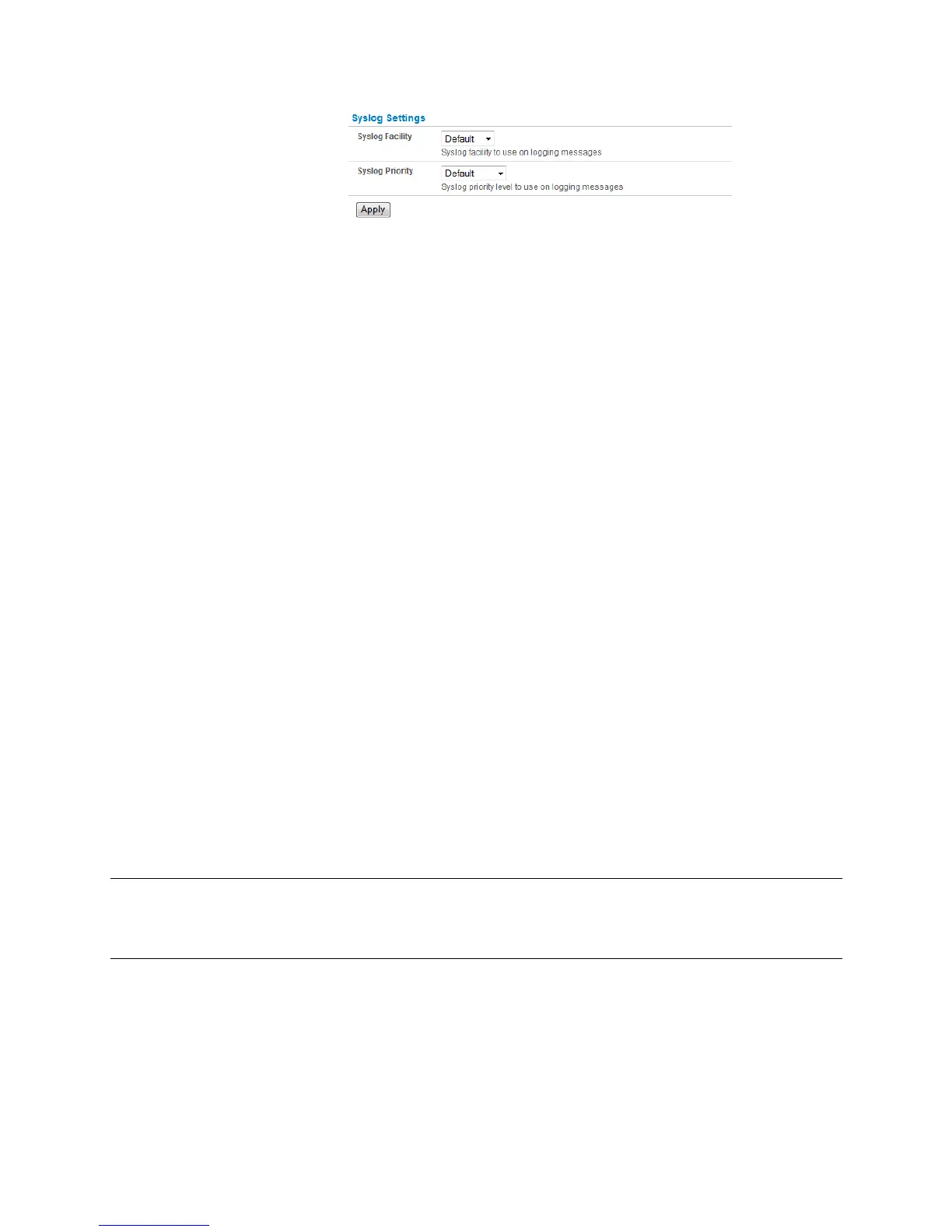

[2(!'9+ON.'E!$7!3#'!62ON-3'(!+33+6#'5!32!%'($+.!N2(3!G!%#2-.5!,'<'(!%',5!+,13#$,4!2-3!2,!$3%!%'($+.!
62,%2.'!N2(3E!3#'!231.#.$4(54"(!6+,!%'3!3#'!Z'A#*#/1!72(!3#+3!N2(3!32!%" ! 5%K !=%"!5%K'**'%"! 5%a !+('!72(!%$3'!
.26+.!<+.- '% JE!+ ,5 !3 # '!;,#0,#/1!32!!(.4.!5%M!D3!3#$%!N( $2( $31E!$7!3# ' !!"#$"%&'$&()&(!%1%.24!%'(<'(!52'%!('6'$<'!+!
O'%%+4'E!$3!/$..!+-32O+3$6+..1!(+$%'!+,!+.'(3M!L'7'(!32!M6594&('aW2%&(4$'\'C"//.#/*'
4.1.8 NMEA Streaming
The LES1204A-3G, LES1300A and LES1400A can provide GPS NMEA data streaming from the internal
GPS /cellular modem. This data stream presents as a serial data steam on port 5 on the LES1204A-3G
model. For the LES1300A and LES1400A models with an internal cellular modem, the NMEA data stream
presents on ports 9/17/33/49 for the LES1308/16/32/48 models.
The Common Settings (baud rate etc.) are ignored when configuring the NMEA “serial port”. However,
you can specify the Fix Frequency (i.e. this GPS fix rate determines how often GPS fixes are obtained).
You can also apply all the Console Server Mode, Syslog, and Serial Bridging settings to this port.
You can also use pmshell, webshell, SSH, RFC2217 or RawTCP to access the stream.
4.1.9 Cisco USB console connection
The LES1508A, LES1516A, LES1532A, and LES1548A console servers support direct USB 2.0
connection to one or two Cisco USB console ports (in addition to the traditional RS-232 serial console
port connections).
With such a USB console connection, users can send IOS commands through the USB console port
remotely (using a browser and the console server’s built-in AJAX terminal) or monitor messages from the
Cisco USB console ports and take rule book actions (using the console server’s built-in Auto-Response
capabilities).
For configuration and control, these USB consoles are presented as new “serial ports”!2,!3#'!F3,#'*%_%
@3/G0,H]%F3,#'*%;0,/!O',-. For an LES1508A, any Cisco USB console ports would present as Port 9
and 10.
Common Settings, such baud rate, are ignored when configuring the Cisco USB “serial port”. However
you can apply all the Console Server Mode, Syslog, and Serial Bridging settings to this port.
Note: The Cisco USB console is auto detected and the new “serial port” numbers are created. However
it must be manually configured on initial connection. Any subsequent USB console disconnection
is auto-detected. USB console re-connection on the same physical USB port will also be auto-
detected, but only if the console server has been power cycled.
!
!
%
%
