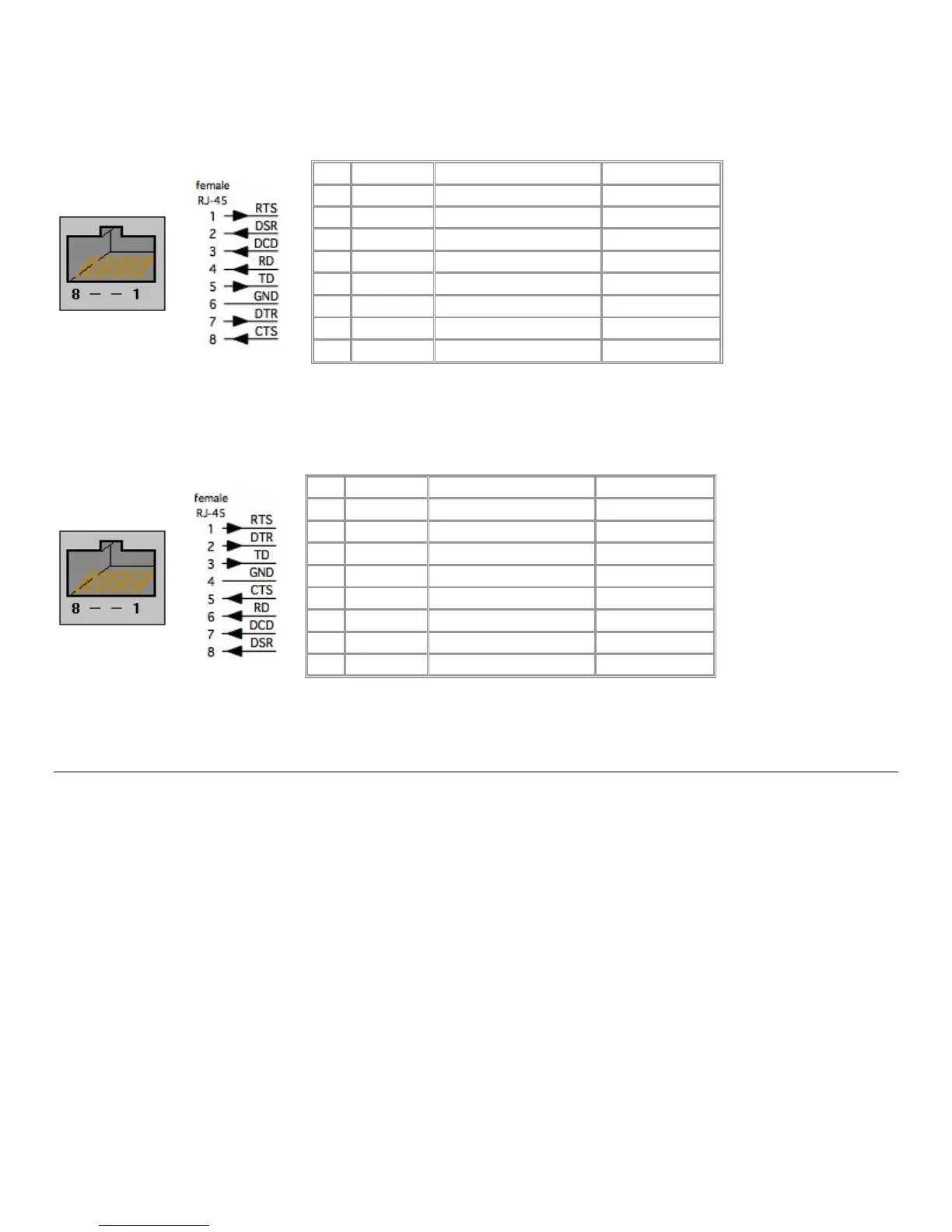

Classic (X0) RJ-45 pinout
This is the same RJ45 pinout as the Avocent /Equinox brand console server:
PIN
SIGNAL
DEFINITION
DIRECTION
1
RTS
Request To Send
Output
2
DSR
Data Set Ready
Input
3
DCD
Data Carrier Detect
Input
4
RXD
Receive Data
Input
5
TXD
Transmit DataCTS
Output
6
GND
Signal Ground
NA
7
DTR
Data Terminal Ready
Output
8
CTS
Clear To Send
Input
Cisco Rolled RJ-45 pinout (option -X1)
Easy to replace Avocent/Cyclades products, for use with rolled RJ-45 cable:
PIN
SIGNAL
DEFINITION
DIRECTION
1
RTS
Request To Send
Output
2
DTR
Data Terminal Ready
Output
3
TXD
Transmit Data
Output
4
GND
Signal Ground
NA
5
CTS
Clear To Send
Input
6
RXD
Receive Data
Input
7
DCD
Data Carrier Detect
Input
8
DSR
Data Set Ready
Input
Local Console Port
Console servers with a dedicated LOCAL console/modem port use a standard DB9 connector for this port.
To connect to the LOCAL modem/console port on the console servers using a computer or terminal device use the DB9 F
to RJ-45 or DB25 M to RJ-45 adapters with standard UTP Cat 5 cable.
To connect the LOCAL console ports to modems (for out of band access) use the adapter with standard UTP Cat 5 cable.
Each Black Box console server is supplied with UTP Cat 5 cables.
