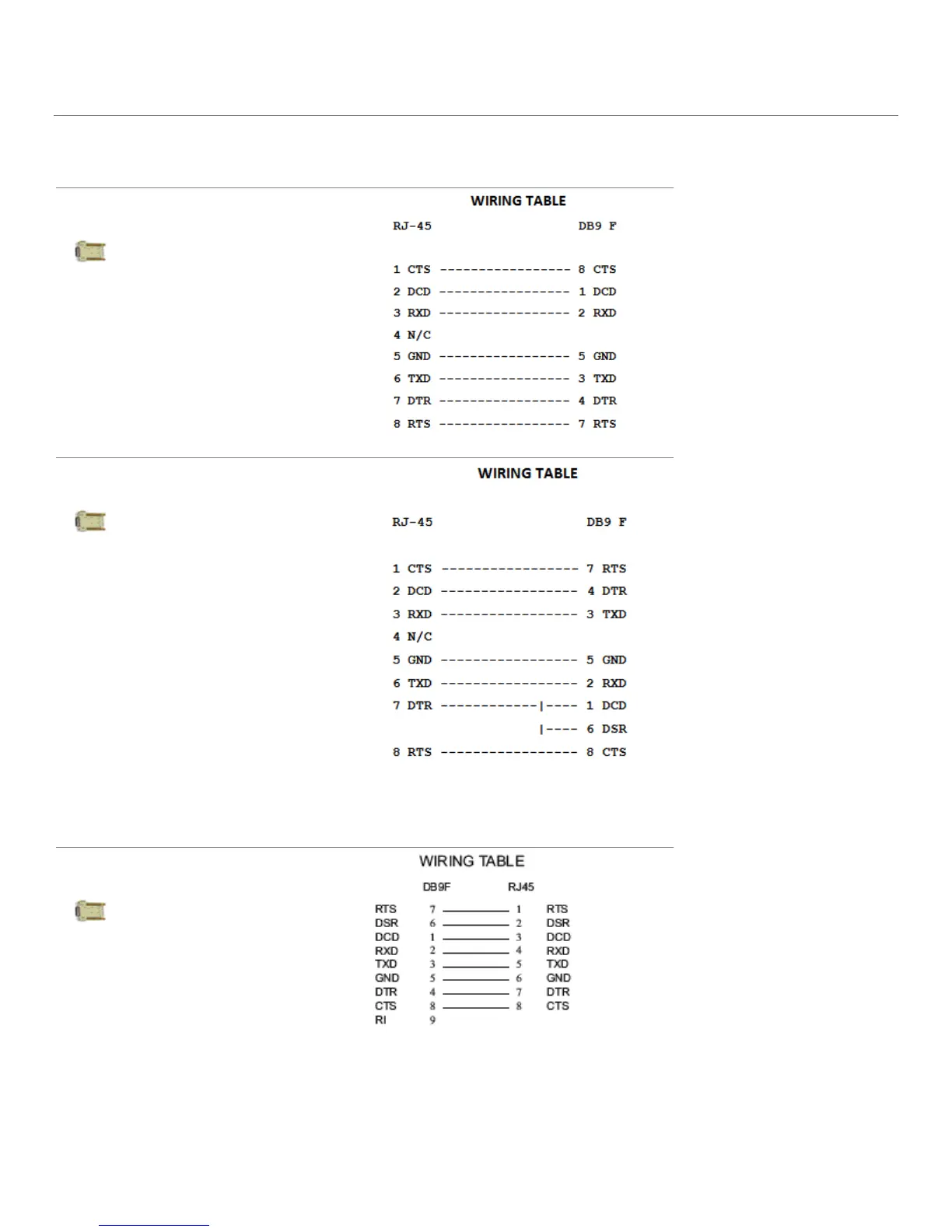

Connectors included in console server

The LES1508A, LES1516A, LES1532A, LES1548A have the Cisco pinout by default and ship with “cross-over”/“straight”

RJ-45-DB9 connectors:

DB9F-RJ45S straight

connector

Part #

LES1516A-9FT

DB9F-RJ45S cross-

over connector

The LES1200/LES1300/LES1400 all have the Console server Classic pinout and ship with a “cross-over” and a “straight”

RJ45-DB9 connector for connecting to other vendor’s products: E

DB9F-RJ45S straight

connector
