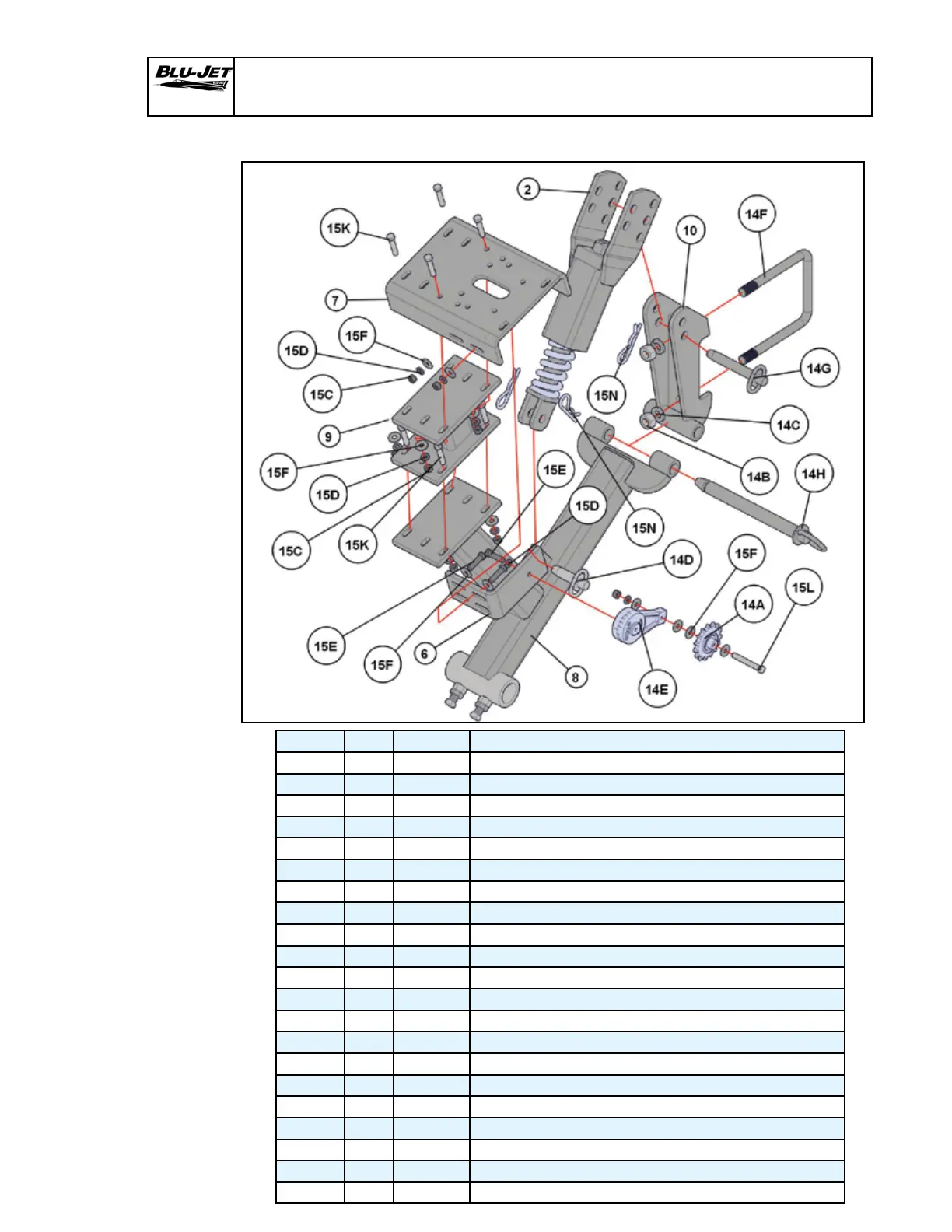

GDI 200 With Pump Distribution (Rear Mount)
Parts (Bundle 20200119)
BOM ID Qty Item No Description
2 1 AAM2089 ASSEMBLY, SPRING ADJUSTER
6 1 AM2165 BRACKET, ROTARY TENSION ARM MOUNT
7 1 AM2180 UNIVERSAL PUMP MOUNTING PLATE
8 1 AM2181 GROUND DRIVE WHEEL FRAME
9 1 AM3326 BRACKET, PUMP EXTENSION
10 1 AM4856 BRACKET, MOUNTING, 6”
14A 1 AP2382 SPROCKET, IDLER, 15T #50 CHAIN, WITH CLEVIS ADAPTER
14B 2 BP3034 NUT, HEX, 3/4”-10, GRADE 2, PLATED
14C 2 BP3035 WASHER, LOCK, 3/4”, PLATED
14D 1 BP3070 PIN, 3/4” X 2”
14E 1 BP3239 TENSIONER, RT1002
14F 1 BP3350 U-BOLT, 3/4”-10 X 6”W X 7-11/16”L, PLATED
14G 1 BP3502 PIN, 3/4” X 4-1/2”
14H 1 BP3510 PIN, 1” X 10”, PLATED
15C 11 BP3001 NUT, HEX, 3/8”-16, GRADE 2, PLATED
15D 12 BP3002 WASHER, LOCK, 3/8”, PLATED
15E 3 BP3005 HEX CAP SCREW, 3/8”-16 X 1-1/2”, GRADE 5, PLATED
15F 16 BP3015 WASHER, FLAT, 3/8”
15K 8 BP3115 HEX CAP SCREW, 3/8”-16 X 2”, GRADE 5, PLATED
15L 1 BP3116 HEX CAP SCREW, 3/8”-16 X 3”, GRADE 5, PLATED
15N 3 BP3500 PIN, HAIR CLIP, 3/16”
To Next Page
