GDI 200 With Pump Distribution (Rear Mount)
Parts (Bundle 20200119)

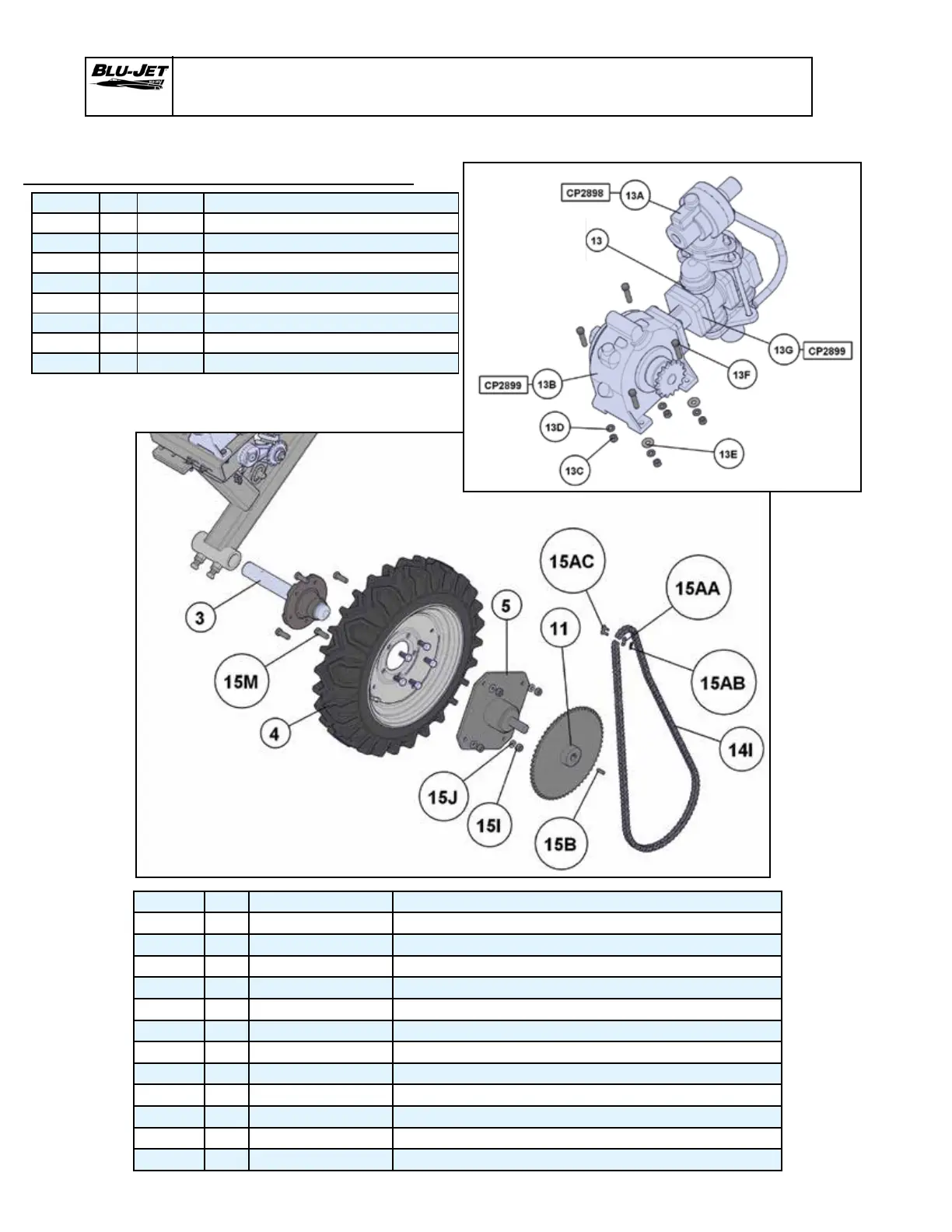

13. CCP2756 GDI 200A, Pump & Valve Assembly
BOM ID Qty Item No Description
13 1 CCP2756 GDI 200A, PUMP AND VALVE ASSEMBLY
13A 1 CP2898 VALVE, SHUTOFF
13B 1 CP2899 PUMP, NH3
13C 4 BP3001 NUT, HEX, 3/8”-16, GRADE 2, PLATED
13D 4 BP3002 WASHER, LOCK, 3/8”, PLATED
13E 2 BP3015 WASHER, FLAT, 3/8”
13F 4 BP3264 HEX CAP SCREW, 3/8”-16 X 1-3/4”, PLATED
13G 1 CP2899 PUMP, NH3
BOM ID Qty Item No Description
3 1 AAM2707 ASSEMBLY, HUB & SPINDLE, 511 HUB, 1-3/4” X 13”
4 1 AAM2750 WHEEL 5.00-15.4, 4 PLY 15 X 5 X 5, WHITE, 4 HOLE
5 1 AM2021 ADAPTER PLATE & HUB
11 1 AP2190 SPROCKET, 5060 X, WITH HUB, 1’’ ROUND BORE, 1/4’’ KEYWAY
14I 1 CM2248 CHAIN, ROLLER, #50, 128 PITCH
15AA 1 AP2103-BAR CONNECTOR LINK #50 CHAIN
15AB 1 AP2103-CONNECTOR CONNECTOR LINK #50 CHAIN
15AC 1 AP2103-LINK CONNECTOR LINK #50 CHAIN
15B 1 BM3527 1/4’’ X 1/4’’ X 1” KEY
15I 4 BP3042 NUT, HEX, 1/2”-13, GRADE 2, PLATED
15J 4 BP3043 WASHER, LOCK, 1/2”, PLATED
15M 4 BP3126 HEX CAP SCREW, 1/2”-13 X 1-1/2”, GRADE 5, PLATED
