BLU-JET LEGACY - Page 98

95
LEGACY

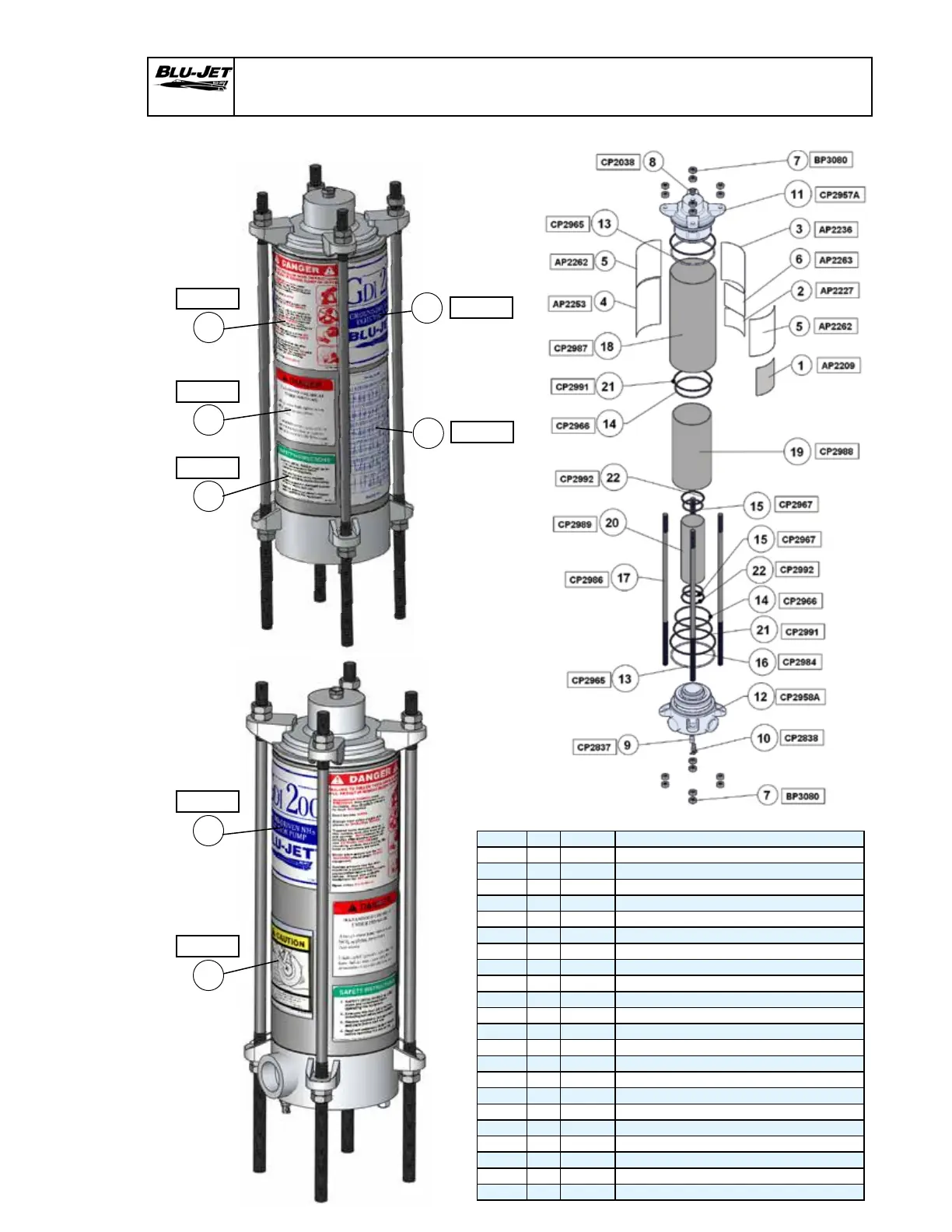

Parts List & Assembly For CCP2755
NH3 Heat Exchanger
AP2253
4
AP2262
5
AP2236
3
AP2263
6
AP2227
2
AP2262
5
AP2209
1
CCP2755 Heat Exchanger Assembly
BOM ID Qty Item No Description
1 1 AP2209 DECAL, CAUTION, GROUND DRIVE WHEEL,
2 1 AP2227 DECAL, SAFETY INSTRUCTION, NH3
3 1 AP2236 DECAL, NH3 DANGER
4 1 AP2253 DECAL, NH3 PUMP RATE CHART
5 2 AP2262 DECAL, GDI 200, 5-3/8” X 6-3/8”
6 1 AP2263 DECAL, DANGER, GDI 200
7 16 BP3080 NUT, HEX JAM, 5/8”-11, GRADE 2
8 1 CP2038 BUSHING
9 1 CP2837 VALVE, PRESSURE RELIEF, 250 PSI, A3184
10 1 CP2838 VALVE, BLEEDER, 104851-01
11 1 CP2957A CASTING, HEAT EXCHANGER OUTLET
12 1 CP2958A CASTING, HEAT EXCHANGER INLET
13 2 CP2965 O-RING
14 2 CP2966 O-RING
15 2 CP2967 O-RING
16 2 CP2984 BACK-UP RING, 8-258 N 300-90
17 4 CP2987 TIE ROD FOR GDI 200A
18 1 CP2987 TUBE, OUTSIDE
19 1 CP2988 TUBE, INTERMEDIATE
20 1 CP2989 TUBE, INSIDE
21 2 CP2991 BACK-UP RING, 5’’ ID X .05”
22 2 CP2992 BACK-UP RING, 2-3/4” ID X .05”
