BLU-JET LEGACY - Page 109

106
LEGACY

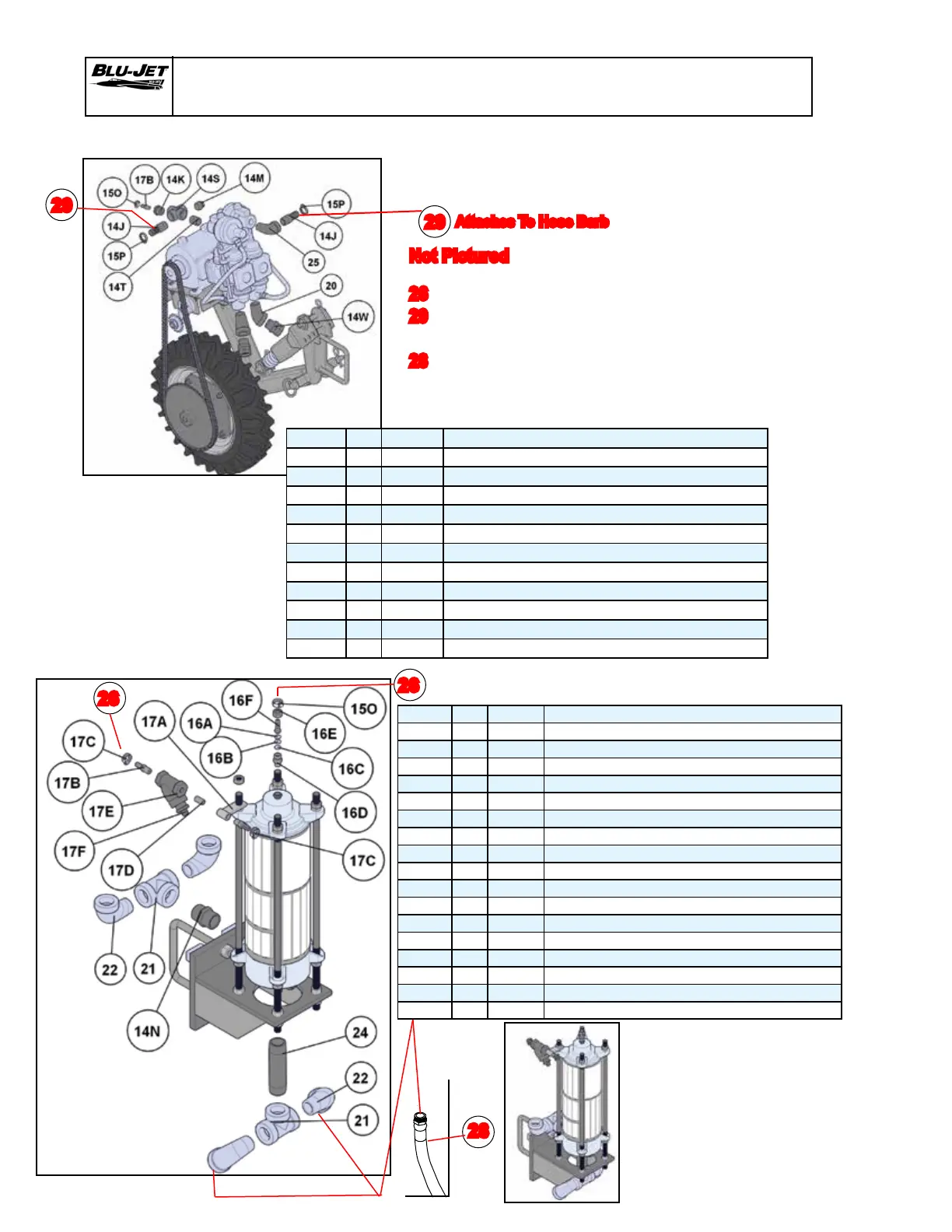

GDI 200 WithTwin Pump Distribution (Rear Mount)
Parts (Bundle 20200121)
Not Pictured
Ref. Part No. Req. Description
26. CP25009 1 E.V.A. Hose 3/8” 8 Ft.
29. CP3001 2 Hose, EVA, 1” Reinforced x 180”
(15’) With Tie & Tag
28. CP2895 1 Hose, NH3, 1-1/4” NPT x 60 in.
High Pressure, Crimp
29
Attaches To Hose Barb
28
29
26
26
BOM ID Qty Item No Description
14J 2 CP2310 1’’ HOSE BARB
14K 1 CP2474 REDUCER BUSHING 1” MP X 1/4” FP,
14M 1 CP2480 PLUG, 1’’
14S 1 DP3999 CROSS, 1” FORGED
14T 1 DP4034 NIPPLE, CLOSE, 1’’
14W 2 DP4397 SWIVEL, 1-1/4” MP X 1-1/4” FP
15O 2 CP2313 HOSE CLAMP, WORM GEAR, 1/4”- 5/8”, STAINLESS STEEL
15P 6 CP2314 HOSE CLAMP, WORM GEAR, 1/2”- 1”, STAINLESS STEEL
17B 3 CP2308 HOSE BARB
20 1 CP2875 ELBOW, STREET, 1-1/4” NPT 45 DEGREE
25 1 DP4040 ELBOW, STREET, 1”
BOM ID Qty Item No Description
14N 1 CP2522 NIPPLE, HEX, 1-1/4” NPT, 3000 PSI
15O 2 CP2313 HOSE CLAMP, WORM GEAR, 1/4”- 5/8”, STAINLESS STEEL
16A 1 CP2541 ORIFICE PLATE #4916-63 JET STREAM
16B 1 CP2545 ORIFICE PLATE #4916-95 JET STREAM
16C 1 CP2557 ORIFICE PLATE #4916-35 JET STREAM
16D 1 CP5044 NOZZLE BODY, STEEL
16E 1 CP5045 NUT, SPRAY TIP
16F 1 CP5046 HOSE BARB INSERT, 3/8”, STAINLESS STEEL
17A 1 AM3338 BRACKET, ORIFICE STRAINER MOUNT
17B 3 CP2308 HOSE BARB
17C 2 CP2313 HOSE CLAMP, WORM GEAR, 1/4”- 5/8”, STAINLESS STEEL
17D 1 CP2441 NIPPLE, CLOSE, 1/4’’ MP, STAINLESS STEEL
17E 1 CP2463 STRAINER, NH3, 1/4’’ FPT, 60 MESH, KECKLEY STYLE B
17F 1 CP2464 PLUG, 3/8’’ MP, STEEL
21 2 DP4037 TEE, 1-1/4”
22 4 DP4041 ELBOW, STREET, 1-1/4”
24 1 DP4578 NIPPLE, 1-1/4” X 6”, SCHEDULE 80
