LEGACY
GDI 200 WithTwin Pump Distribution (Rear Mount)
Parts (Bundle 20200121)
Ref. Part No. Req. Description
27. CP25025 2 E.V.A. Hose 3/4” 15 Ft.
28. CP2895 1 Hose, NH3, 1 1/4” NPT 60”High
Pressure, Crimped
29. CP3001 1 Hose, EVA, 1” Reinforced x 180”
(15’) With Tie & Tag
27
15P
14R
29
15P
Part of Distribution Bundle

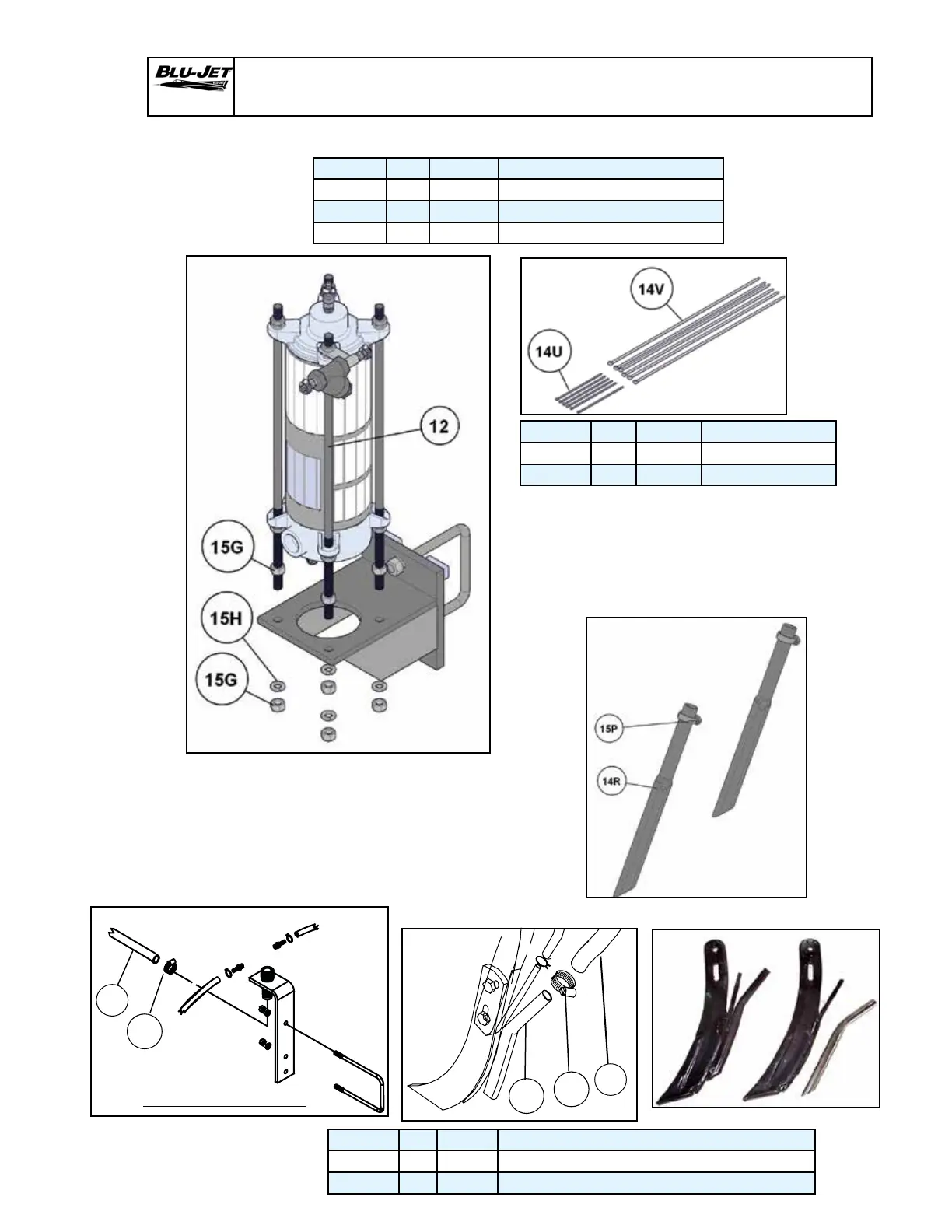

BOM ID Qty Item No Description
12 1 CCP2755 HEAT EXCHANGER ASSEMBLY
15G 8 BP3038 NUT, HEX, 5/8”-11, GRADE 2
15H 4 BP3039 WASHER, LOCK, 5/8”, PLATED
BOM ID Qty Item No Description
14U 6 DP4086 CABLE TIE 11-3/8”
14V 6 DP4296 CABLE TIE 33”
BOM ID Qty Item No Description
14R 2 CP5043 KNIFE VAPOR TUBE 3/4’’ HOSE, WELD-ON
15P 6 CP2314 HOSE CLAMP, WORM GEAR, 1/2” - 1” TUBING, SS
