BLU-JET LEGACY - Page 124

121
LEGACY

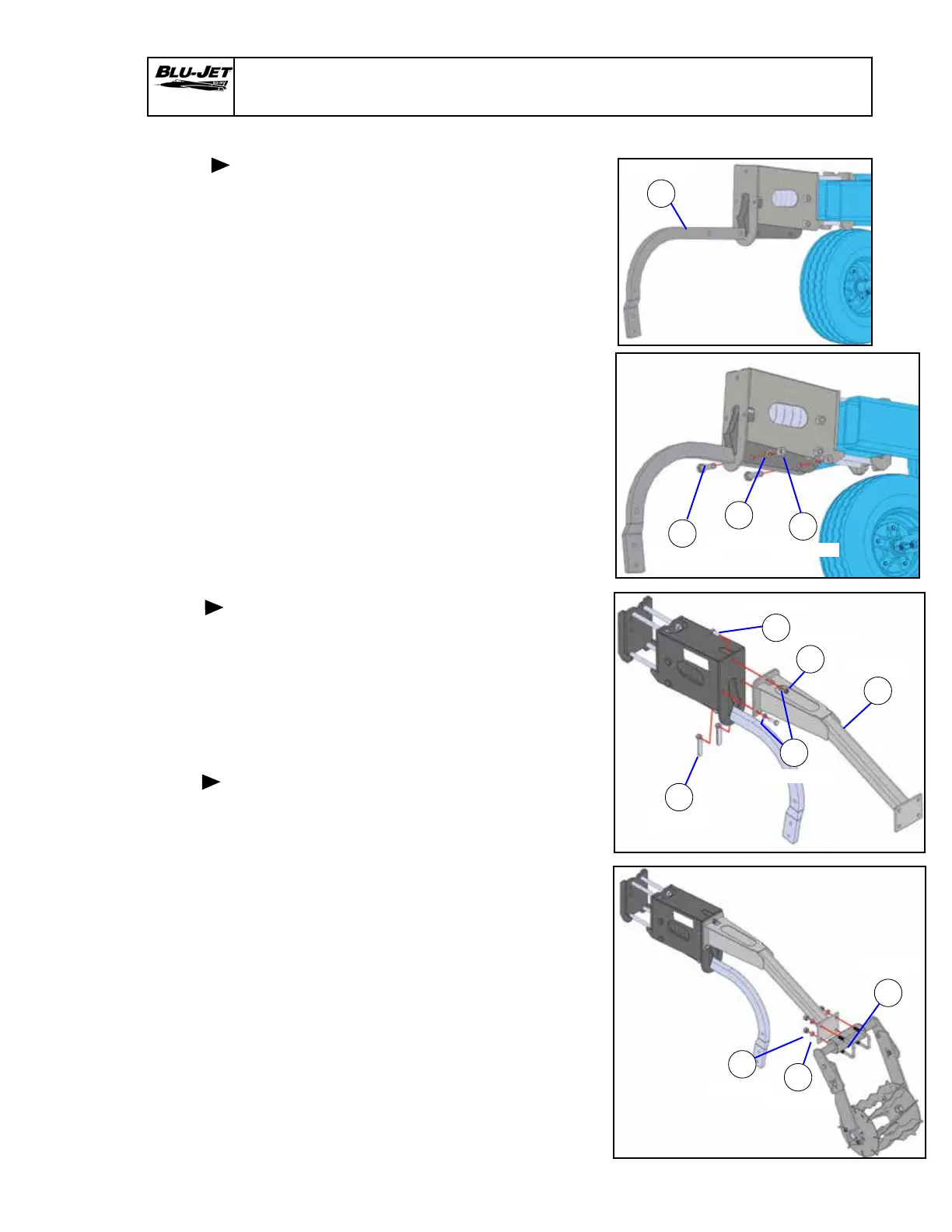

5. Insert (f) (AP2125) 1-1/4” x 2”
EdgeBent shank.
6. Install two (g) (BP3141) 3/4” x 3”
hex cap screws through
row unit weldment and
shank. Secure with (d) (BP3035)
3/4” lock washers and
(c) (BP3034) 3/4” hex nuts.
7. Attach (h) (AM2271) basket
mount to MaxPac assembly
with three (i) (BP3126) 1/2”
hex cap screws.
8. Secure with (j) (BP3043)
1/2” lock washers, one
(k) (BP3042) 1/2” hex nut
and two (l) (AM2273) nut
plates.
9. Attach torsion arm to
basket mount with
(m) (BP3300) u-bolt 5/8”-11
x 2-1/2”W x 4”L. Secure
with (n) (BP3039) 5/8”
lockwashers and (o)
(BP3038) 5/8” hex nuts.
For complete torsion arm
assembly instructions consult
Torsion arm basket section.
MaxPac AR700 Assembly
Installation
of
EdgeBent
shank
Installation
of
AAM2623
MaxPac
basket
Torsion
arm
mounting
AP2125
BP3141
BP3035
AM2271
BP3126
BP3034
BP3043
BP3042
AM2273
BP3039
BP3038
f
g
d
h
i
c
j
k
l
n
o
m
BP3300
