LEGACY

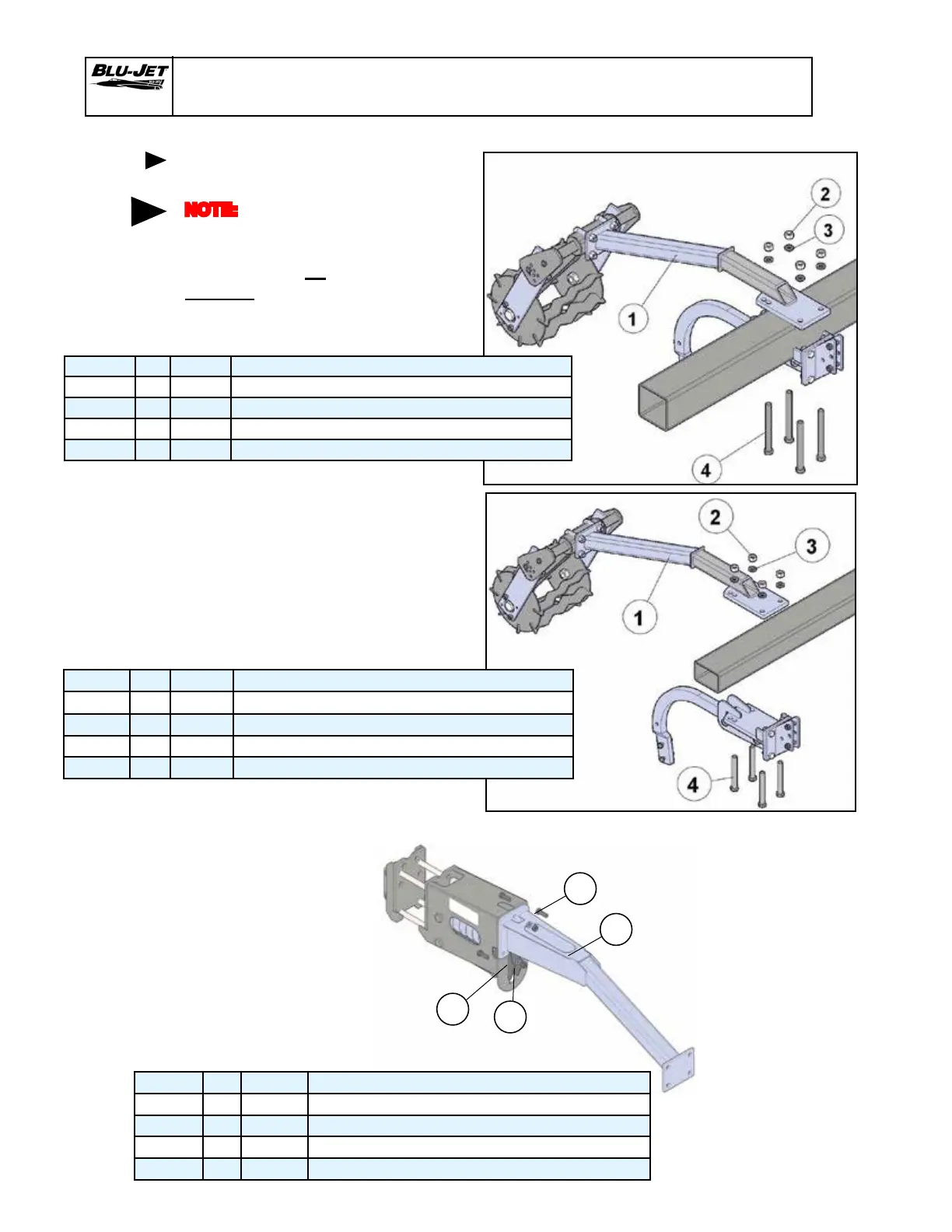

Torsion Arm Mounting Brackets Rigid Fertilizer Rows
Rigid
Mounting
NOTE:
Rigid row units
require Bundle
70210641 with (1)
AM 2269 shortened
arms
MaxPac AR700 Basket Mount
AAM2623 AR700 MaxPac Basket Mount
1
Bundle 70210591 (4” x 6”)
70210641
Bundle 70210592 (6” x 6”)
70210641
4
3
2
BOM ID Qty Item No Description
1 1 AM2272 BRACKET, RIGID/SCS, TORSION ARM BASKET MOUNT
2 4 BP3034 NUT, HEX, 3/4”-10, GRADE 2, PLATED
3 4 BP3035 WASHER, LOCK, 3/4”, PLATED
4 4 BP3176 HEX CAP SCREW, 3/4”-10 X 8-1/2”, GRADE 5, PLATED
BOM ID Qty Item No Description
1 1 AM2272 BRACKET, RIGID/SCS, TORSION ARM BASKET MOUNT
2 4 BP3034 NUT, HEX, 3/4”-10, GRADE 2, PLATED
3 4 BP3035 WASHER, LOCK, 3/4”, PLATED
4 4 BP3036 HEX CAP SCREW, 3/4”-10 X 6-1/2”, GRADE 5 PLATED
BOM ID Qty Item No Description
1 1 AM2271 BASKET MOUNT, MAXPAC
2 3 BP3042 NUT, HEX, 1/2”-13, GRADE 2, PLATED
3 3 BP3043 WASHER, LOCK, 1/2”, PLATED
4 3 BP3126 HEX CAP SCREW, 1/2”-13 X 1-1/2”, GRADE 5, PLATED
