131
LEGACY

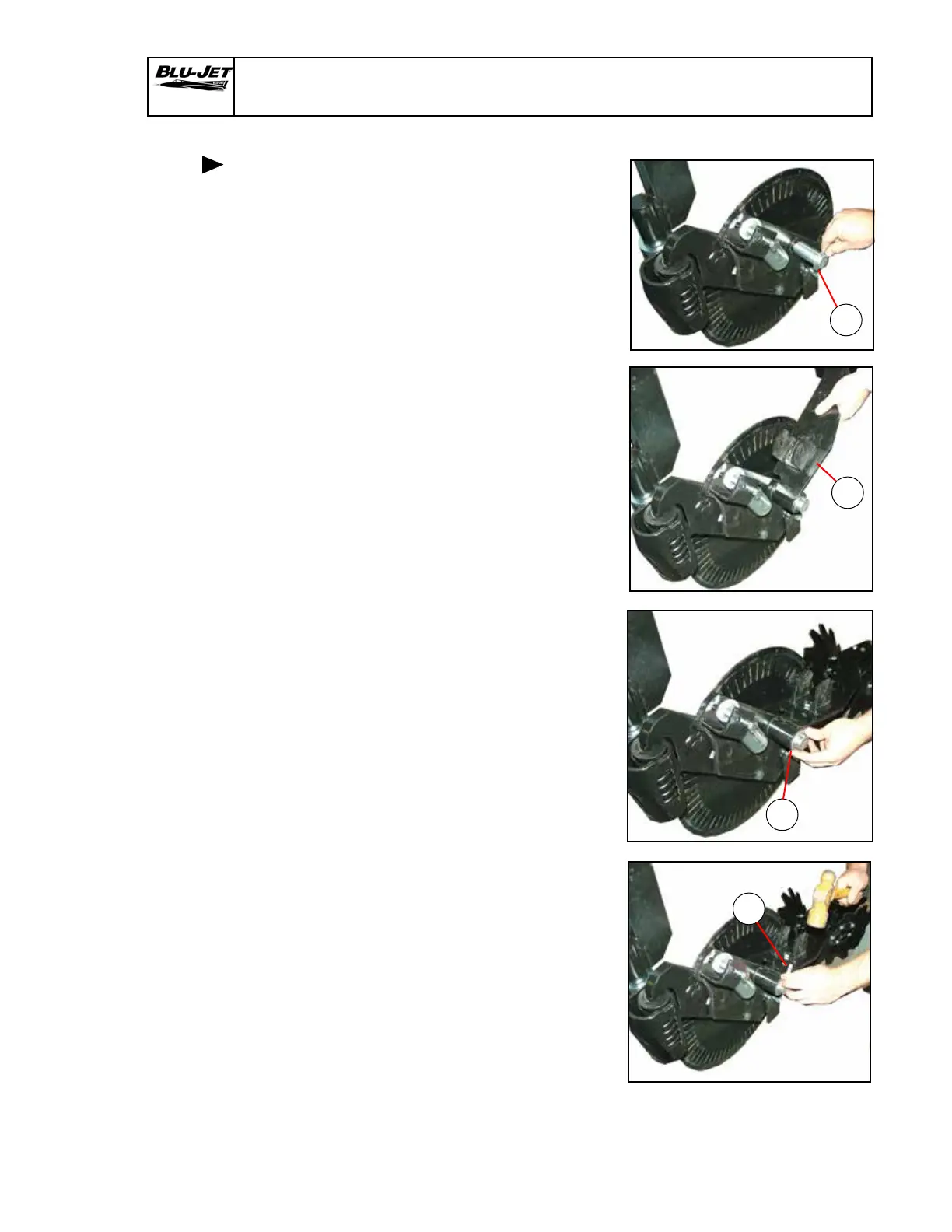

Attaching
bolt on
blade arm
mount
12. Place (24) (BP3249) 1-7/8” OD
x 1-1/4” ID machinery bushing
on pivot weldment.
13. Slide (10) (AM7671) bolt on
blade arm mount on pivot
arm.
14. Place (24) (BP3249) 1-7/8” OD
x 1-1/4” ID machinery bushing
on pivot weldment.
15. Secure arm to weldment with
(22) (BP3162) 3/8” roll pin.
StripTill Residue Manager
24
10
24
22
