149
Task Procedures Illustrations
LEGACY

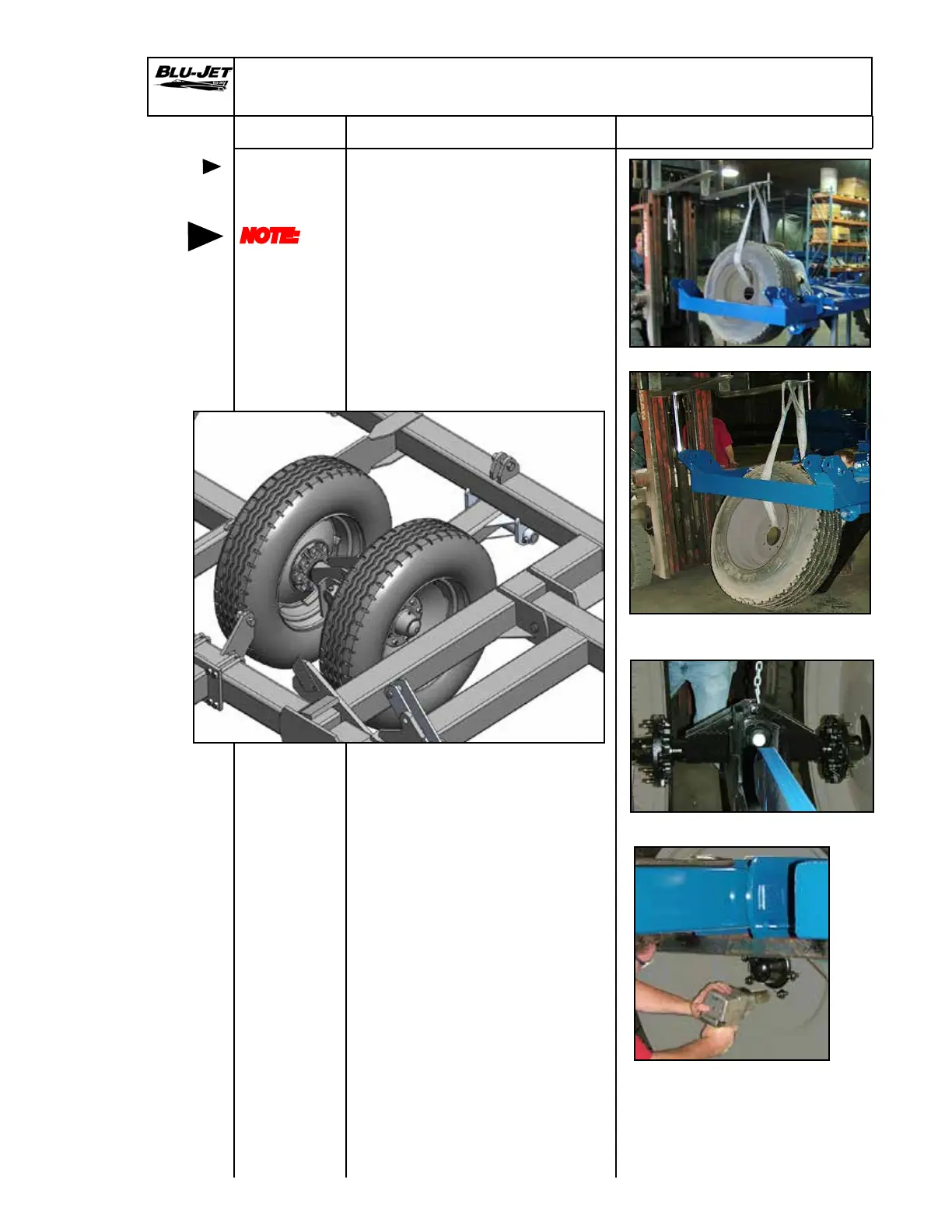

Dual Wheel Center Lift Assembly
Mounting
tires
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear
8. Lift tire into position from
the top.
9. Angle tire past hub and algin
with hub.
Generic Photo
Generic Photo
Generic Photo
Generic Photo
10. Position both tire next to hub.
11. Raise wheel leg assembly and
maneuver tires on studs.
12. Tighten lug nuts evenly and
torque to 140 to 170 ft. lbs.
Check tire pressure; inate
truck tires to 95 P.S.I.
and lugged tractor tires
to 51 P.S.I
Center Section
Rear
To Next Page
