BLU-JET LEGACY - Page 184

181
Task Procedures Illustrations
LEGACY

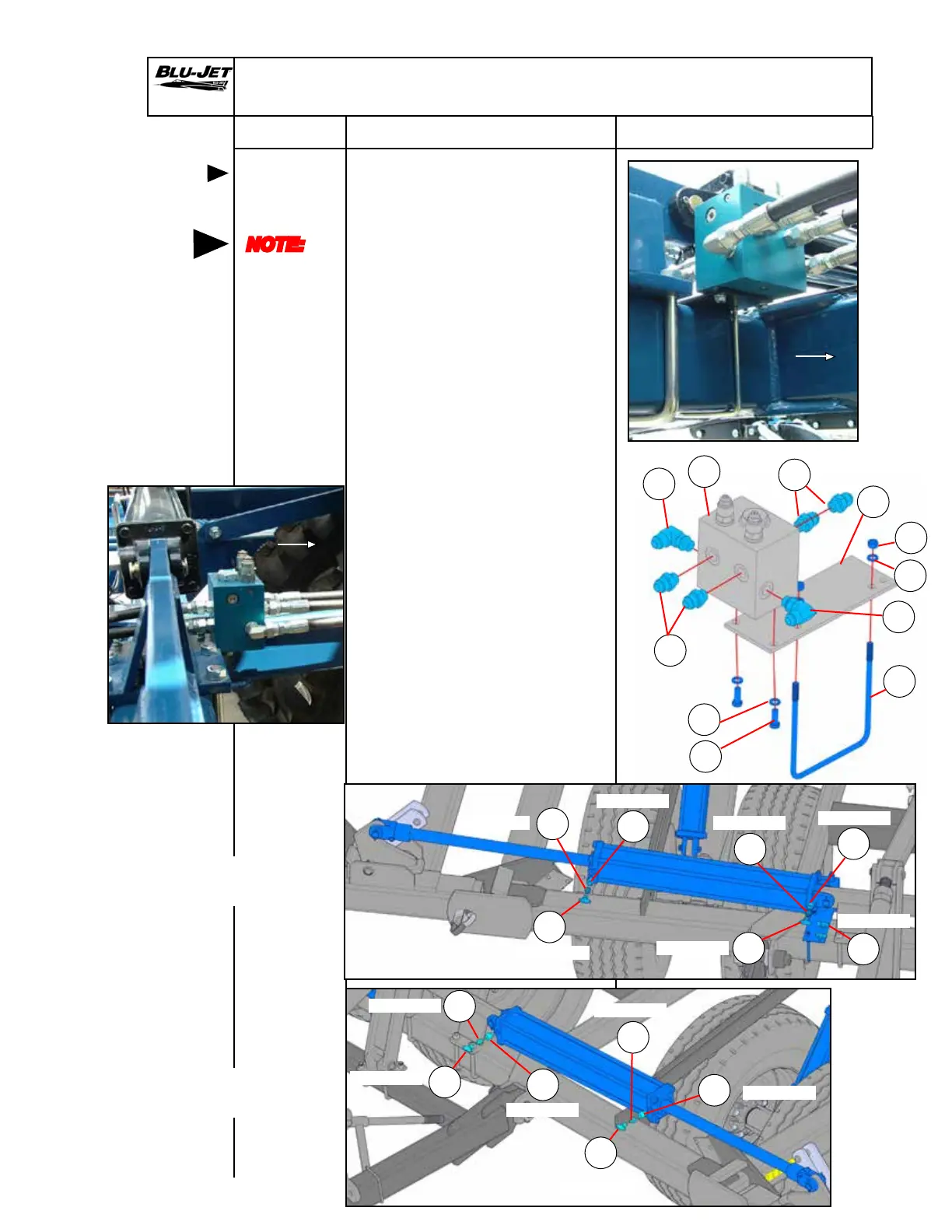

Legacy 52’ Wing Cylinder Fittings
Mounting
wing
cylinders
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear
1. Attach (27) (DP4590) ow
divider to (3) (AM6159) check
valve mounting plate with
two (9) (BP3006) 3/8” x 1” hex
cap screws, and two (8)
(BP3002) 3/8” lock washers.
2. Position ow divider assembly
on right-hand side from the
rear under center section
cylinder lug. Secure with
(11) (BP3351) 3/8” x 6” x 7”
u-bolt, (8) (BP3002) 3/8” lock
washers and (7) (BP3001)
3/8” hex nut.
3. Install (15) (DP4143) 10MJIC-
8MSAE 90 degree adapter
on both sides of the ow
divider block.
4. Install (19) (DP4392) 8MSAE-
10MJIC straight adapter in
front and rear ports.
5. Install (26) (DP4551) 6MJ-
8MSE adapters w/restrictor,
(21) (DP4399) 10MSAE-8FSAE
reducers and (25) (DP4550)
6FJX-6MJ-6MJ tee branch
in side ports of both primary
wing cylinders.
6. Attach (17) (DP4379) 6FJX-
6MJ-6MJ, STL tee run on
(23) tee branch butt end of
Right-hand from the rear
cylinder.
Right-hand
from the rear
19
15
8
9
7
8
3
11
15
19
27
Tractor
Side
Rear
Rear
21
25
26
17
21
25
26
21
25
26
21
25
26
Tractor Side
Tractor Side
Left-hand
from the rear
DP4551
DP4399
DP4551
DP4550
DP4550
DP4399
DP4379
DP4399
DP4551
DP4551
DP4399
DP4550
DP4550
