Task Procedures Illustrations
182
LEGACY

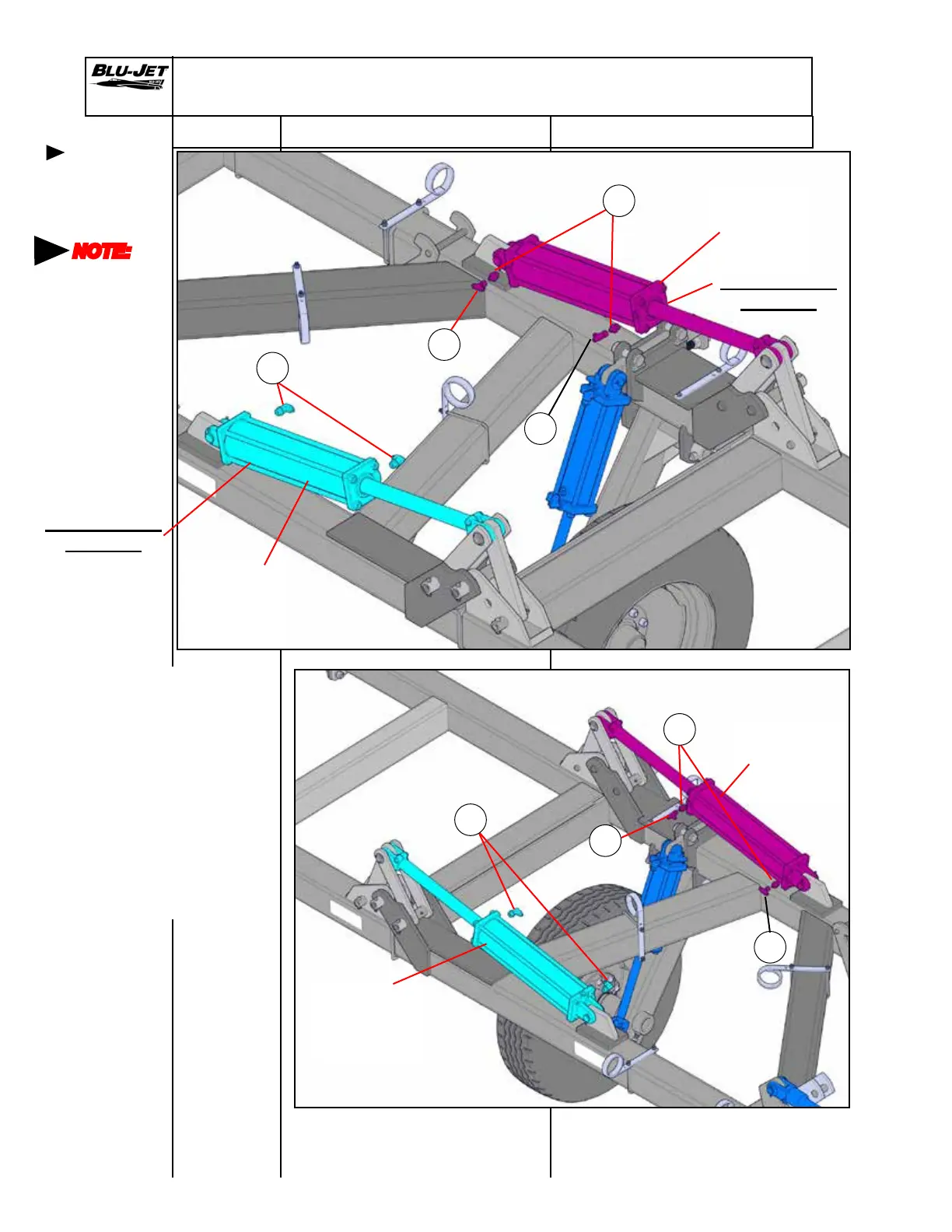

Legacy 52’ Wing Cylinder Fittings
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear
Dual
secondary
wing
cylinders
90 degree
ports face
center
7. Install (BB) (DP4580) 6MJ-
10MSAE adaptors in side
ports of tractor side secondary
wing cylinders. Install (BC)
(DP4550) 6FJX-6MJ-6MJ STL
tee branch on adaptor butt
end. Install (BD) (DP4379)
6FJX-6MJ-6MJ tee to adaptor
rod end.
8. Install (AB) (DP4581) 6MJ-
10MSAE 90 degree adapters
in both left-hand and right-
hand side ports of 4-1/2” x 20”
secondary wing cylinders.
Tractor side
DP4579
4-1/2” x 20”
Secondary
wing
cylinder
DP4579
4-1/2” x 20”
Secondary
wing
cylinder
BB
BD
BC
DP4580
DP4550
DP4379
DP4581
AB
Part of Bundle
66000125
Part of Bundle
66000106
Tractor side
Right-hand from the rear
Left-hand from the rear
DP4579
4-1/2” x 20”
Secondary
wing
cylinder
DP4580
BB
BD
BC
DP4550
DP4379
DP4579
4-1/2” x 20”
Secondary
wing
cylinder
DP4581
AB
To Next Page
