BLU-JET LEGACY - Page 186

183
Task Procedures Illustrations
LEGACY

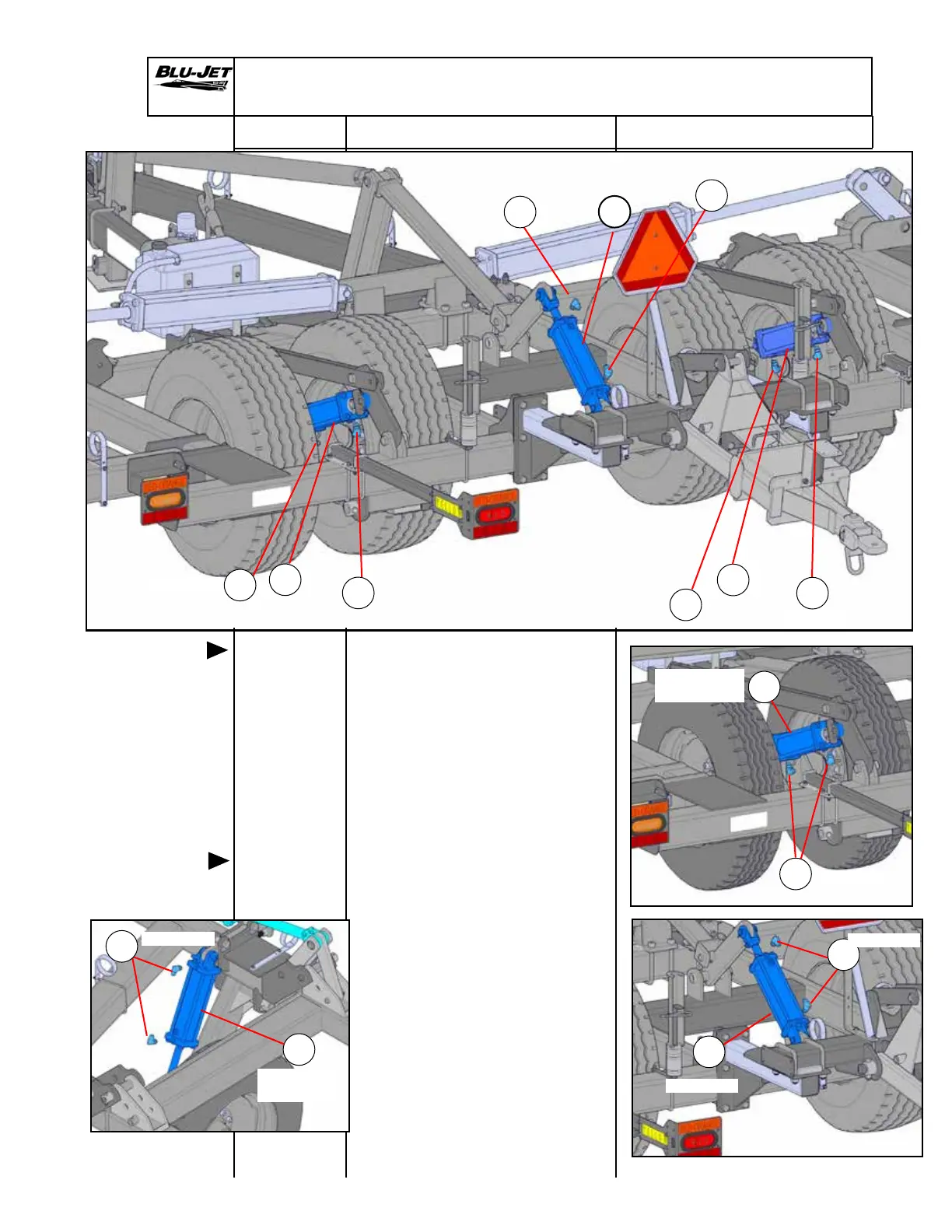

Legacy 52’ Lift Cylinder Fittings
Center
section
cylinder
ttings
1. Install (15) (DP4143) 90 degree
adapter, 10MJIC- 8MSAE in
bottom ports of wheel lift
cylinders (24) (DP4487) 4-1/2” x 12”.
DP4485
3-3/4” x 12”
22
2. Install (15) (DP4143) 90
degree adapter, 10MJIC-
8MSAE in top ports of
center section linkage
cylinder (22) (DP4485)
3-3/4” x 12”.
3. Install (15) (DP4143) 90
degree adapter, 10MJIC-
8MSAE in top ports of
gauge wheel linkage
cylinders (23) (DP4486)
4” x 12”.
24
DP4487
4-1/2” x 12”
24
DP4487
4-1/2” x 12”
15
15
15
15
22
24
15
23
15
Gauge
wheel
cylinder
ttings
DP 4486
4 x 12
DP4143
DP4143
15
15
DP4143
DP4143
DP4143
DP4143
DP4143
DP4143
DP4143
15
DP4485
DP4487
4-1/2” x 12”
