Task Procedures Illustrations
186
LEGACY

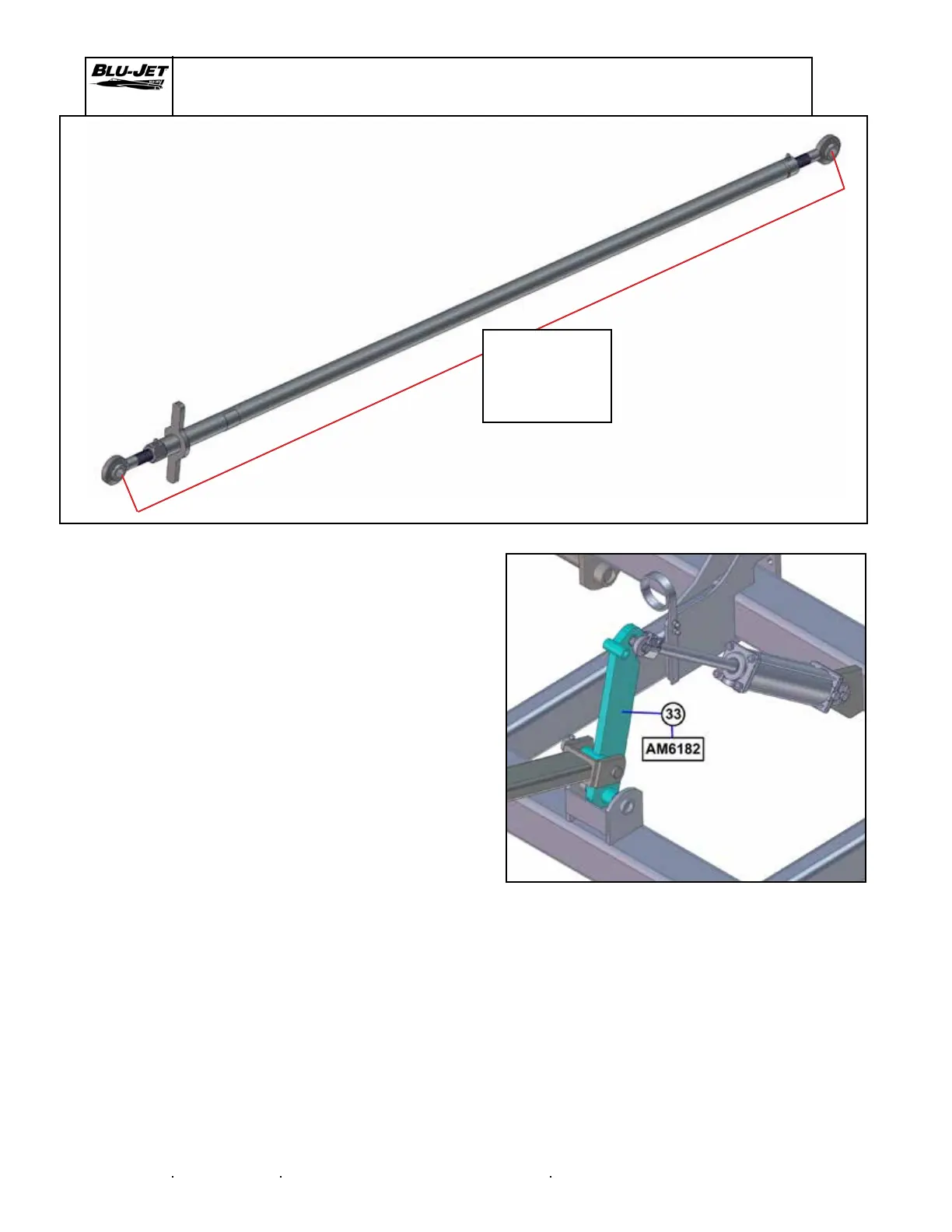

TONGUE CYLINDER ARM LINKAGE
1. When updating older toolbars the
tongue cylinder arm linkage will need to
be removed and replaced with (33)
(AM6182) tongue cylinder linkage arm.
(Same part number as old toolbars)
Primary Wing Left-hand Area of Bundle
Depth Control Assembly
PREPARING ADJUSTMENT LINKAGE
DEPTH CONTROL FOR ASSEMBLY
1. Rotate each end of linkage out 3/4” or
12 revolutions. NOTE: This is a starting
depth position.
65” CENTER
TO CENTER
ASSEMBLY
POSITION
