Task Procedures Illustrations
LEGACY
61”
(LEGACY)
MOUNTING DEPTH CONTROL
PIVOT BRACKET

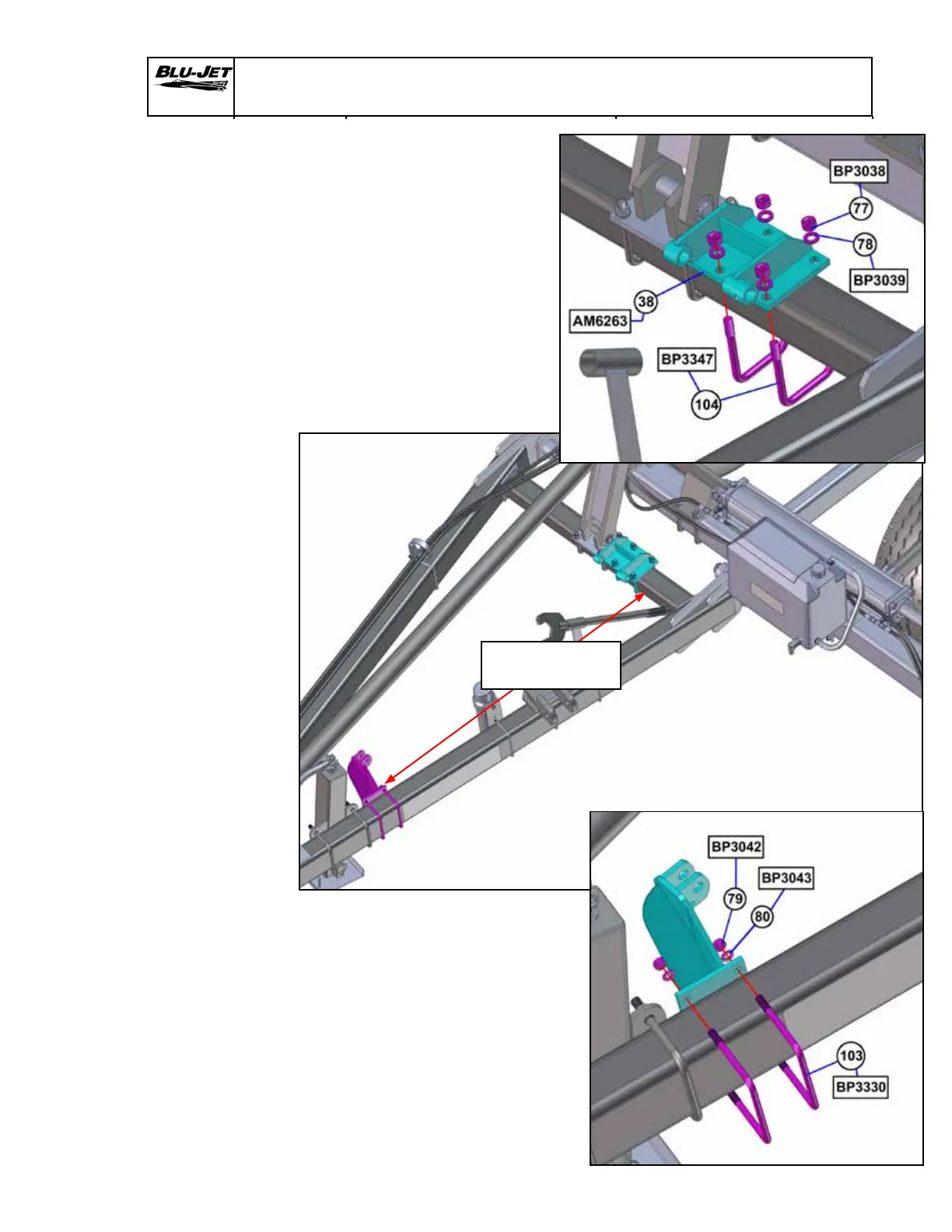

1. Place (38) (AM6263) depth control pivot
against the turnbuckle support mounting
bracket. Secure with (104) (BP3347) 5/8”
x 4” x 5-5/8” u-bolts, (78) (BP3039) 5/8”
lock washers and (77) (BP3038) 5/8” hex
nuts.
MOUNTING DEPTH CONTROL
ADJUSTER BRACKET
1. Position (42) (AM6270) depth control adjuster
bracket 61” from the 4 x 6 tube on the
Legacy tongue. Secure with (102) (BP3330)
1/2” x 6” W x 5-1/8”L, u-bolts, (80) (BP3043)
1/2” lock washers and (79) (BP3042) 1/2”
hex nuts.
Primary Wing Left-hand Area of Bundle
Depth Control Assembly
To Next Page
