207
Task Procedures Illustrations
LEGACY

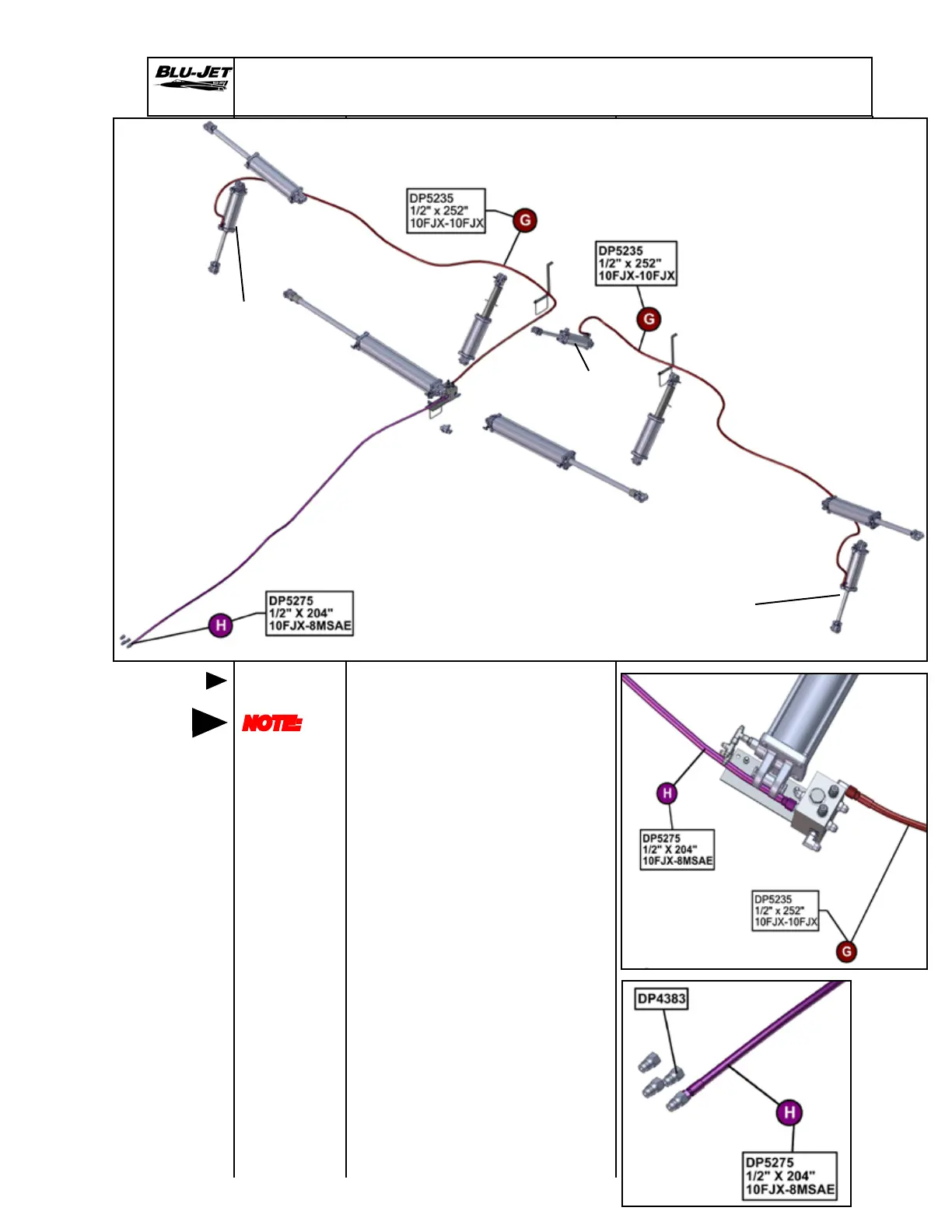

1. Attach (H) (DP5275) 1/2” x
204” (17’) 10FJX-8MSAE
hoses to tractor side ports
of ow divider.
2. Extend hoses through hose
holders on tongue and install
(DP4383) pioneer ttings
3. Install (G) (DP5235) 1/2” x
252” (21’) 10FJX-10FJX hose
to right-hand 90 degree elbow
on ow divider. Extend hose
through hose holders to right-
hand gauge wheel and attach
to rod end of cylinder.
4. Attach second (G) (DP5235)
1/2” x 252” (21’) 10FJX-10FJX
hose to butt end of (DP4485)
3-1/2 x 12 cylinder.
Extend hose through hose
holders to left-hand gauge
wheel cylinder (DP4486) and
attach to rod end.
Lift wheel
hoses
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear
Legacy 38’, 42’, 47’ Hydraulics
DP4485
3-3/4” x 12”
DP4486
4” x 12”
DP4486
4” x 12”
