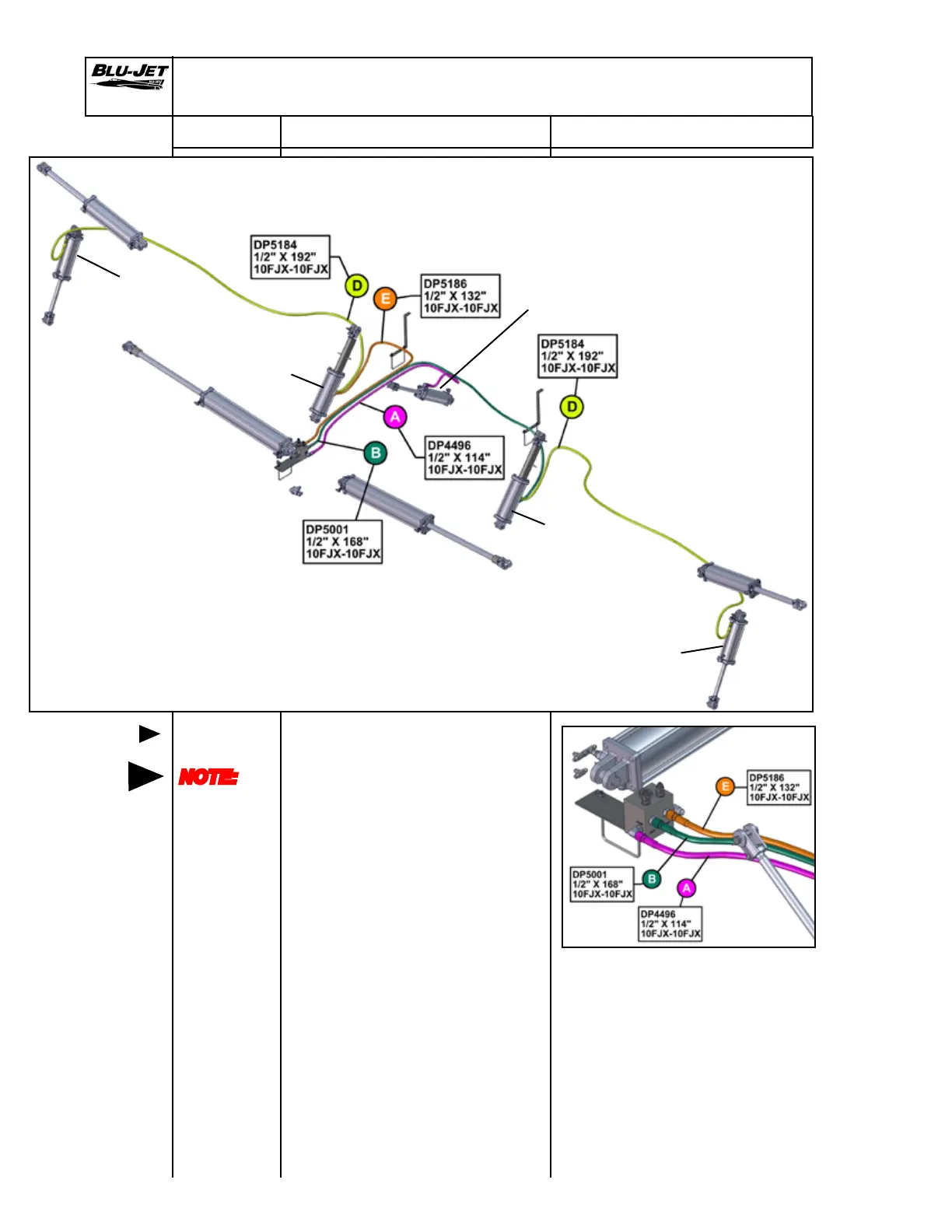

BLU-JET LEGACY - Page 211

Task Procedures Illustrations
208
LEGACY
DP4485
3-3/4” x 12”
1. Attach (A) (DP4496) 1/2” x
114” (9’6”) 10FJX-10FJX hose
to ow divider 90 degree
elbow. Extend through hose
holder to rod end of (DP4485).
2. Install (B) (DP5001) 1/2” x
168” (14’) 10FJX-10FJX hose
to rear left-hand adapter on
the ow divider. Extend hose
through hose holders to butt
end of (DP4487) left-hand.
3. Attach (E) (DP5186) 1/2” x 132”
(11’) 10FJX-10FJX hose to rear
right-hand adapter on ow
divider. Extend hose through
hose holders to butt end of
(DP4487) right-hand.
4. Install (D) (DP5184) 1/2” x
192” (16’) 10FJX-10FJX
hoses to rod ends of (DP4487).
Extend hoses through hose
holders down each side to
butt ends of gauge wheel
cylinder (DP4486).
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear
Lift wheel
hoses
Legacy 38’, 42’, 47’ Hydraulics
DP4487
4-1/2” x 12”
DP4487
4-1-2” x 12”
DP4486
4” x 12”
DP4486
4” x 12”
Right-hand from the rear
Left-hand from the rear
