Task Procedures Illustrations
LEGACY
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear

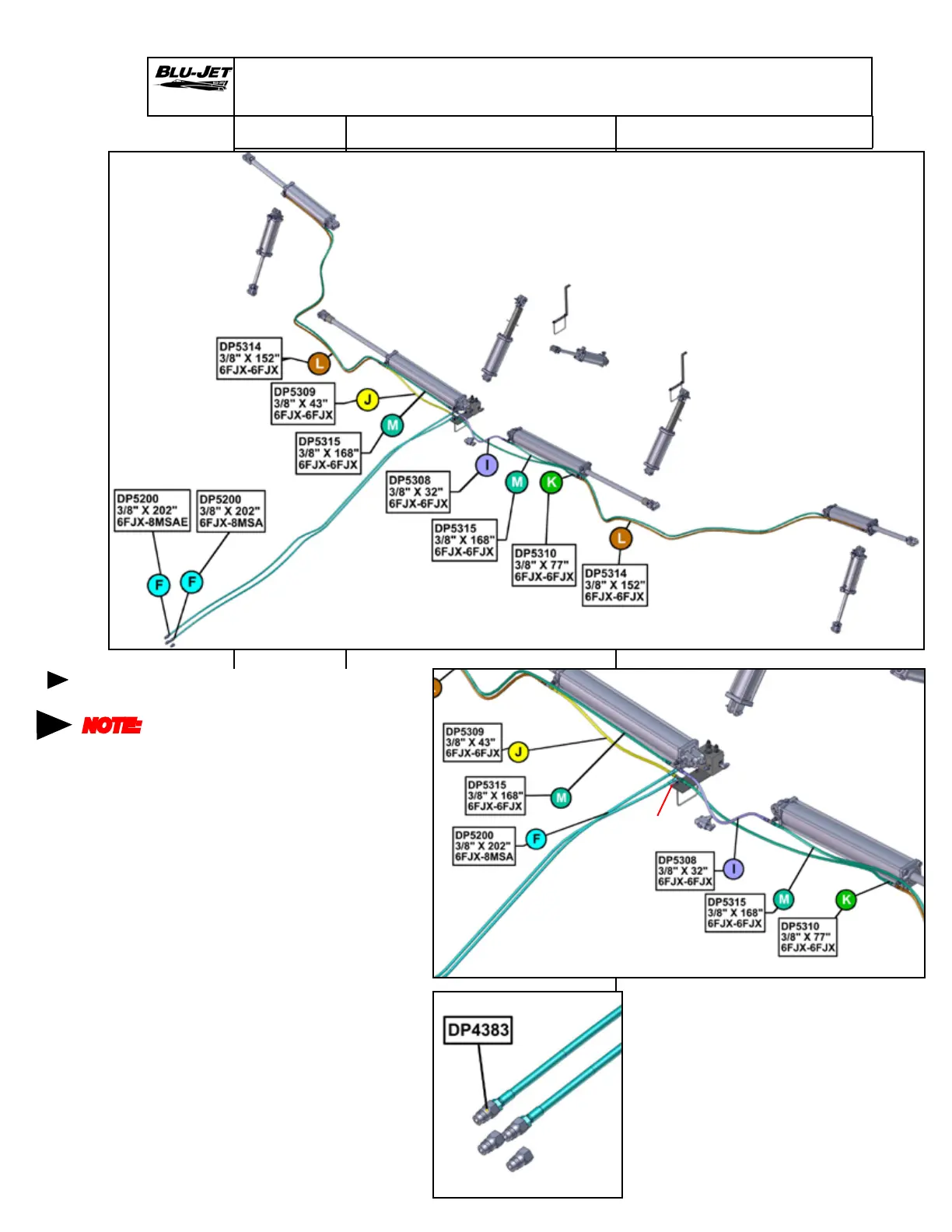

Wing lift
hoses
1. Attach bottom (F) (DP5200)
3/8” x 202” (16’-10”), 6FJX-
8MSAE hoses to (DP4004)
10MJ-10MJ-10MJ tee near
ow divider. Attach second
(F) (DP5200) 3/8” x 202” (16’-
10”), 6FJX-8MSAE hoses to
(DP4379) 6JX-6MJ-6MJ tee
on cylinder butt end tting.
2. Install (I) (DP5309) 3/8” x 43”
(3’-7”) 6FJX-6FJX hose to
(DP4004) 10MJ-10MJ-10MJ
tee. Extend and attach to
rod end of right-hand
(DP4398) cylinder.
3. Attach (K) (DP5310) 3/8” x 77”
(6’-5”) 6FJX-6FJX hose to
(DP4379) 6FJX-6MJ-6MJ
tee. Extend and attach to
rod end of left-hand
(DP4398) cylinder.
4. Install (I) (DP5308) 3/8” x 32”
(2’-8”) from DP4379 tting to
butt end of DP4398 left-hand
cylinder.
5. Extend hoses through hose
holders on tongue to hitch.
Install two (DP4383) Pioneer
ttings.
DP4004
Legacy 38’, 42’, 47’ Hydraulics
