BLU-JET LEGACY - Page 213

Task Procedures Illustrations
210
LEGACY
NOTE:
Left-hand
and
right-hand
as viewed
from the
rear

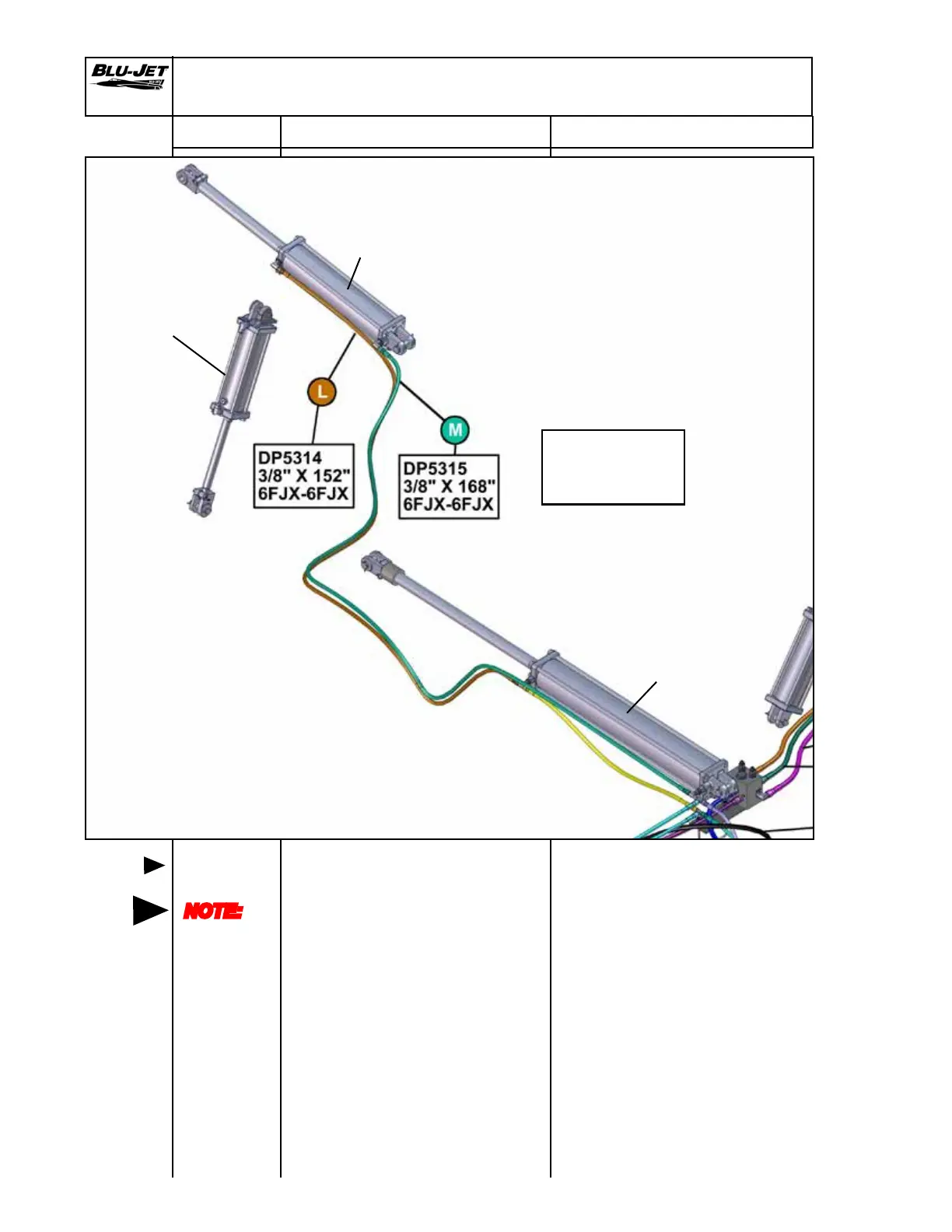

Wing lift
hoses
1. Attach bottom (L) (DP5315)
3/8” x 168” (14’) 6FJX-6FJX
to butt end tee of (DP4398)
cylinder. Extend hose
through hose holders to
rear secondary wing (DP4579)
cylinder butt end tee.
2. Install (K) (DP5314) 3/8” x
152” (12’-8”) 6FJX-6FJX
to rod end tee of (DP4398)
cylinder.
Extend hose through hose
holders to rear secondary
wing (DP4579) cylinder rod
end tee.
DP4398
5” x 36”
DP4579
4-1/2 x 20
DP4486
4” x 12”
Right-hand from the rear
Tractor Side
Legacy 38’, 42’, 47’ Hydraulics
DP5315
3/8” X 168” (14’)
6FJX-6FJX
