Task Procedures Illustrations
222
LEGACY
SuperShooter
dual
assembly

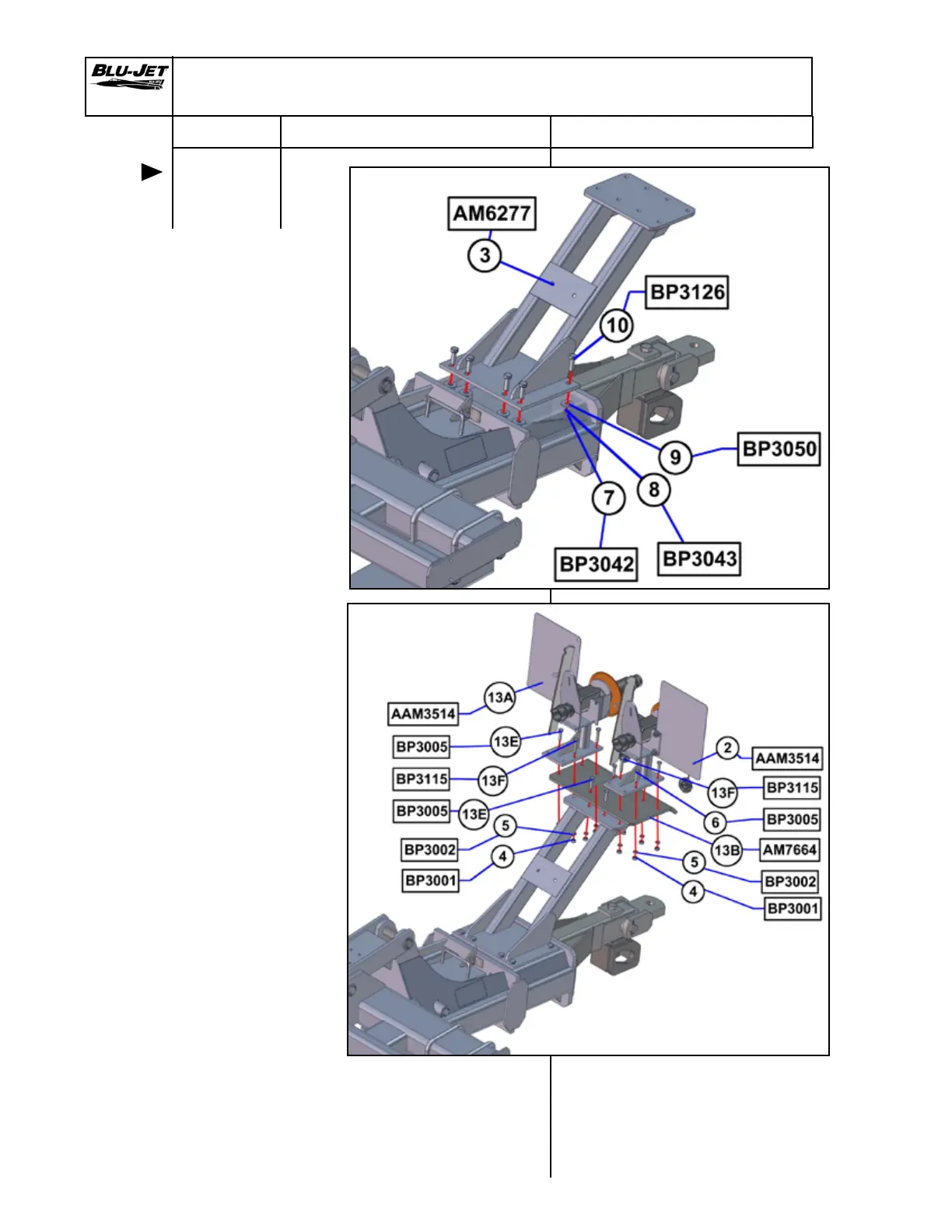

1. Mount (3) (AM6277) Super-
Shooter riser to hitch with (10)
(BP3126) 1/2” x 1-1/2” hex cap
screws, (9) (BP3050) 1/2” at
washers, (8) (BP3043) 1/2” lock
washers and (7) (BP3042) 1/2”
hex nuts.
2. Position (13B) (AM7664) double
SuperShooter mounting plate
on mounting and insert (13E)
(BP3005) 3/8” x 1-1/2”, grade
5, hex cap screws in center
four holes.
Secure with (5) (BP3002) 3/8”
lock washers and (4) (BP3001)
3/8” hex nuts
3. Attach (2) (13A) (AAM3514)
SuperShooters to mounting
plate with (13F) (BP3115) 3/8” x
2”, grade 5, hex cap screws to
the inside of the SuperShooter
mounting plate.
Secure with (5) (BP3002) 3/8”
lock washers and (4) (BP3001)
3/8” hex nuts.
4. Insert (13E) (BP3005) 3/8” x
1-1/2”, grade 5, hex cap
screws in the outside holes
of each SuperShooter stand.
Secure with (5) (BP3002) 3/8”
lock washers and (4) (BP3001)
3/8” hex nuts.
SuperShooter III Add-on Parts
66000136 and 66000137 Dual Assembly
