223
Task Procedures Illustrations
LEGACY
SuperShooter
dual
assembly

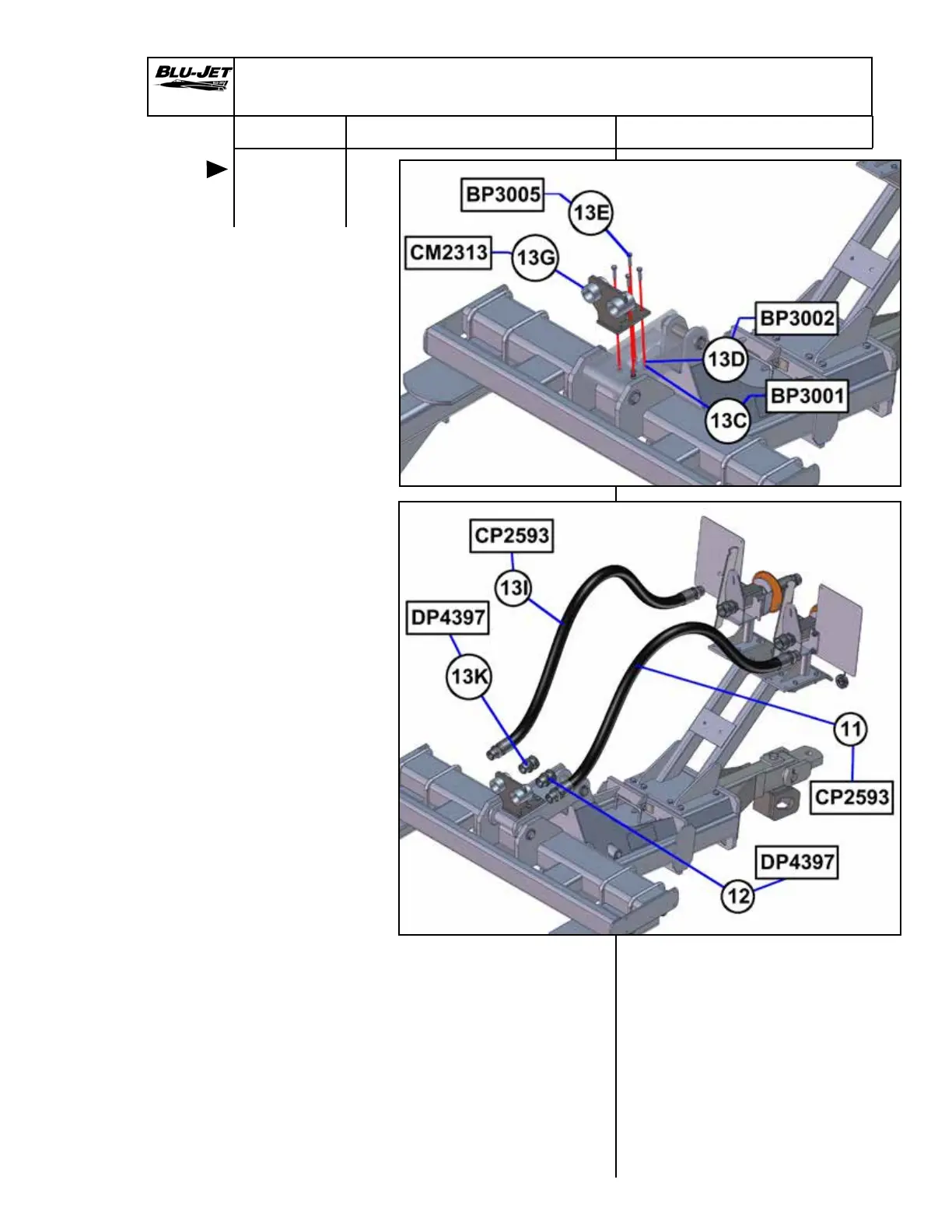

5. Mount (13G) (CM2313) 1-1/4”
double coupler bracket to
nurse tank linkage with (13E)
(BP3005) 3/8” x 1-1/2”, grade 5,
hex cap screws.
Secure with (13D) (BP3002) 3/8”
lock washers and (13C) (BP3001)
3/8” hex nuts.
6. Install (12) (13K) (DP4397)
1-1/4” MP x 1-1/4” FP, swivels
in double coupler bracket.
7. Attach (11) (13I) (CP2593) 1-1/4”
x 64” NH3 hoses between swivels
and SuperShooters.
SuperShooter III Add-on Parts
66000136 and 66000137 Dual Assembly
