BLU-JET LEGACY - Page 235

Task Procedures Illustrations
232
LEGACY
Left-hand from the rear
1. Mount (a) (AM3408)
1/4” x 4” x 11-3/16” light
post mounting plate with (b)
(BP 3351) 3/8” X 6” x 7” u-bolts
and (c) (CP2660) 3/8” hex
locks, (Nylock).
2. Place (d) (AM3416) 4’ 0”
light tube bracket on mounting
plate.
Secure tube with (e) (BP3736)
3/8” x 2” W x 3” L u-bolts and
(c) (CP2660) 3/8” hex lock,
(Nylock).
3. Insert (g) (AP3128) rear wiring
harness into tube.
4. Install (h) (AP3551) oval grommet
into (f) (AM3414) rear light
bracket. Insert (i) (AP3549) Red
oval tail light. Attach wiring
harness to Red tail light.
5. Attach (f) (AM3414) rear light
bracket with (e) (BP3736)
3/8” x 2” W x 3” L u-bolts and
(c) (CP2660) 3/8” hex lock,
(Nylock).
6. Install (j) (AP2547) yellow
reector to outside of (f).
7. Place (l) (AP2551) Red-orange
decal above red light and (k)
(AP2548) Red decal below.
a
b
c
d
e
c
f
e
g
i
Red Red
Amber
Amber
g
AP3128
AP3128
AM3408
CP2660
CP2660
CP2660
BP 3351
BP3736
AM 3416
BP3736
AM3414
h
AP3551
AP3549

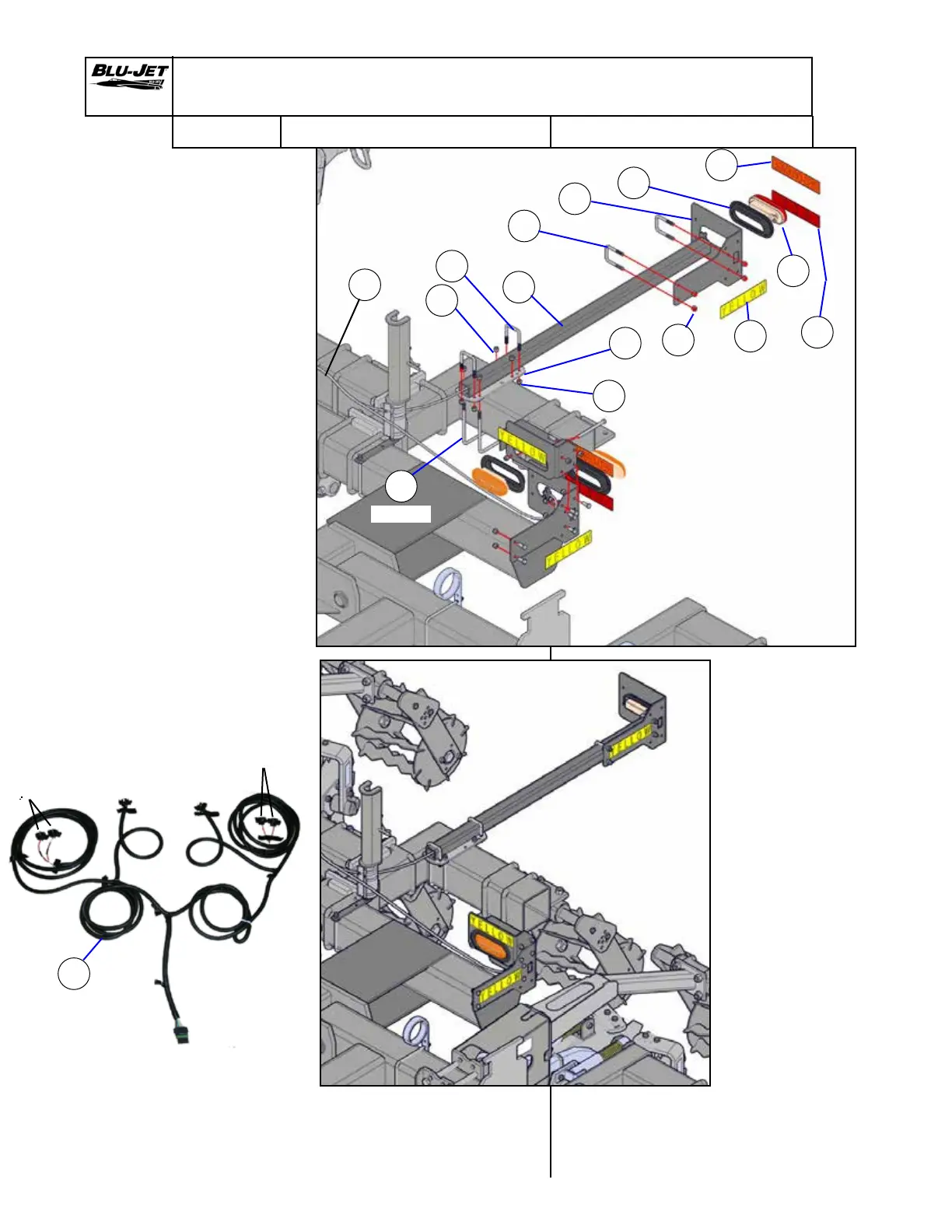

Light Kit Assembly and Mounting
j
AP2547
k
AP2548
c
l
AP2551
