BLU-JET LEGACY - Page 79

76
LEGACY

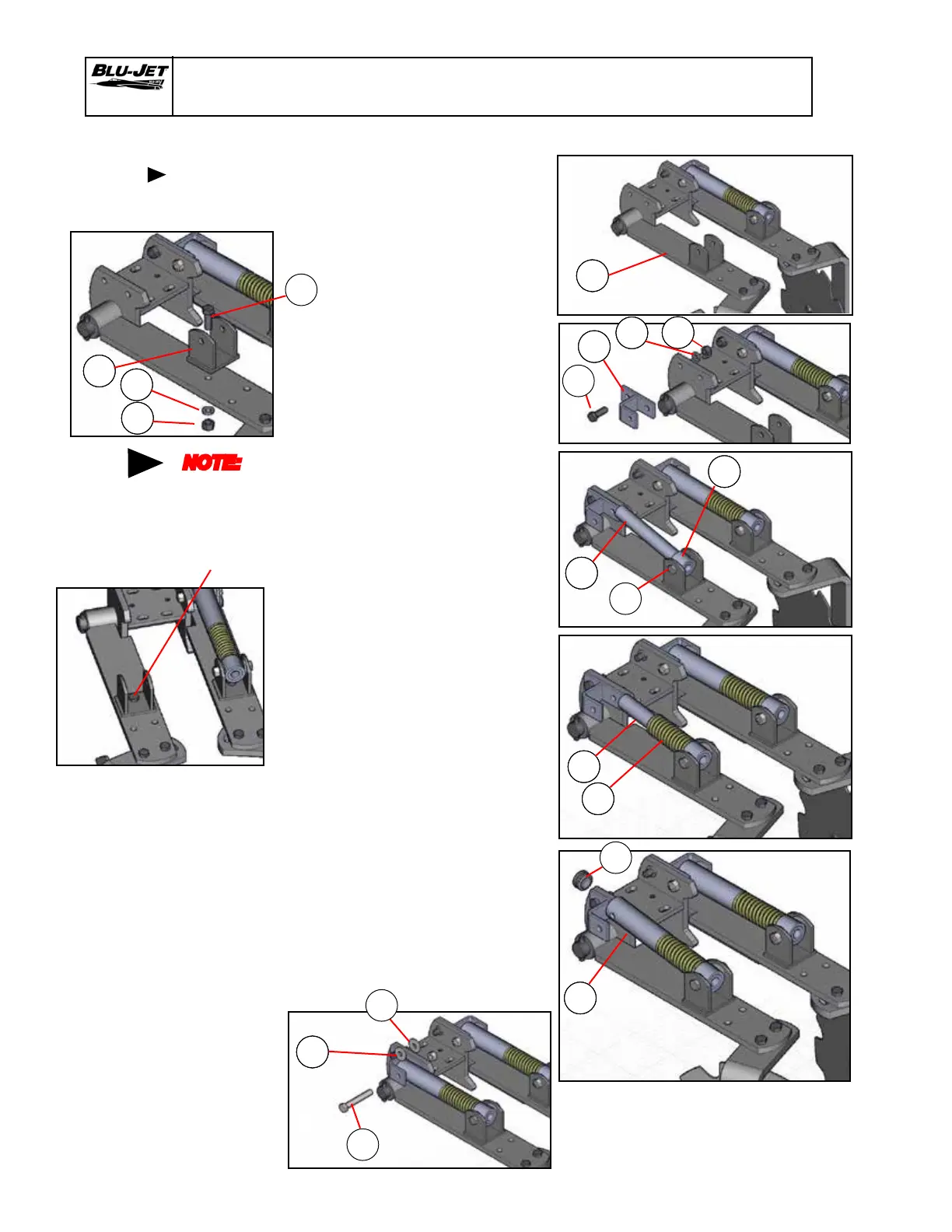

SealPro II (AAM2857) Assembly,
Optional Sealer II Spring Add-on Kit 1 Row
Mounting
Spring
Add-on Kit
1. Mount (2) (AM2489) sealer
spring clevis lower to arm
with clevis hole to the front.
Install (11) (BP3126) 1/2” x
1-1/2” grade 5, hex cap screw.
Secure with (9) (BP 3043) 1/2”
lock washer and (8) (BP 3042)
1/2” hex nut.
2. Mount (1) (AM2488) upper
sealer spring clevis to sealer
mounting bracket with (11)
(BP3126) 1/2” x 1-1/2” grade
5 hex cap screw. Secure
with (9) (BP3043) 1/2” lock
washer and (8) (BP3042)
1/2” hex nut.
3. Insert (5) (AM2492) spring
guide tube into (4) (AM2491)
spring collar bushing and
align the holes. Place in
lower clevis. Insert (12)
(BP3129) 1/2” x 3” hex cap
screw through clevis. Place
(10) (BP3050) 1/2” at washers
on both sides of bushing.
Secure with (14) (BP3244)
1/2” lock hex nut. Do not
over tighten. Allow tubes to
pivot.
4. Place (6) (AP2997) spring
over (5) (AM2492) spring
guide tube.
5. Place (3) (AM2490) upper
spring tube over spring guide.
Insert (7) (AP3116) tube plug
in end of upper spring tube.
6. Lower spring assembly into
upper clevis and insert (13)
(BP3130) 1/2” x 3-1/2” hex
cap screw. Place (10) (BP 3050)
1/2” at washers on both
sides of upper tube. Secure
with (14) (BP3244) 1/2” lock
hex nut. Do not over tighten.
Allow tubes to pivot.
111
5
111
4
111
2
111
6
111
3
111
1
111
8
111
9
11
13
111
9
1.
2.
3.
4.
5.
111
5
6.
14
12
7
NOTE:
(2) (AM2489)
sealer spring
clevis must
be mounted
with the hole
to the front
111
2
Hole to Front
111
8
111
9
11
Front
