BOC Edwards iH600 - View Status

iH Dry Pumping Systems 4-27

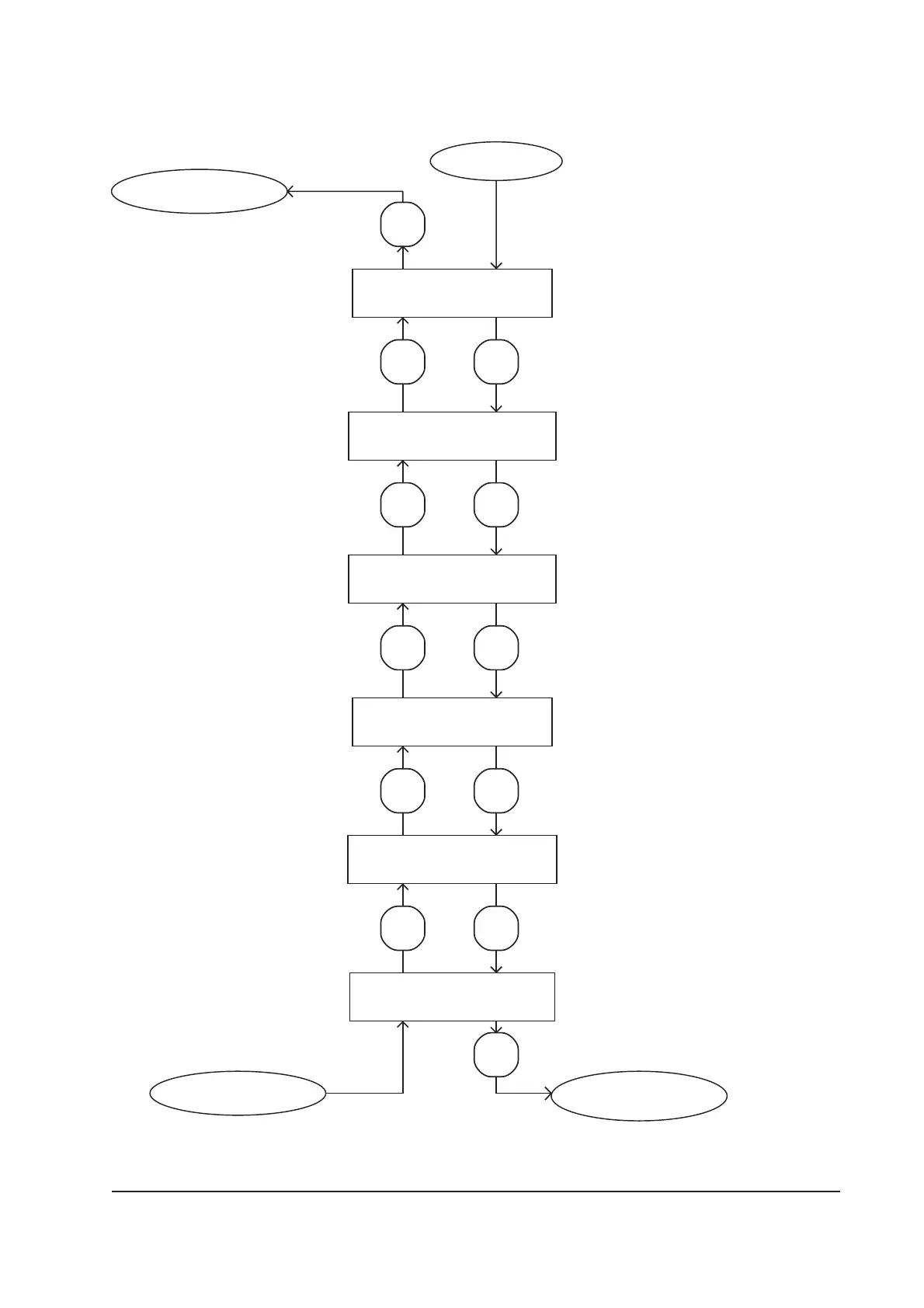

Figure 4-17 - View Status menu: sheet 1 of 2
View Status
DP DD.D A
DP POWER DD.D kW
MB DD.D A
MB POWER DD.D kW
RUN HOURS DDD H
PROCESS D
PROCESS DD
D
MB TEMP DDD.D C
DP MOTOR DDD.D C
EXHAUST <NP>
DP BODY DDD.D C
Next parameter
[4-17/2]
Prev parameter
[4-17/2]
▲
▲
▲
▼
▼
▲
▲
▼
▲
▼
▼
▼
Last parameter
[4-17/2]
☞
On iH80 systems, <NP> will
be shown instead of values.
☞
On iH80 systems, <NP> will
be shown instead of an
MB TEMP value.
☞
If an exhaust temperature
sensor is fitted to the iH
system, a temperature will be
displayed instead of <NP>.
