BOC Edwards iH600 - Typical Pumping Speed and Pump Power Curves for an Ih600 at 60 Hz

iH Dry Pumping Systems 2-11
Note: Discontinuity in curves are as a result of the HCMB pressure relief valve opening and closing

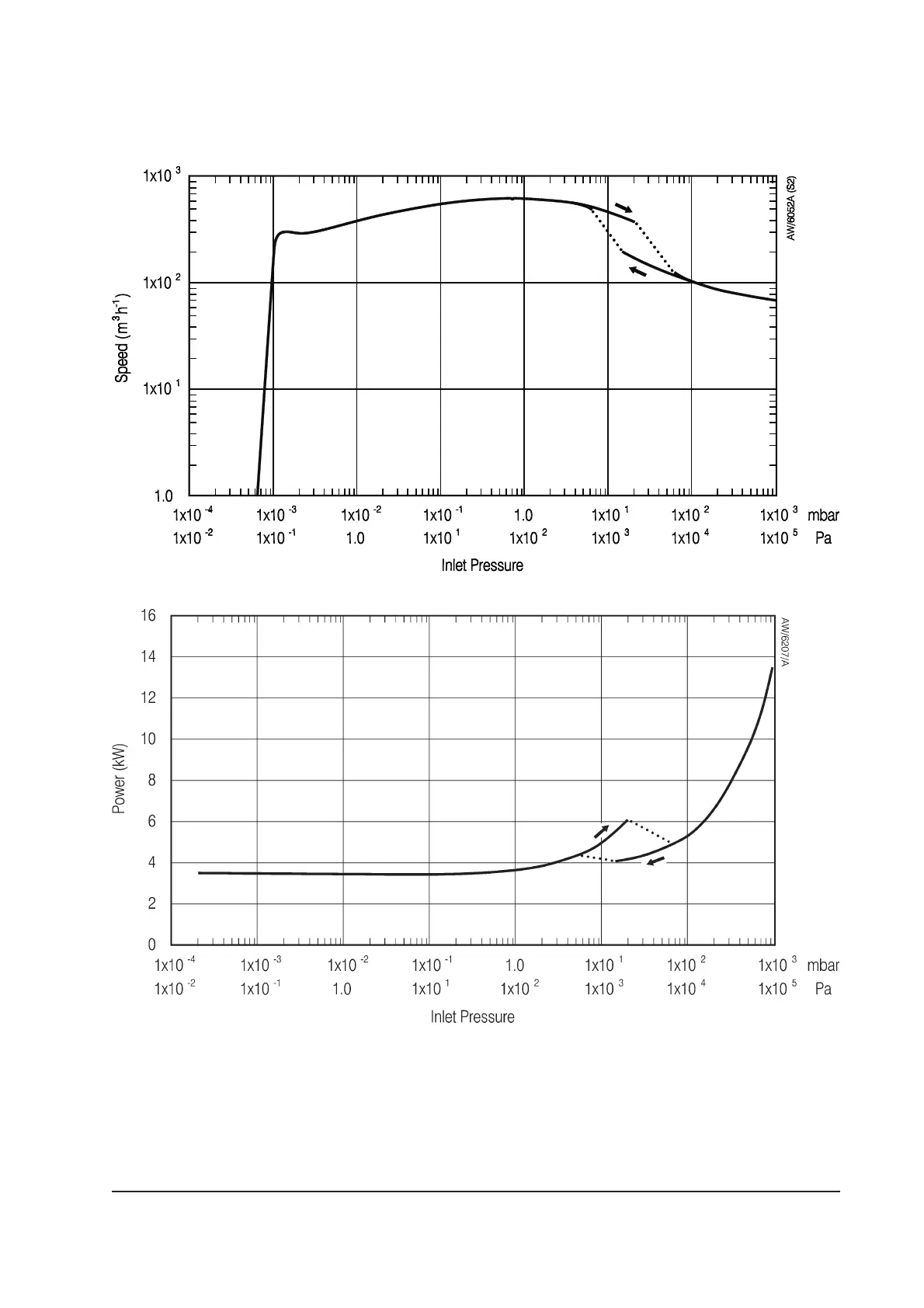

Figure 2-8 - Typical pumping speed and pump power curves for an iH600 at 60Hz
