BOC Edwards iH600 - Typical Pumping Speed and Pump Power Curves for an Ih600 at 50 Hz

2-10 iH Dry Pumping Systems
Note: Discontinuity in curves are as a result of the HCMB pressure relief valve opening and closing

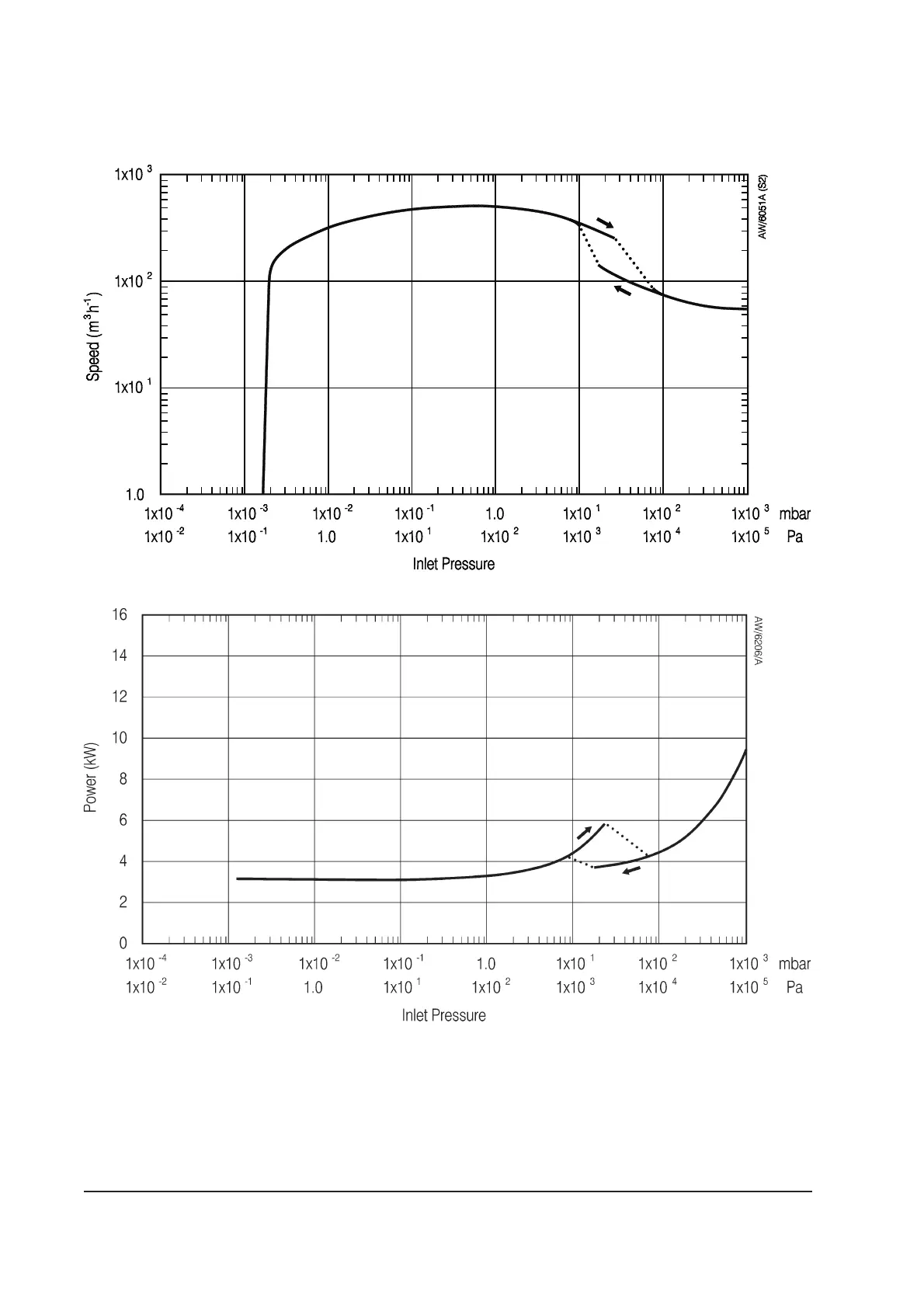

Figure 2-7 - Typical pumping speed and pump power curves for an iH600 at 50Hz
