BOC Edwards iH600 - Reconfigure the Ih System for Your Electrical Supply (Ih80;Ih600 Only)

iH Dry Pumping Systems 3-21

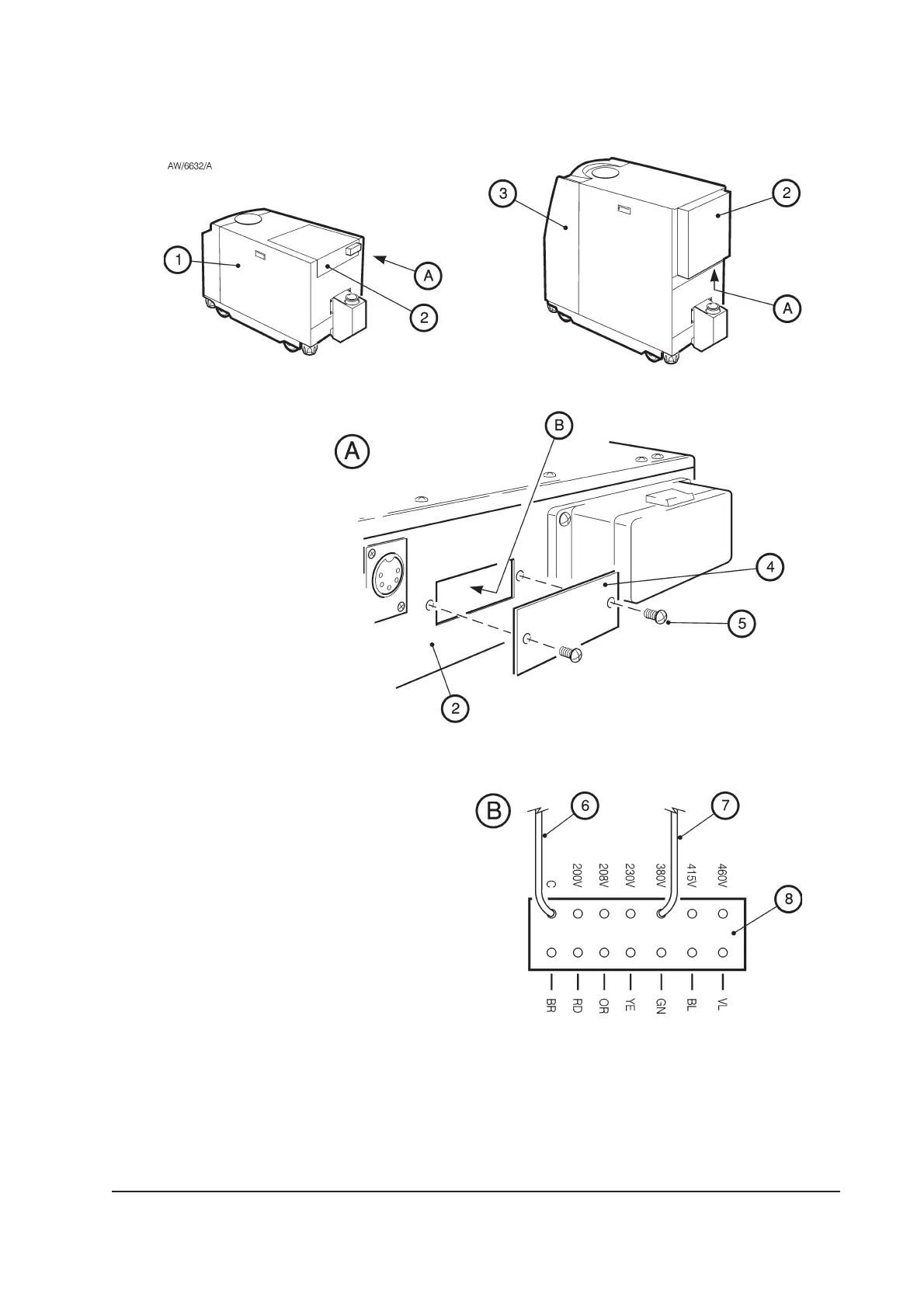

Figure 3-8 - Reconfigure the iH system for your electrical supply (iH80/iH600 only)
1. iH80 system
2. Electrics Box
3. iH600 system
4. Cover
5. Screw
6. Common cable
7. Voltage select cable
8. Terminal-block
