2-6 iH Dry Pumping System

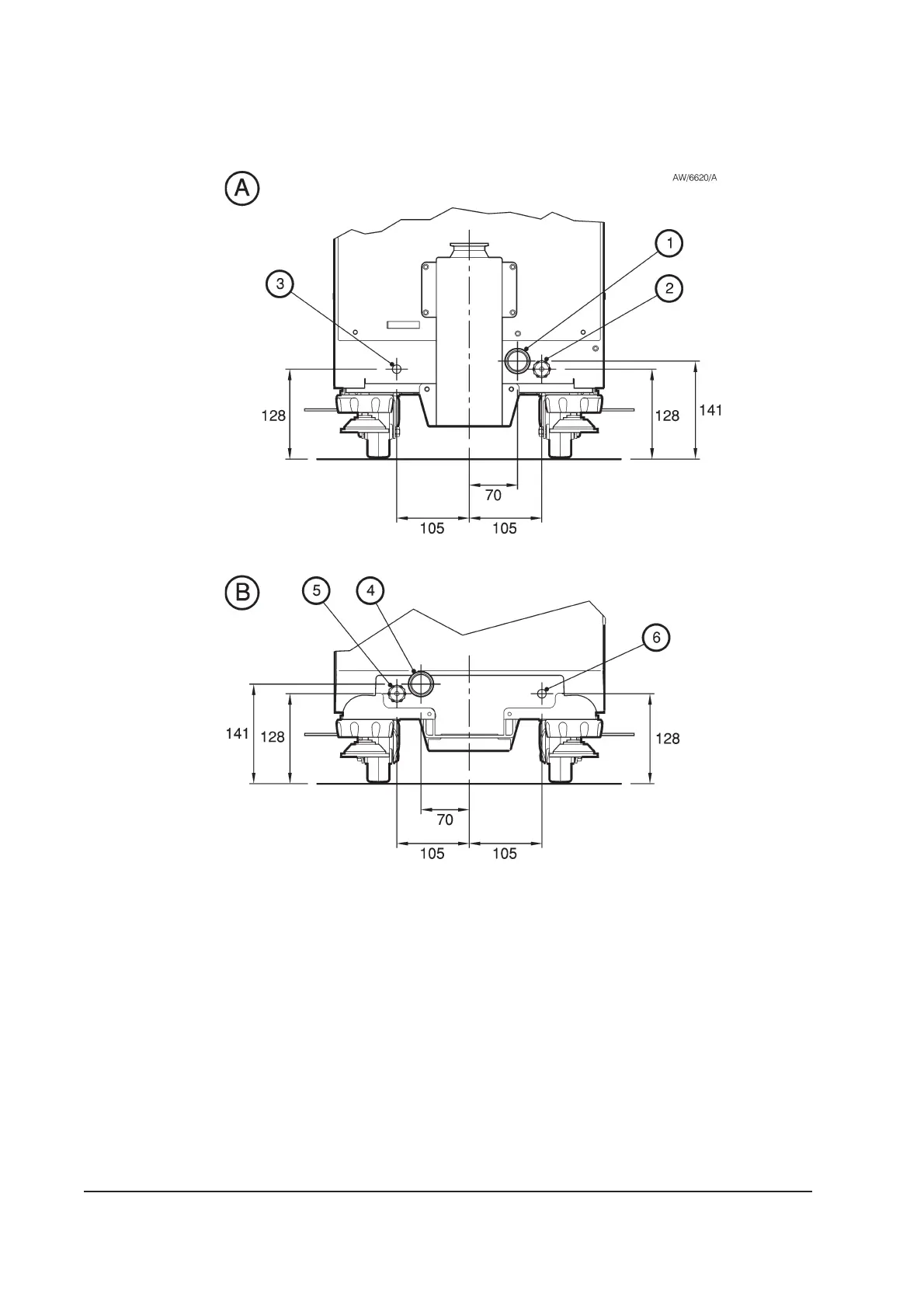

Figure 2-4 - Services connections dimensions (mm)
A As supplied
B Alternative positions
1. Cooling-water outlet (as supplied)
2. Cooling-water inlet (as supplied)
3. Nitrogen inlet (as supplied)
4. Cooling-water outlet (alternative position)
5. Cooling-water inlet (alternative position)
6. Nitrogen inlet (alternative position)
