3-6 iH Dry Pumping Systems

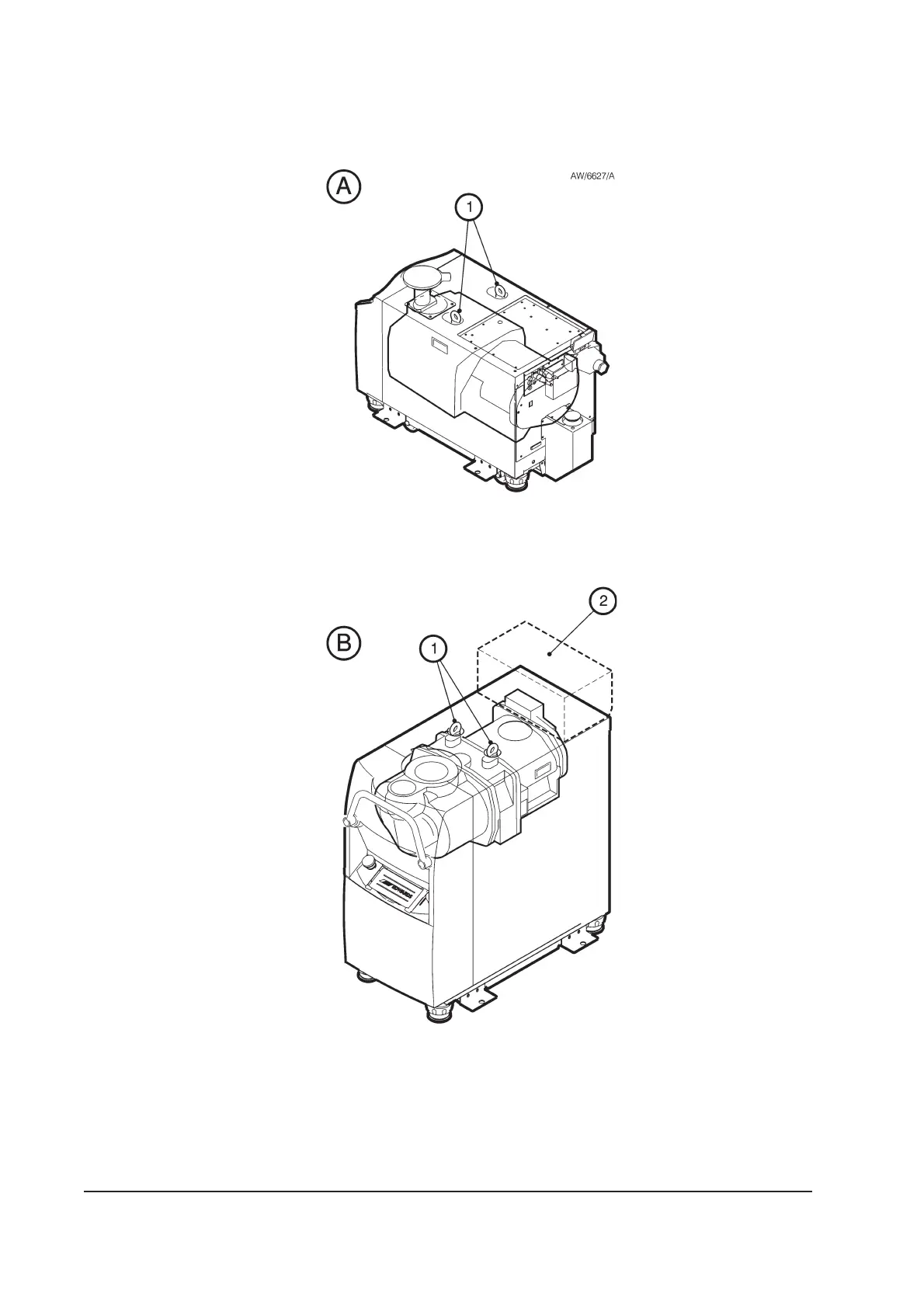

Figure 3-2 - Lifting-bolt positions
A iH80
B iH600
C iH1000
1. Lifting-bolts
2. Inverter enclosure
(iH1000 only)
