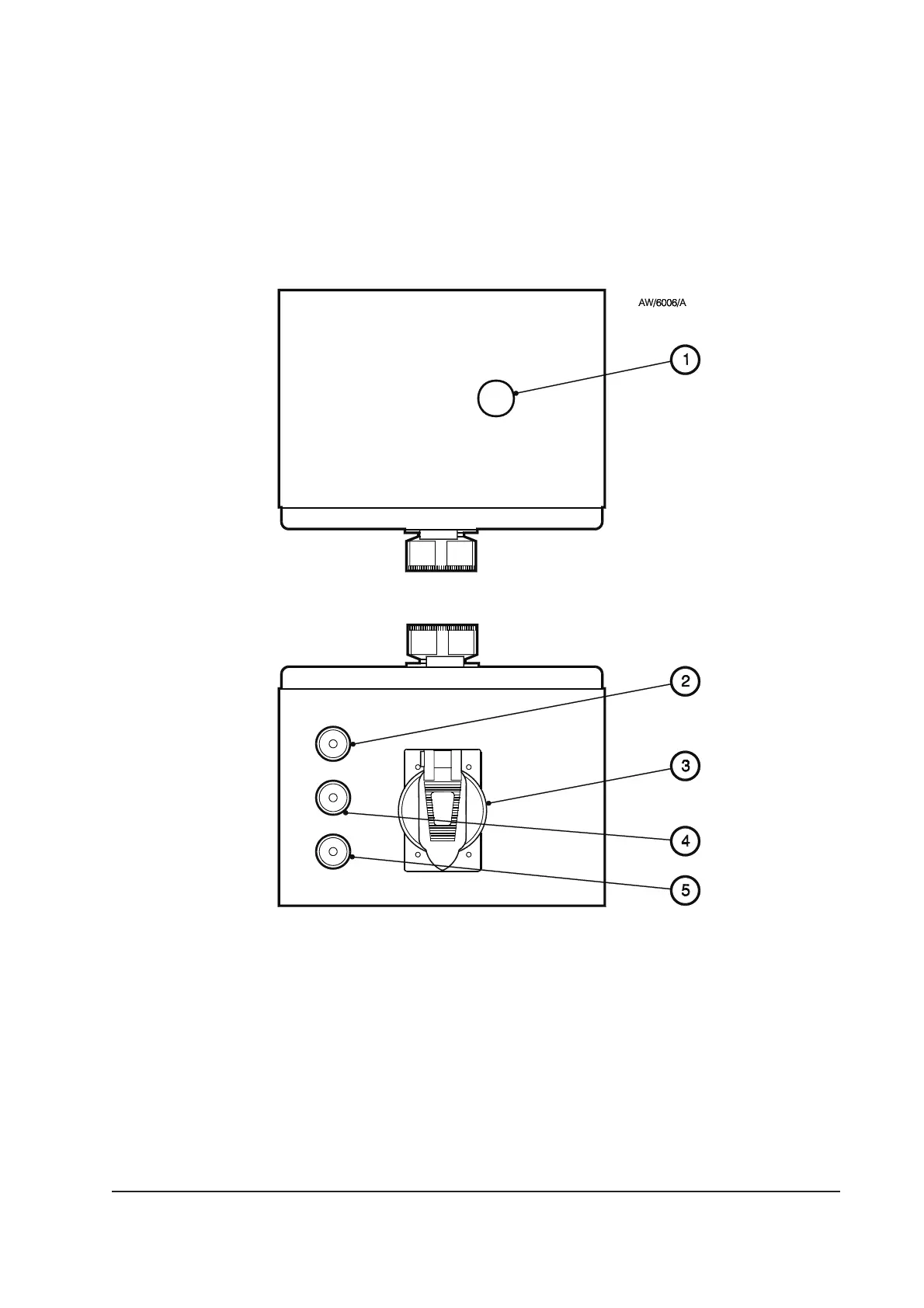

1. Customer supply: 1.36 inch diameter hole
2. EMO cable
3. Dry pump power
4. Photohelic gauge signal cable
5. Photohelic power cable
Figure 3-14 - Disconnect box cable connections
iH Dry Pumping Systems 3-37
