Boeing 787-8 - Page 1088

787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Instruments, Displays -
Electronic Flight Bag - Controls
and Displays
Copyright © The Boeing Company. See title page for details.
10.70.56 D615Z003-TBC
Selection opens the chart for viewing on the Preview Chart page.
Displays the available charts for the selected airport. Selection of a chart (green
diamond) displays the chart on the Chart Clip page.
Selection cancels any changes made and returns to the Chart Clip page.

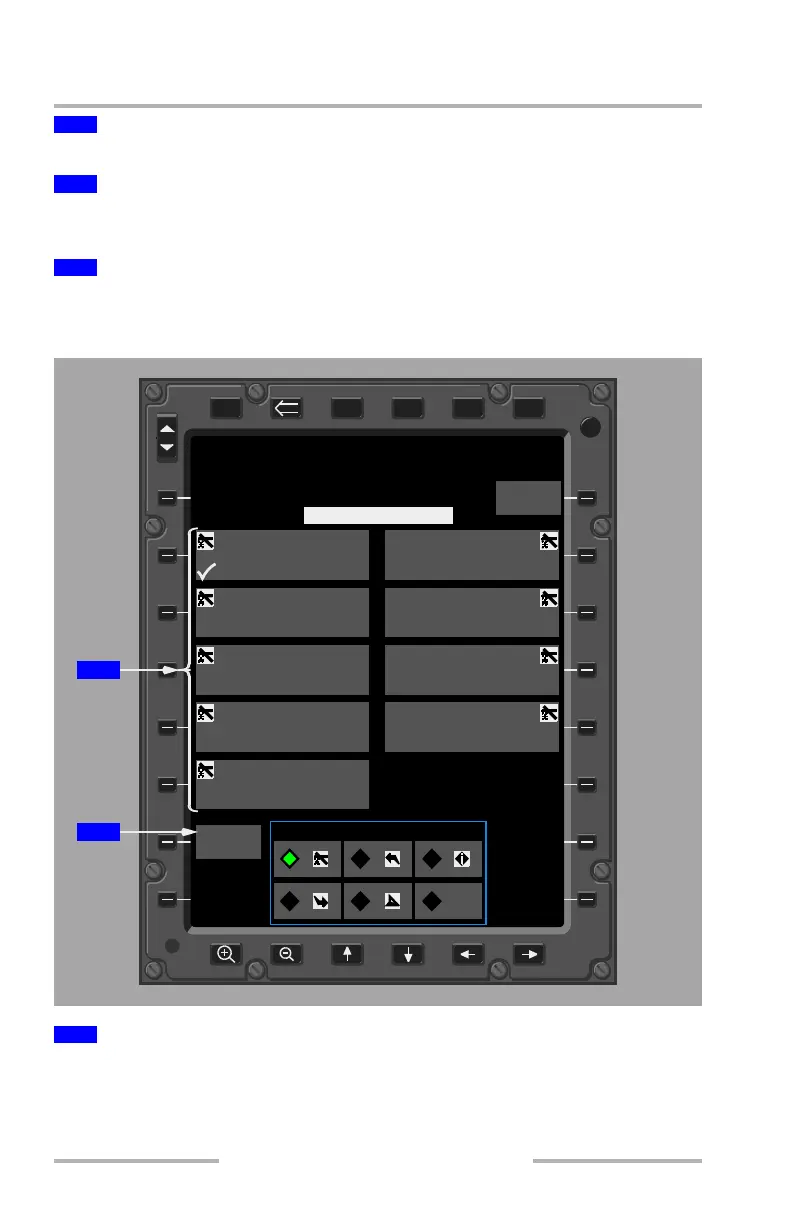

QUICK USE CHART LIST Page
Displays the charts that are available for selection to the Chart Clip. The soft keys
displayed are in direct reference to the CHART TYPES previously selected.
Changing the CHART TYPES selection changes the quick use displayed charts.
2
Preview Chart Soft Key
3
CHART TYPES Field
4
CANCEL CHANGES Soft Key
1
Charts Available for Selection
DSPL
DSPL
PWR
XFRPGDNPGUPMENU ENTER
BRT
DIM
CHART TYPES
ALL
TERMINAL CHARTS
1/1
CHART CLIP
BGSF - ORIGIN
Current Mode: Day
PARKING GATE
COORDINATES CONCOURSE
B (10-9C)
CONCOURSE C PARKING
GATE COORDINATES (10-9D)
LOW VISIBILITY TAXI
ROUTES RWY 08 DEP
(10-9H)
LOW VISIBILITY TAXI
ROUTES RWY 25 DEP
(10-9G)
LOW VISIBILITY TAXI
ROUTES RWY'S 34L & 34R
(10-9F)
TAKE-OFF MINIMUMS(10-9A)
LOW VISIBILITY TAXI
ROUTES RWY'S 35L & 35R
(10-9E)
AIRPORT (10-9)
PARKING GATE
COORDINATES CONCOURSE
A (10-9B)
NIGHT
MODE
EXIT
QUICK
1
2
June 16, 2008
