Selection of a chart for display on the Chart Clip page displays a white check mark
on the soft key.
Use the back arrow bezel key to return to the Chart Clip page.
Selections exits the Quick Use page and returns to the Chart Clip page.

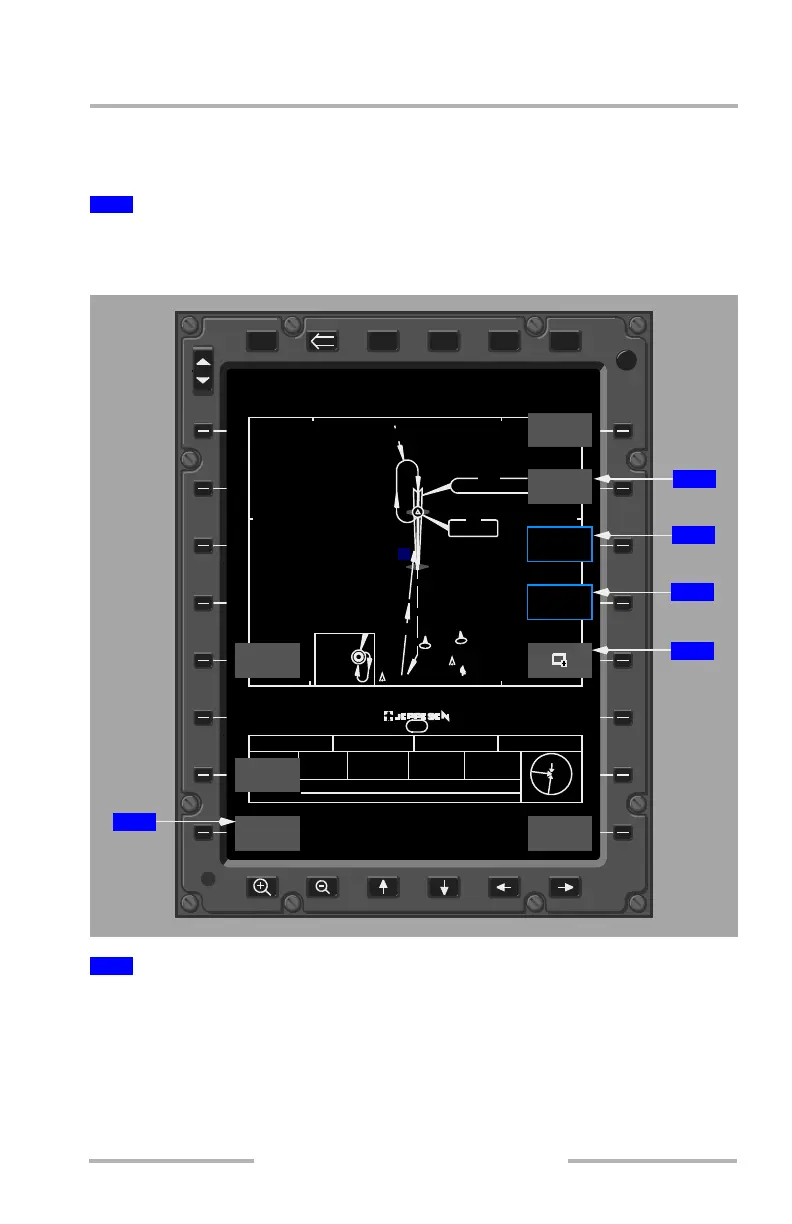

CHARTS View Page
Selection cycles the bottom display through the chart’s frames:
• Briefing Strip™, or
• Profile, or
•Minimums
2
EXIT QUICK Soft Key
