787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Flight Management, Navigation -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
11.10.12 D615Z003-TBC

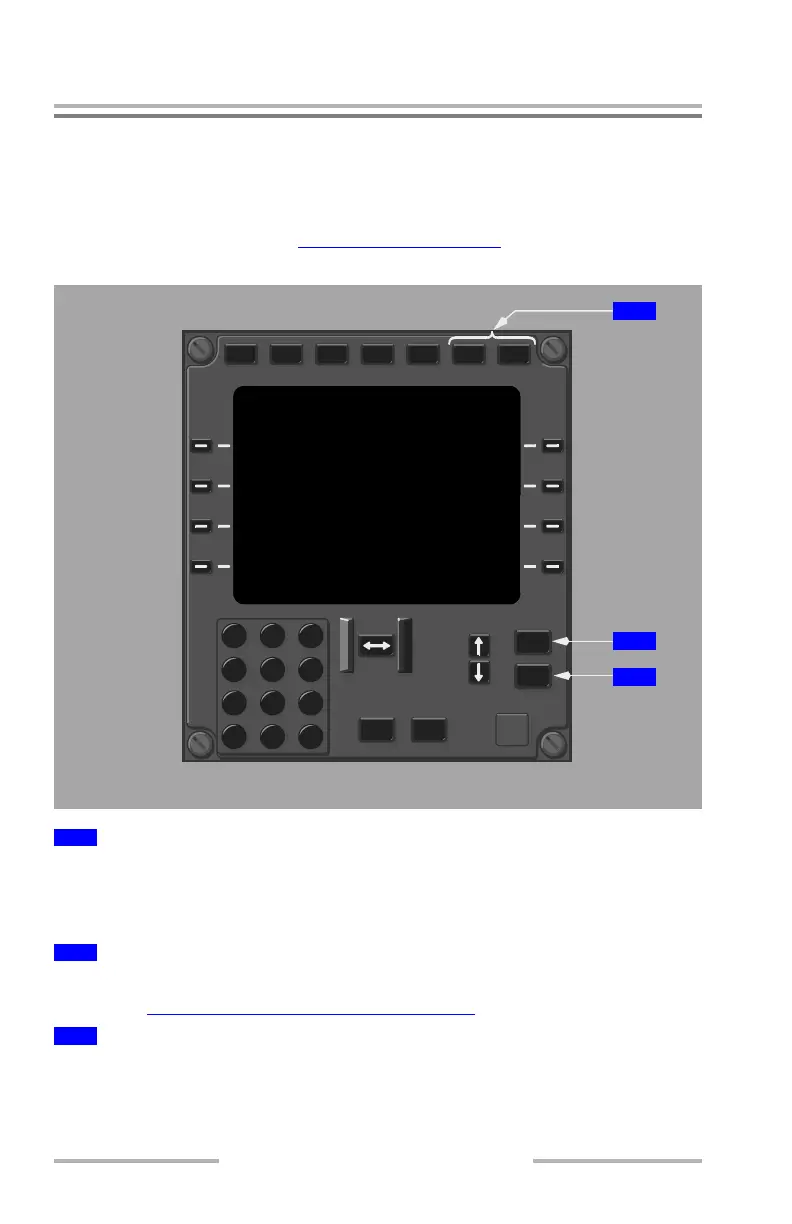

Tuning and Control Panel (TCP)
The transponder, weather radar and alternate navigation functions may be
accessed from any of the three Tuning and Control Panels (TCPs) located on the
aft aisle stand. The transponder additionally uses the Alerting and Transponder
Control Panel (ATP). (Refer to Tuning and Control Panel
in Chapter 5, Section 10,
for additional information.)
Push – selects desired mode page for display:
• WXR – displays weather radar page
• XPDR – displays transponder page
Push – selects the ALTN NAV (alternate navigation) page. (Refer to Chapter 11,
Section 50, Alternate Navigation System Description
, for additional information.)
Push – selects the MENU page.
1
Mode Select Keys
2
Navigation (NAV) Key
3
Menu Key
STBY
PANEL OFF
XFR
S
T
E
P
MENU
NAV
NEXT
PAGE
PREV
PAGE
CLR
0
.
987
654
32
1
XPDRWXRGPWSCABSATHFVHF
OFF
AFT AISLE STAND PANEL
1
2
3
February 13, 2009
