OFF or a line is visible –
• the top of the switch is blank
• a line indicates no label in this portion of the switch

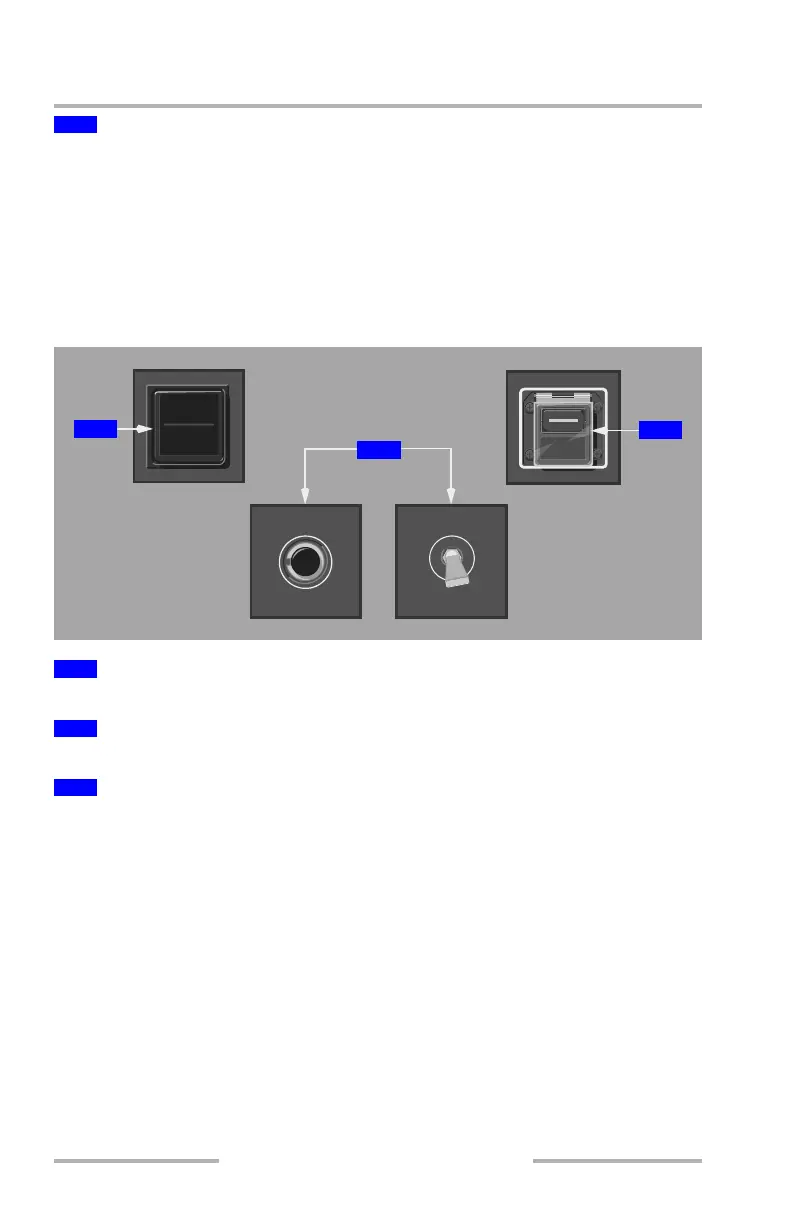

Momentary Action Switches
Momentary action switches are spring loaded to the extended position. They are
used to activate or deactivate systems or to reset system logic. The switch display
indicates system status.
Push – the switch resets the master lights and aural alerts.
Push – activates the system. Push and hold keeps some systems activated.
Push – activates or deactivates the system.
2
Switch is OFF
1
Push to Reset
2
System Operation
3
System Selection
CAUTION
WARNING
CANCEL
3
1
2
