Push –
• Illuminated (red):
• all passenger cabin and exterior emergency lights illuminate
• bypasses the flight deck emergency lights switch
• Extinguished:
• all passenger cabin and exterior emergency lights extinguish
Floor Lights Switch
OFF – the flight deck floor lights are not illuminated.
BRT – the floor lights are illuminated bright.
DIM – the floor lights are illuminated dim.
Aisle Stand Panel/Flood Light Control
Rotate – adjusts the aisle stand instrument panel light brightness.
Rotate – adjusts the aisle stand flood light brightness.
1

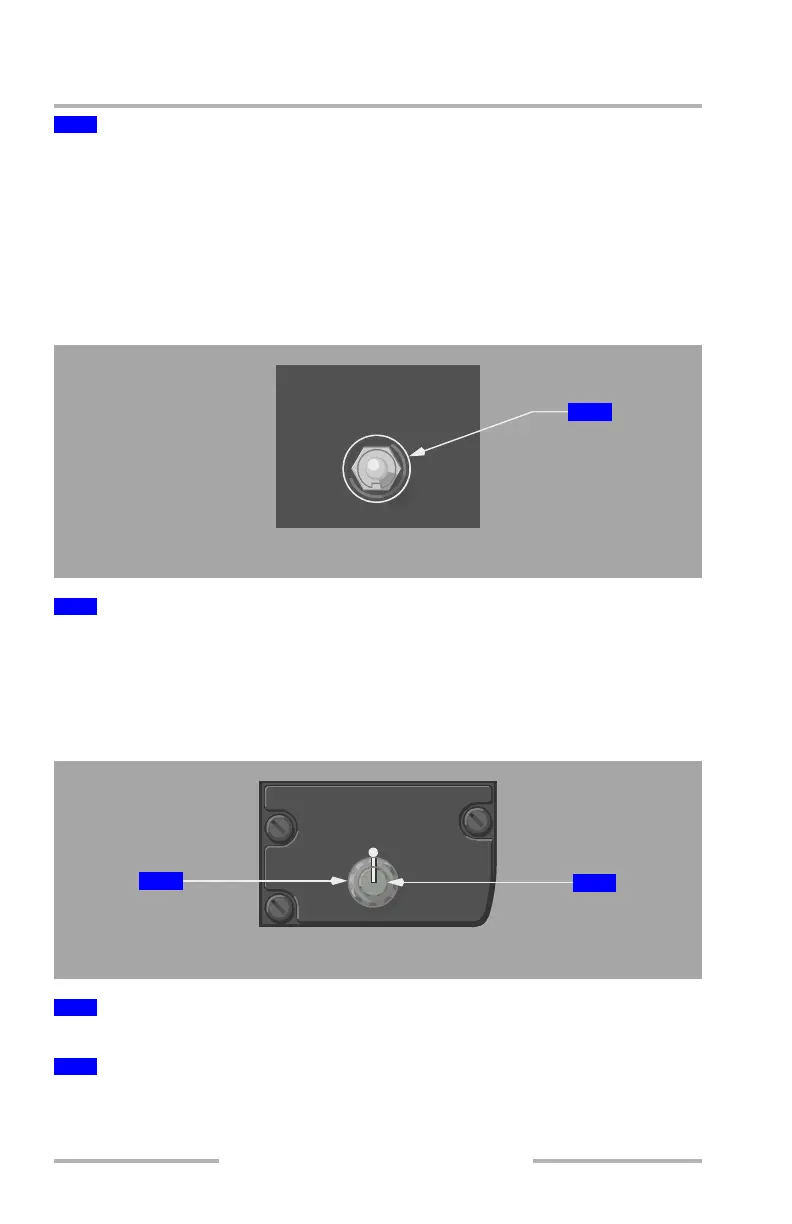

Passenger Cabin Emergency (EMER) LIGHTS Switch
1
FLOOR LIGHTS Switch
1
AISLE STAND Panel (PNL) Light Control (outer)
2
AISLE STAND FLOOD Light Control (inner)
FLOOR LIGHTS
OFF
BRT DIM
AFT AISLE STAND
1
AISLE STAND
PNL/FLOOD
AFT AISLE STAND
1
2
