787 Flight Crew Operations Manual
DO NOT USE FOR FLIGHT
Airplane General, Emergency
Equipment, Doors, Windows -
Controls and Indicators
Copyright © The Boeing Company. See title page for details.
D615Z003-TBC 1.30.9

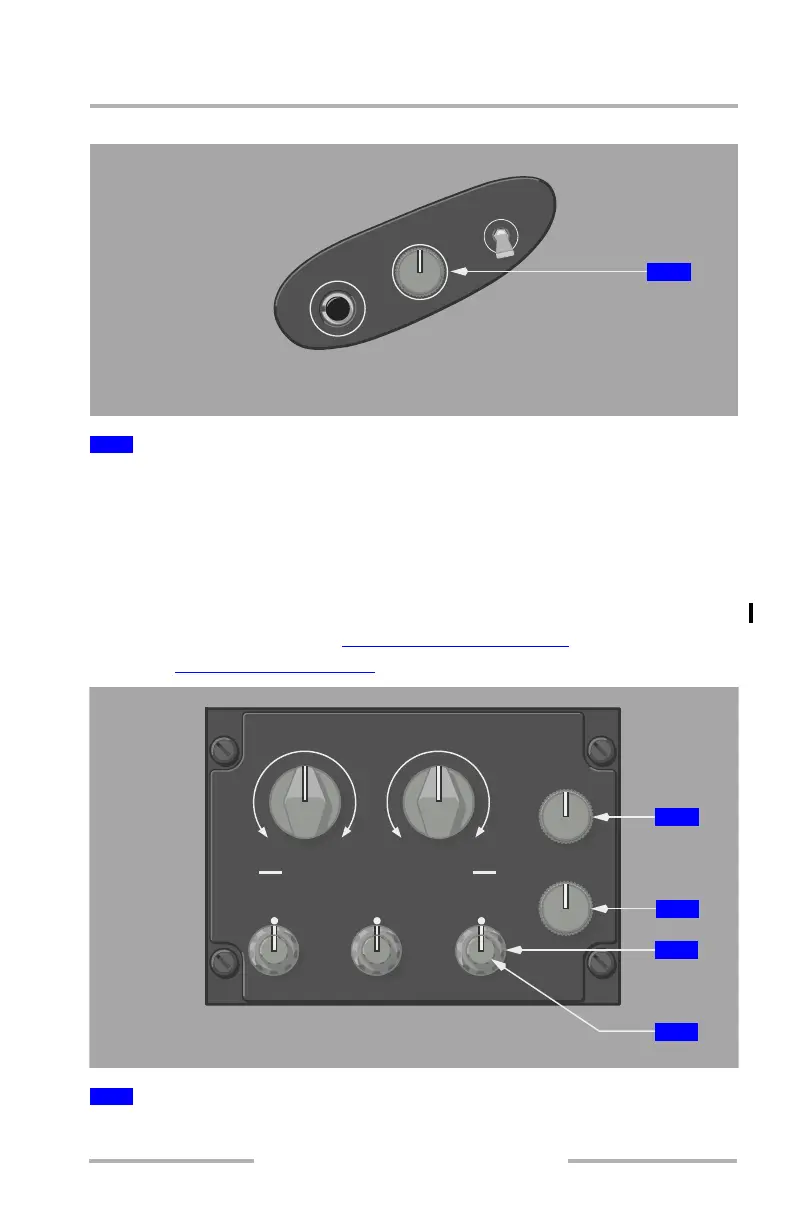

Map Light Control
Pull – on.
Push – off.
Rotate – adjusts map light brightness.
Forward Panel Brightness Controls
For additional information, refer to:
• Forward / Lower Displays – Display Brightness Controls
, Ch. 10, Sec. 10
• HUD – HUD Brightness Control
, Ch. 10, Sec. 12
Pull – on.
1
MAP Light Control
1
CHART Light Control
MIC
CLOCK
MAP
GLARESHIELD PANEL
1
HEATERS
SHOULDER FOOT
CHART
WORK TABLE
FWD PANEL BRIGHTNESS
LOW
OUTBD DSPL/
CONTRAST
INBD DSPL/
CONTRAST
PNL/
FLOOD
HIGH LOW HIGH
SIDEWALL PANEL
3
4
1
2
